10.2" e-Paper Display (G) – 960x640, Quad-Color, SPI with driver Hat

The Waveshare 10.2" e-Paper Display (G) is a large-format E-Ink screen with 960×640 resolution and quad-colour output — black, white, red, and yellow. Like real paper, it requires no backlight and retains its last displayed image without any power draw, making it ideal for signage and low-power applications.

The display communicates via 3-wire or 4-wire SPI and is compatible with Raspberry Pi, Jetson Nano, Arduino, STM32, and other microcontrollers. An optional driver HAT (selectable at purchase) adds onboard voltage translation for seamless 3.3V/5V operation.

Key Features

• 10.2" E-Ink Panel – 960×640 resolution with 0.2245×0.2245mm dot pitch for crisp, detailed output
• Quad-Colour Display – Black, white, red, and yellow for versatile visual designs
• Paper-Like Viewing – No backlight required; comfortable reading under ambient light with >170° viewing angle
• Ultra-Low Power – Retains displayed content without electricity; standby current below 0.01μA
• 27-Second Full Refresh – Complete screen update in 27 seconds with less than 100mW refresh power
• SPI Interface – 3-wire and 4-wire SPI for broad microcontroller compatibility

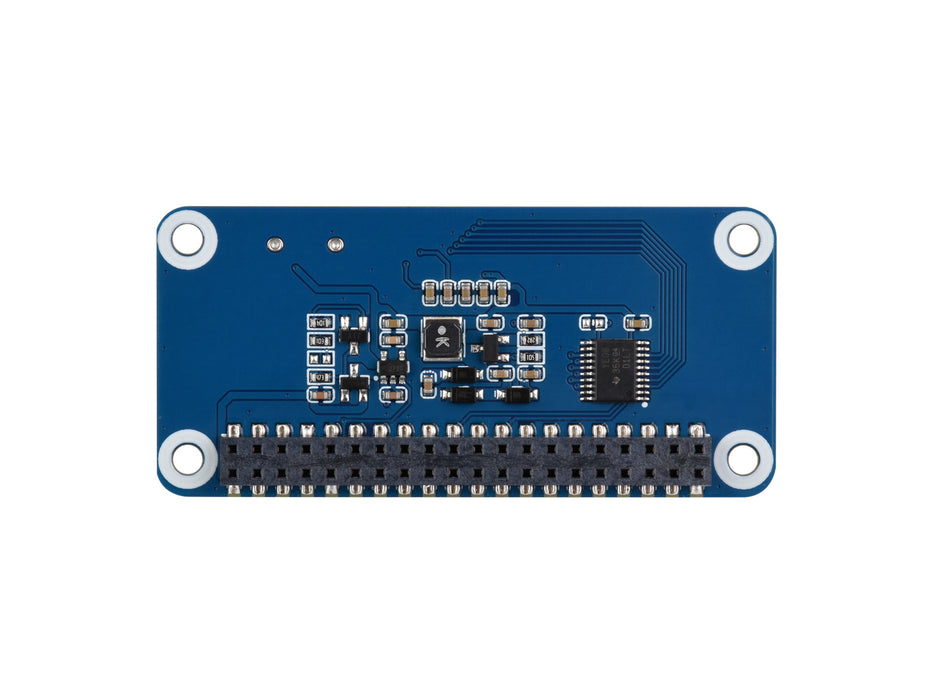

• Voltage Translation – Driver board supports both 3.3V and 5V logic levels
• 2-Level Greyscale – Per-colour greyscale capability

Specifications

• Operating Voltage – 3.3V (raw display) / 3.3V–5V (with driver board)
• Display Dimensions – 224.00 × 157.00 × 1.00mm (raw panel)
• Driver Board Dimensions – 65.00 × 30.50mm (optional HAT)
• Interface – 3-wire SPI / 4-wire SPI

Ideal For

• Retail price tags and digital shelf labels
• Asset tracking and inventory tagging
• Industrial instrumentation displays
• Conference and event name badges
• Low-power IoT signage and dashboards

Package Contents

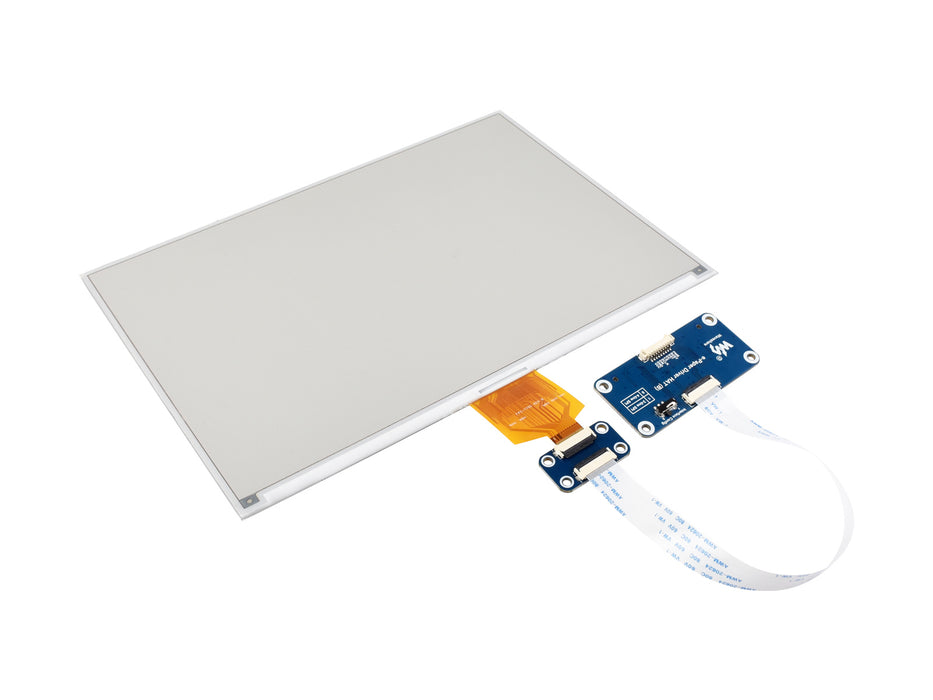

• 1× 10.2" e-Paper (G) display

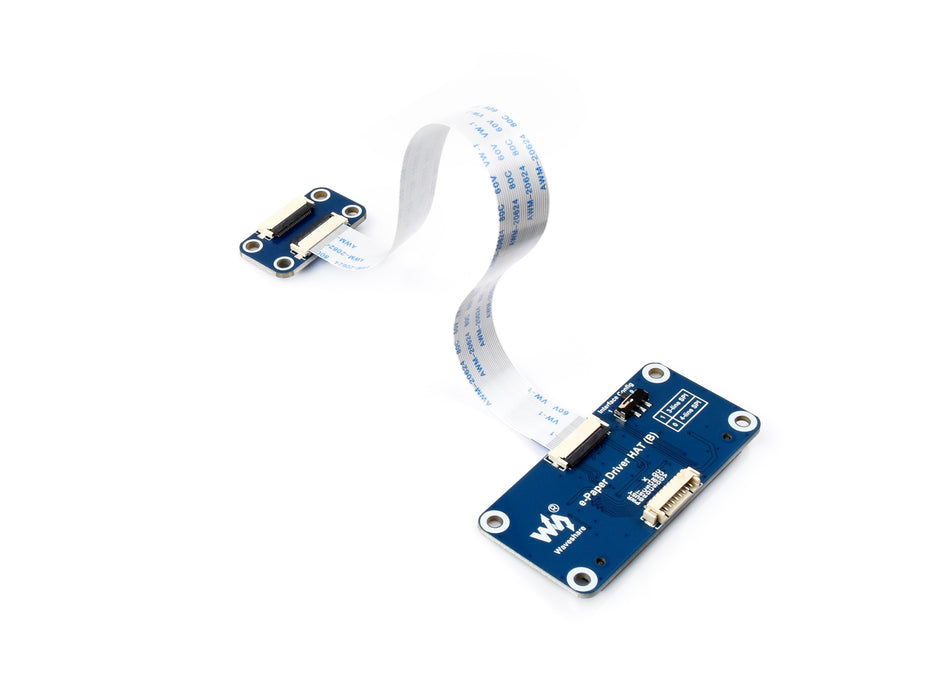

• 1× MX1.25 9-pin cable
• 1× Screw pack

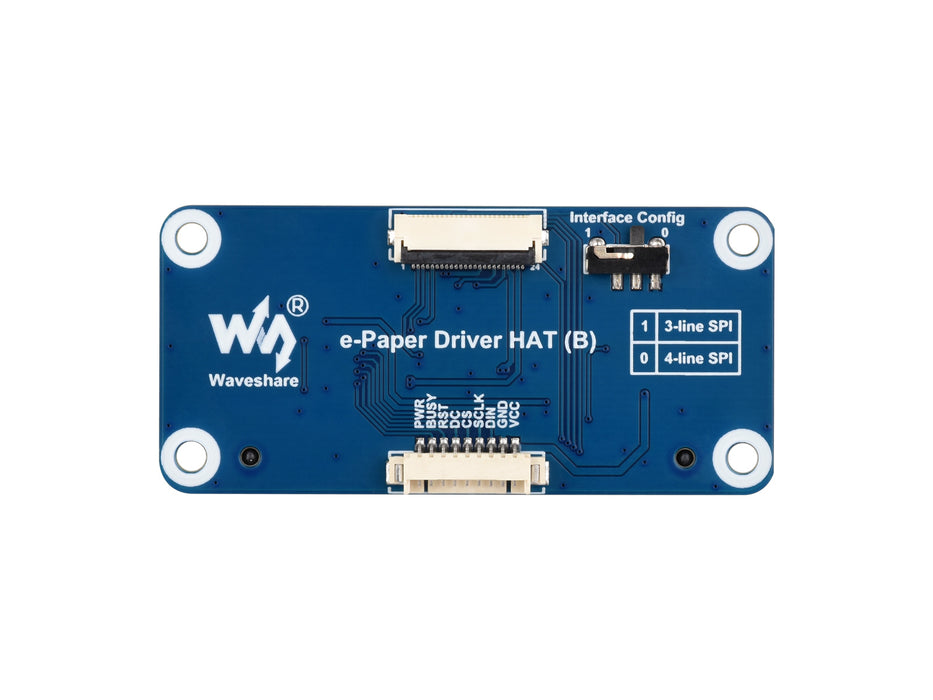

• 1× e-Paper Driver HAT (optional — select at purchase)

Resources

• Waveshare Wiki – 10.2" e-Paper (G)
