Yellow Surface Mount LED - 1206
· MPN: COM-17735

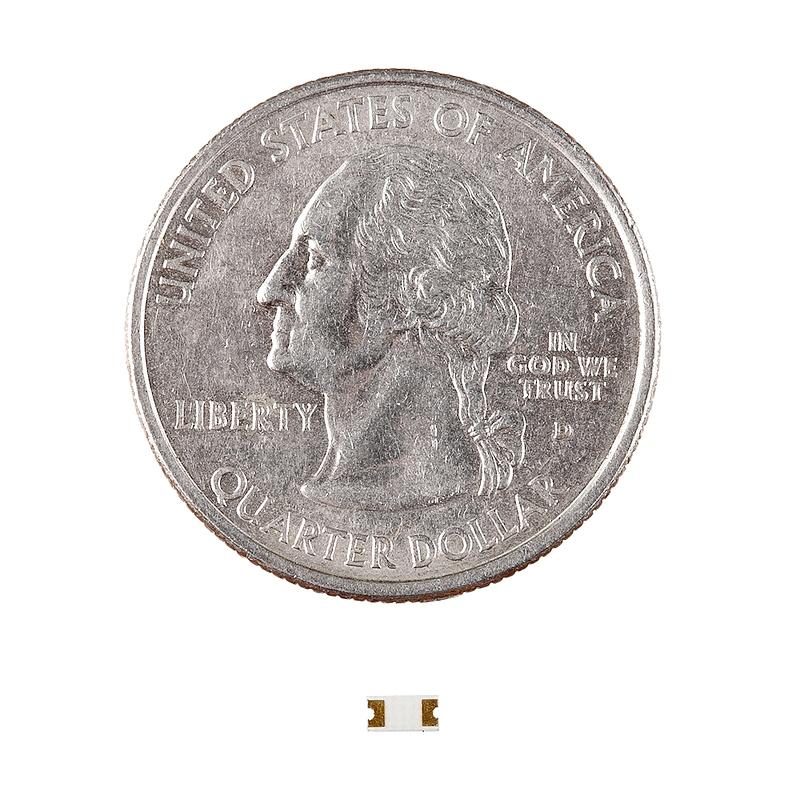

This compact yellow LED is a basic surface-mount indicator in the common 1206 package size. It is the same yellow LED used on SparkFun RedBoard products and ...
This compact yellow LED is a basic surface-mount indicator in the common 1206 package size. It is the same yellow LED used on SparkFun RedBoard products and suits general PCB indicator, status and signalling applications.

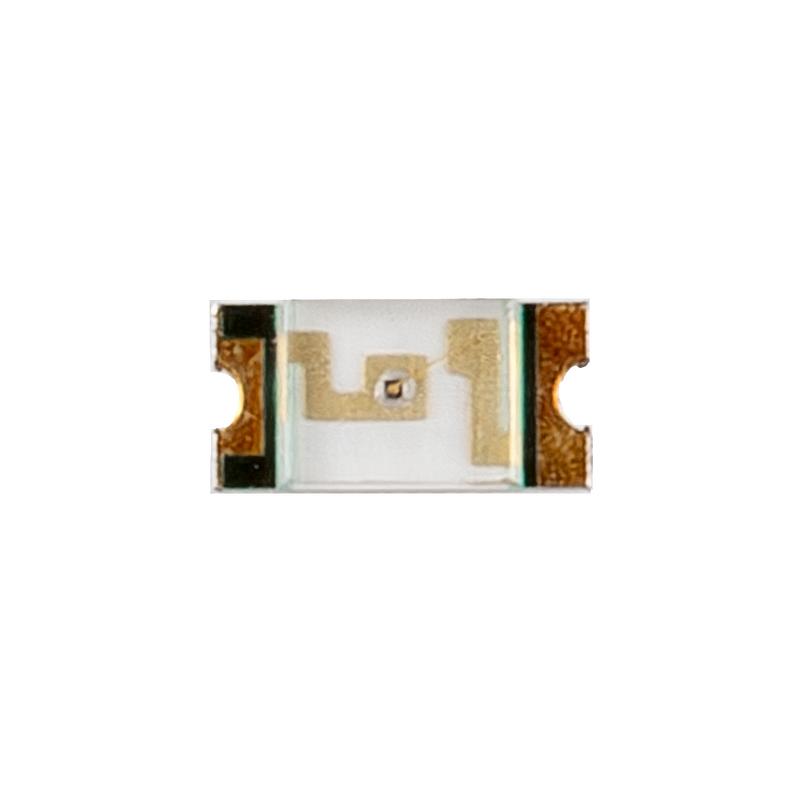

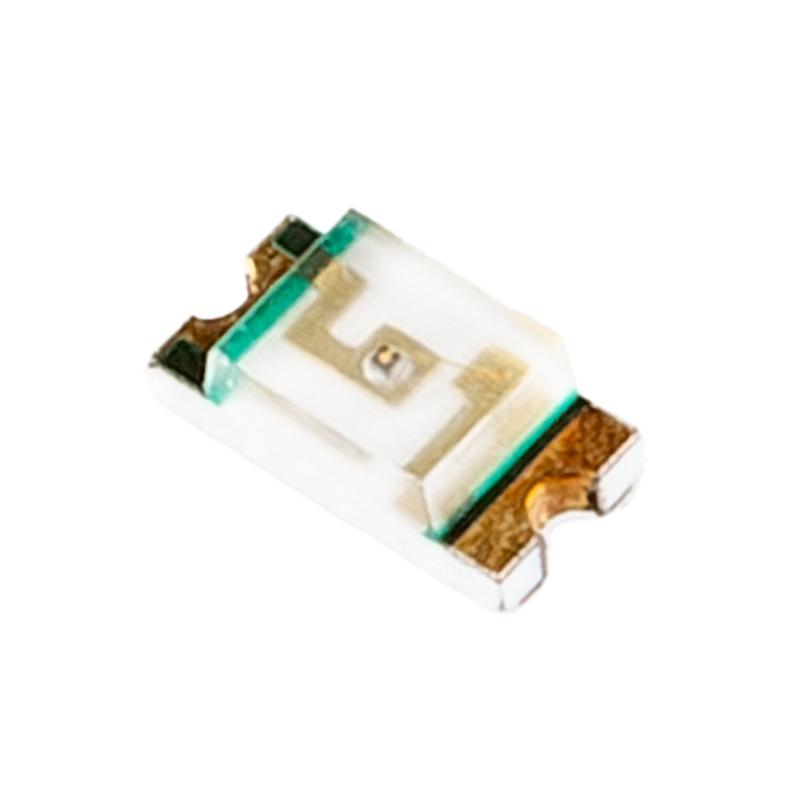

The LED has a clear, colourless rectangular flat-top lens and is designed for surface-mount assembly. It offers a wide viewing angle, making it useful where visibility from off-axis positions matters.
A datasheet is available from the manufacturer for footprint, soldering and detailed electrical reference.
Specifications:
- Color: Yellow
- Millicandela Rating: 70mcd
- Lens Style: Rectangle with Flat Top
- Lens Color: Colorless
- Lens Transparency: Clear
- Lens Size: 2.06mm x 1.60mm
- Voltage - Forward (Vf) (Typ): 2.1V
- Current - Test: 20mA
- Viewing Angle: 130°

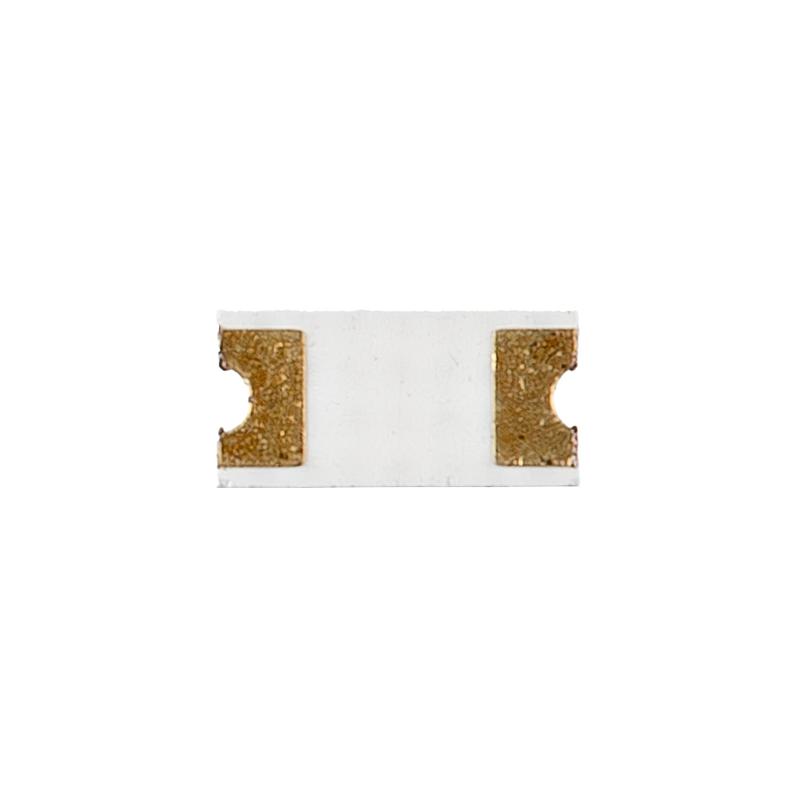

- Mounting Type: Surface Mount
- Wavelength - Dominant: 591nm
- Wavelength - Peak: 588nm
- Dimensions: 3.20 L x 1.60mm W
- Height (Max): 1.10mm
A handy choice for custom PCBs, repairs and maker projects that need a small yellow surface-mount status LED.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
