Voltage Regulator - Adjustable LM1117 SMD
This is a 1A Adjustable SOT-223 voltage regulator capable of outputting 1.2V to 18V. The LM1117 uses the same pin-out and setup as the popular LM317 adjus...

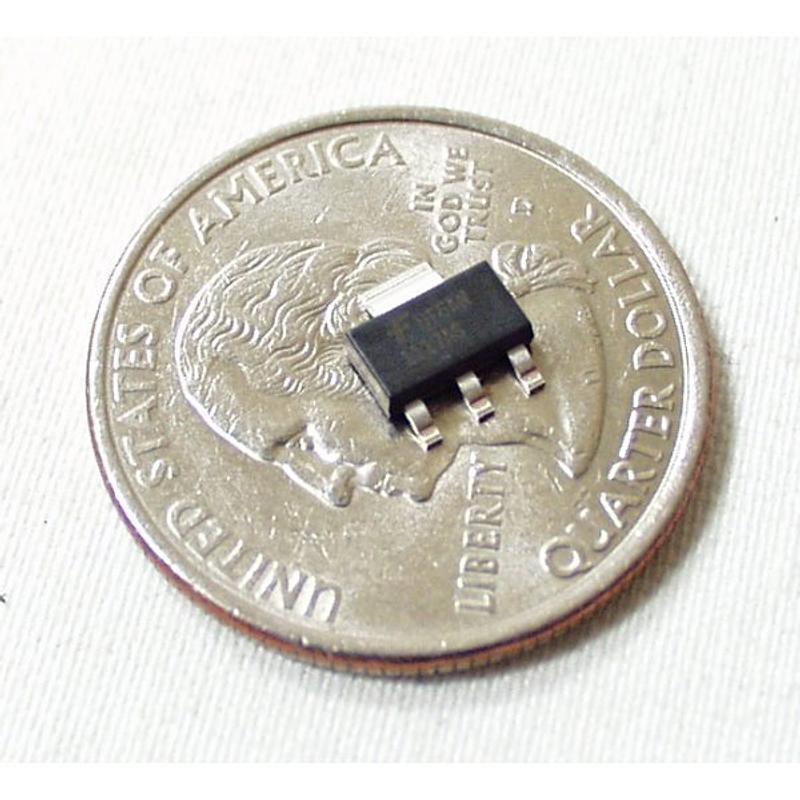

This is a 1A Adjustable SOT-223 voltage regulator capable of outputting 1.2V to 18V. The LM1117 uses the same pin-out and setup as the popular LM317 adjustable regulator, contained in a handy surface mount package. Requires two external resistors to function.
- FAN1117A.pdf
- SFE Eagle Library has this part!
- Check out our Unregulated Power Supply Tutorial
