USB Female Type B Connector

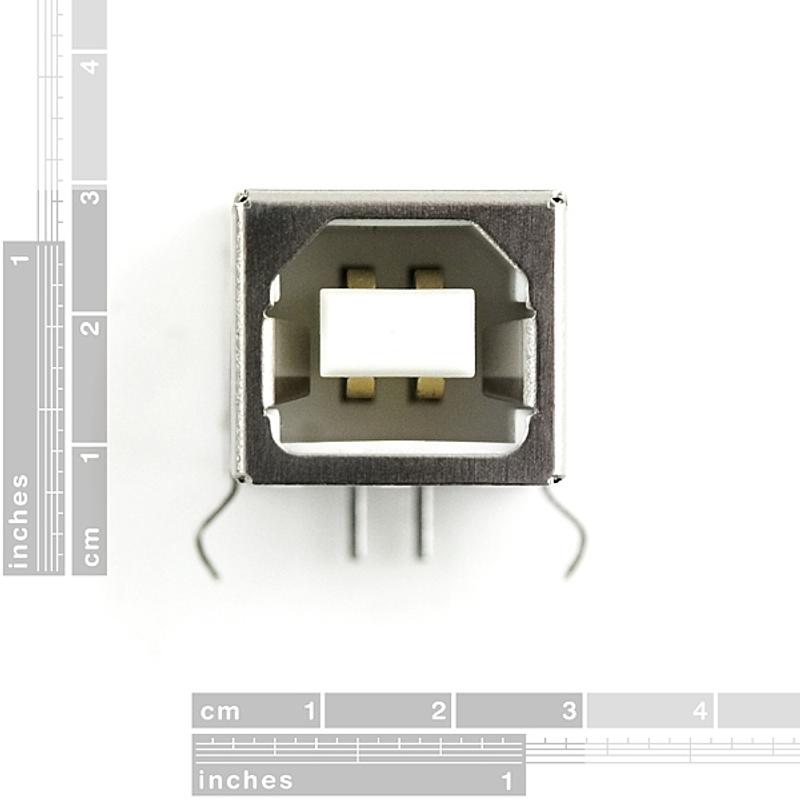

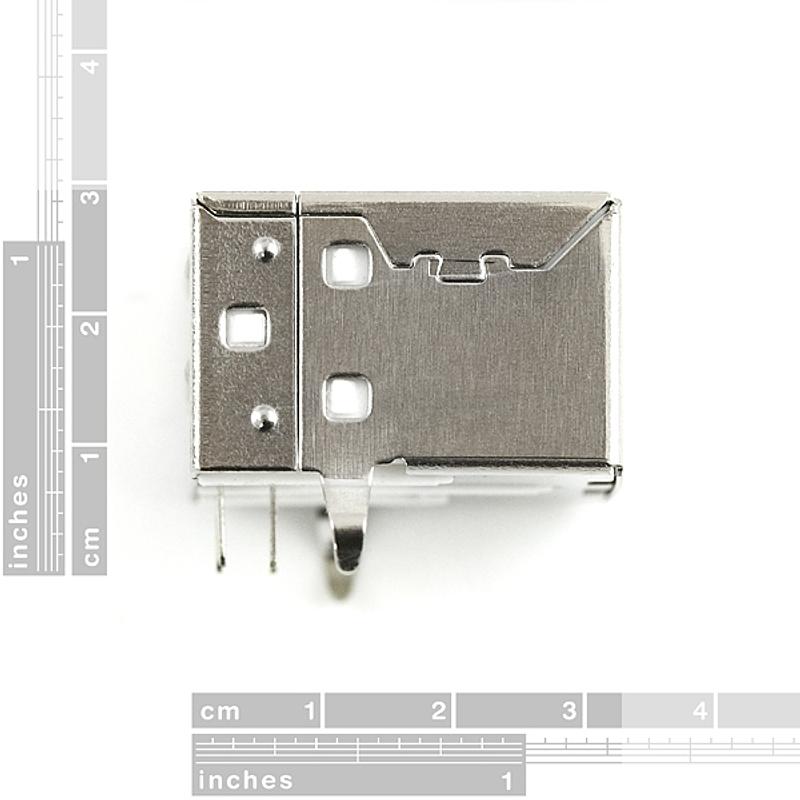

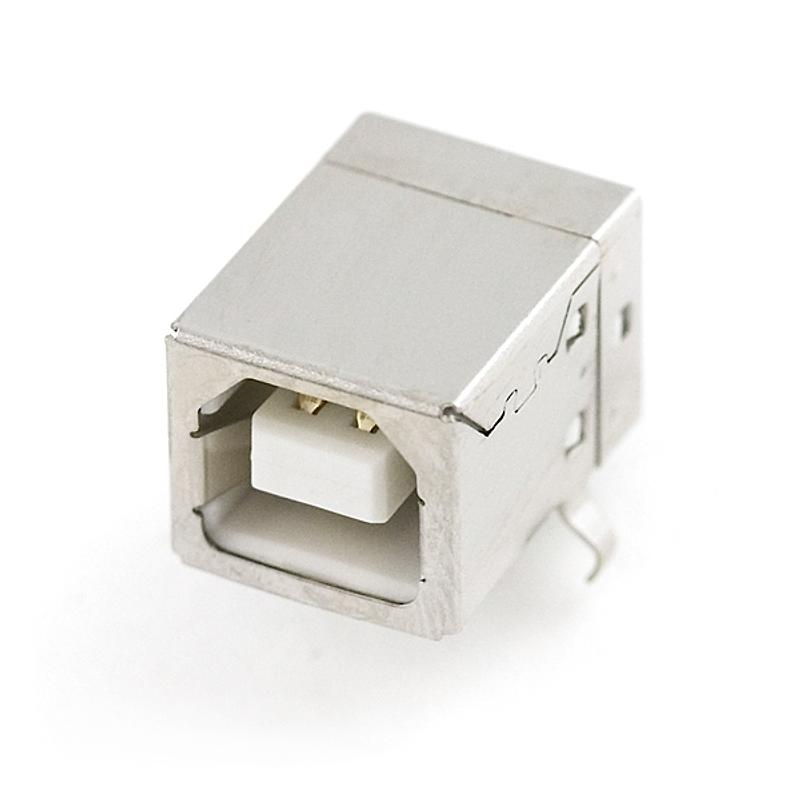

A USB Type-B female connector with 0.1" pin spacing, suitable for use on development boards and perfboard. The four connection pins fit standard 2.54 mm pitc...
Get notified when back in stock
A USB Type-B female connector with 0.1" pin spacing, suitable for use on development boards and perfboard. The four connection pins fit standard 2.54 mm pitch headers. The two support posts can be accommodated by drilling 80 mil holes, or trimmed off entirely for a flush fit.
Specifications
- Connector Type – USB Type-B, female
- Pin Spacing – 0.1" (2.54 mm)
- Pins – 4 connection pins + 2 support posts
- Mounting – Through-hole
