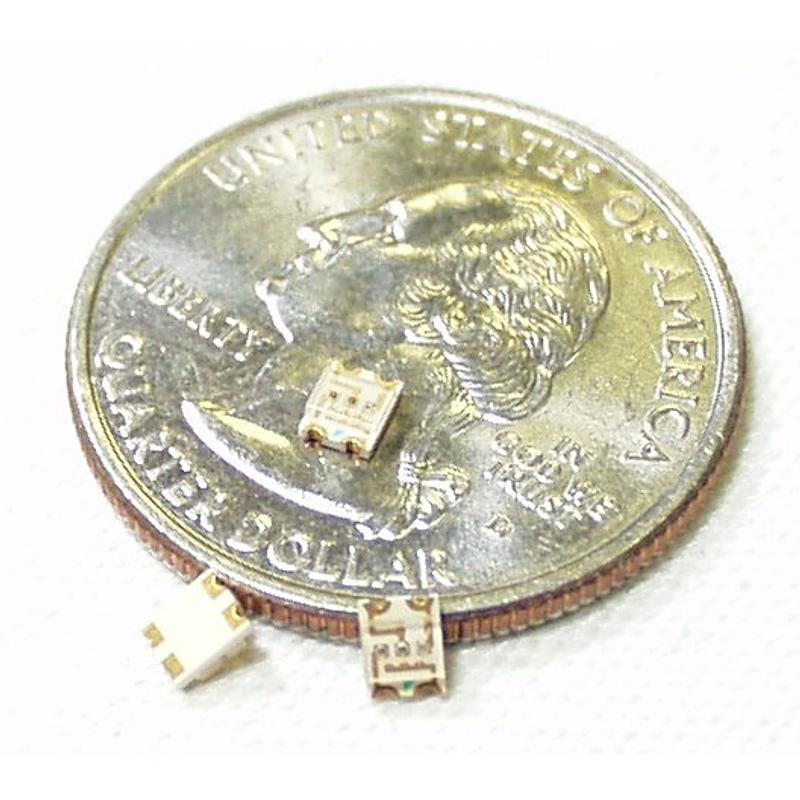

Triple Output LED RGB - SMD

$3.47

Part Number:  SF-COM-07844
Brand:  SparkFun Australia

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below. Iv (Typical): Red: 81mcd Green: 130mcd Blue: 54mcd Vf (Typical): Red: 2.0V Green: 3.5V Blue: 3.5V Wavelength (λD - nm): Red:...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

This is the very popular RGB combo but in SMD form. These units have four pads with a common anode configuration. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors! Simple breakout board available below.

Iv (Typical):

  • Red: 81mcd
  • Green: 130mcd
  • Blue: 54mcd

Vf (Typical):

  • Red: 2.0V
  • Green: 3.5V
  • Blue: 3.5V

Wavelength (λD - nm):

  • Red: 615nm
  • Green: 530nm
  • Blue: 470nm

Documents:
