Thermocouple Connector - PCC-SMP-K
This Thermocouple Connector is perfect for bridging the gap between Type-K thermocouples with standard connectors with a PCB. This little connector is act...
Get notified when back in stock

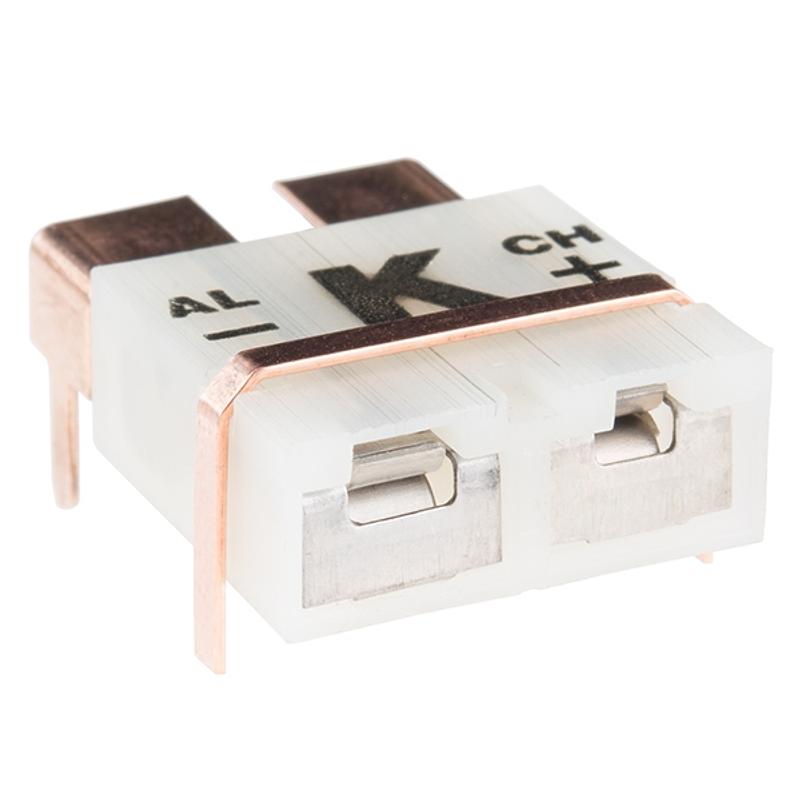

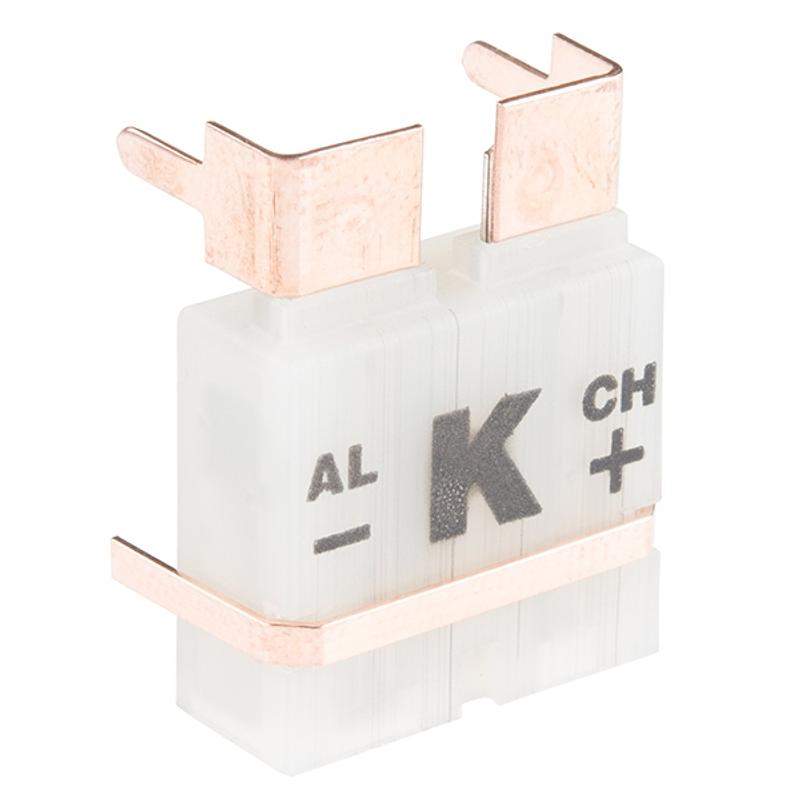

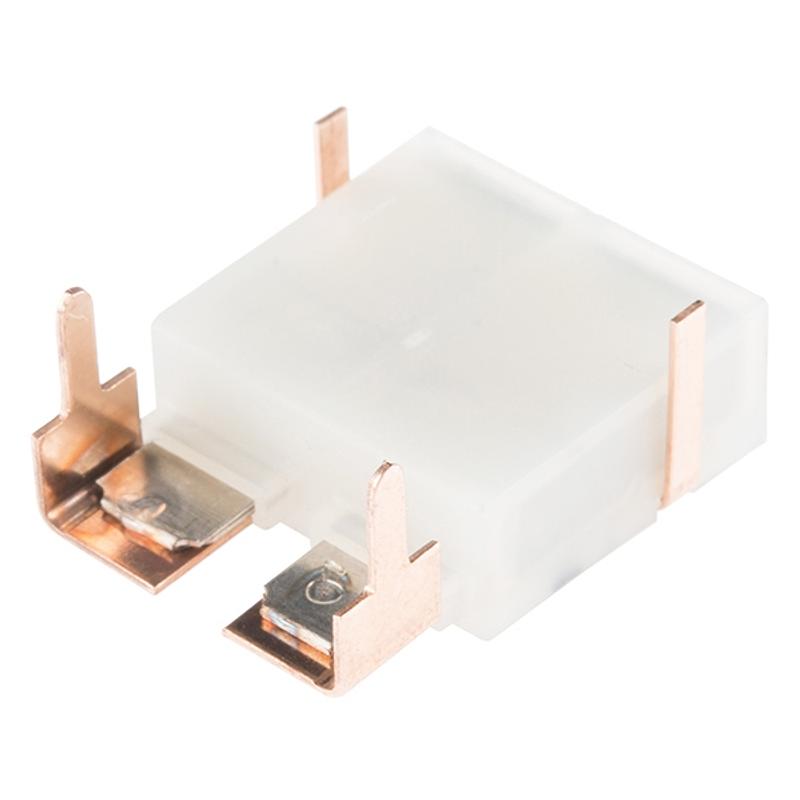

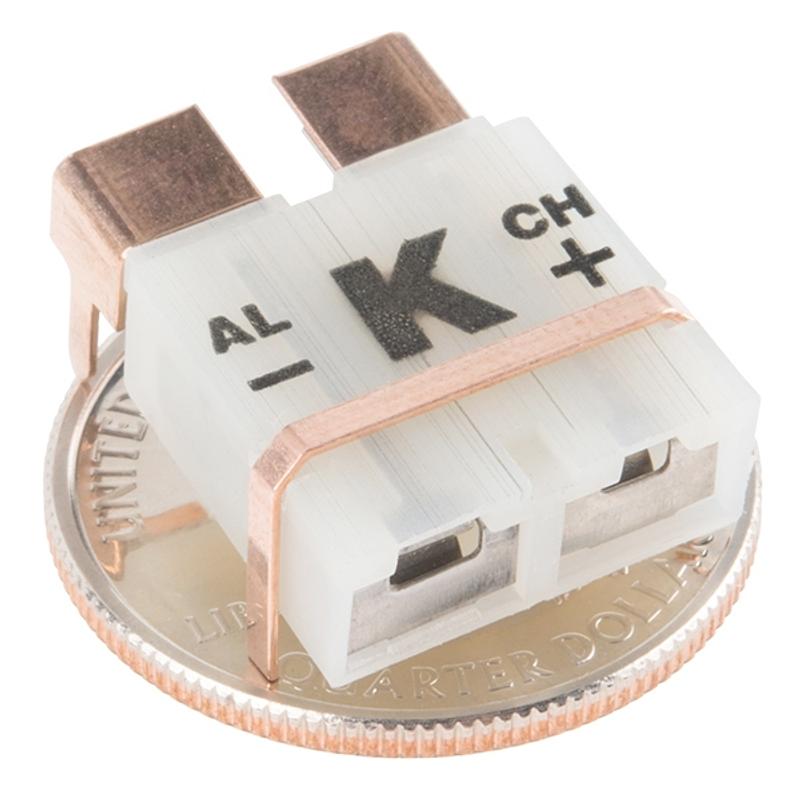

This Thermocouple Connector is perfect for bridging the gap between Type-K thermocouples with standard connectors with a PCB. This little connector is actually the exact part we recommend using with our SparkFun Thermocouple Breakout! Each connector can easily attach to a printed circuit board with it’s included mounting clip.
If you plan on using this connector with a custom PCB make sure to check out the Datasheet in the Documents section below for mounting dimensions.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- Thermocouple
- A temperature sensor made from two different metals that produces a very small voltage depending on temperature. Because the signal is tiny, it usually needs careful amplification and accurate measurement hardware.
