Terminal Block - 6 Position (15A, 600V)
This 6 position screw terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and...
Get notified when back in stock

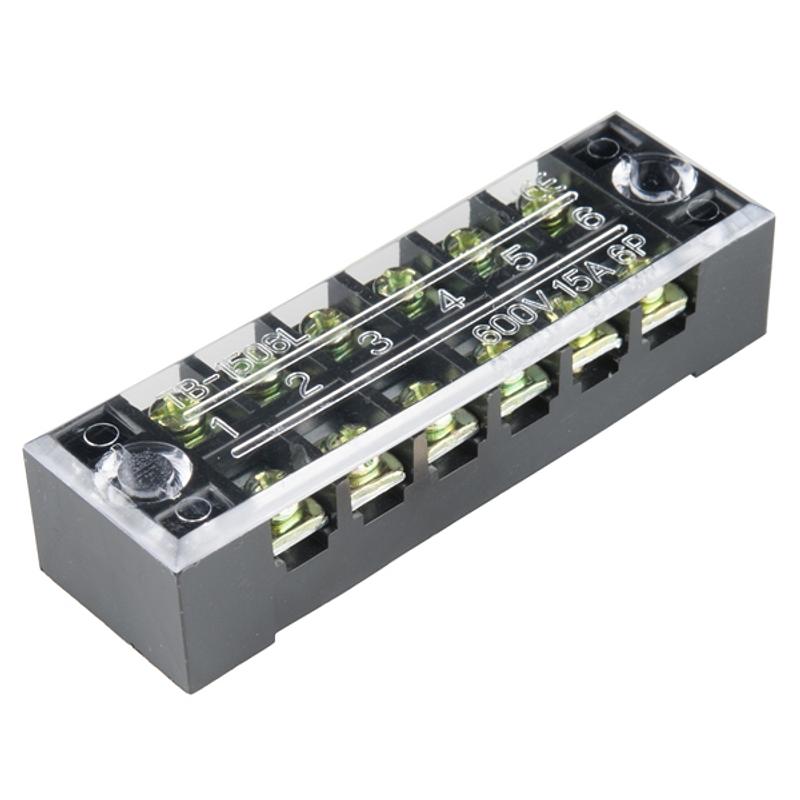

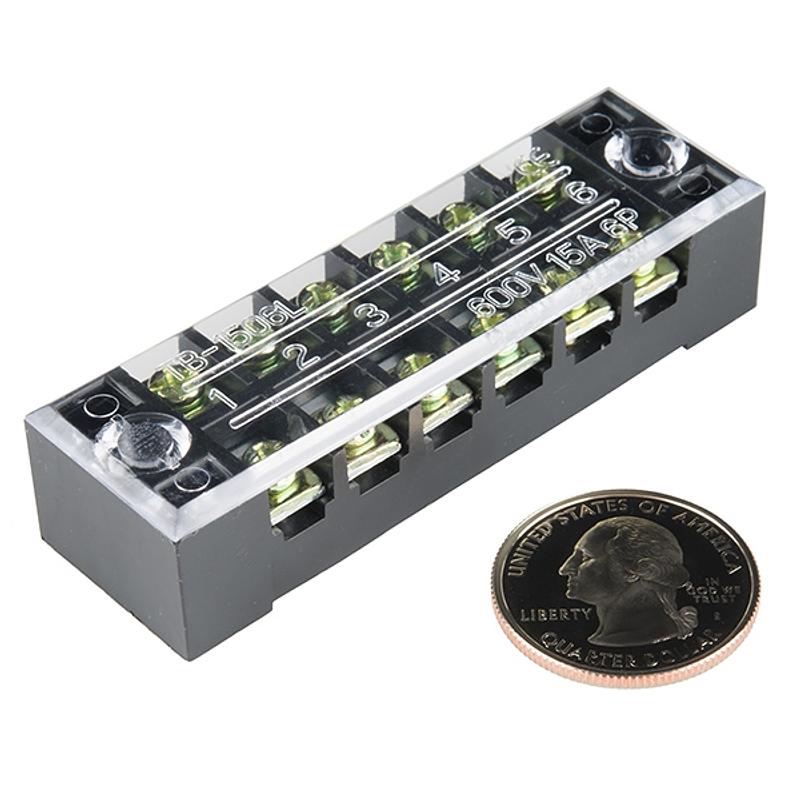

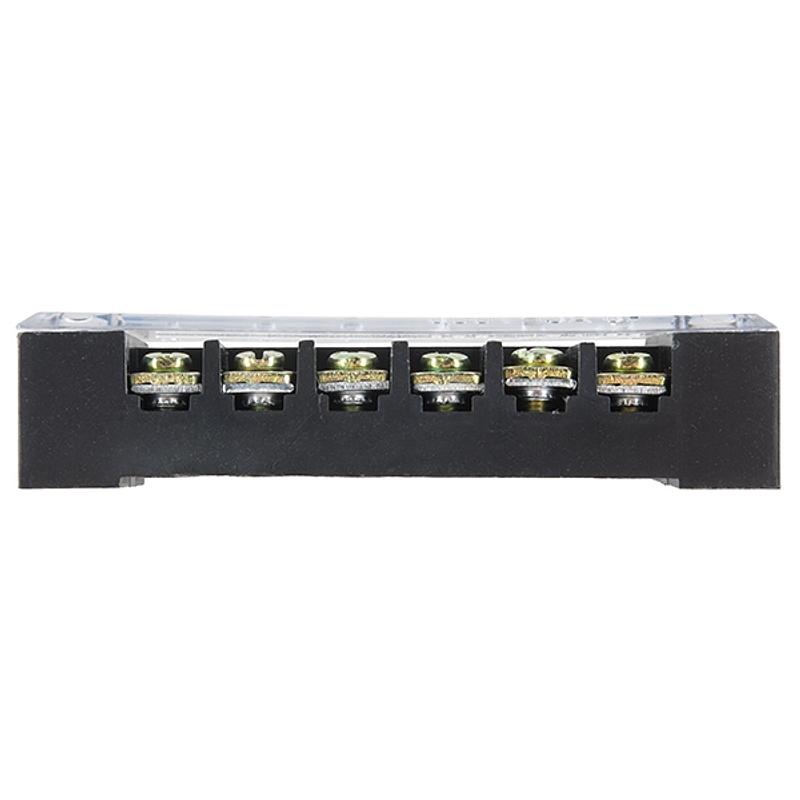

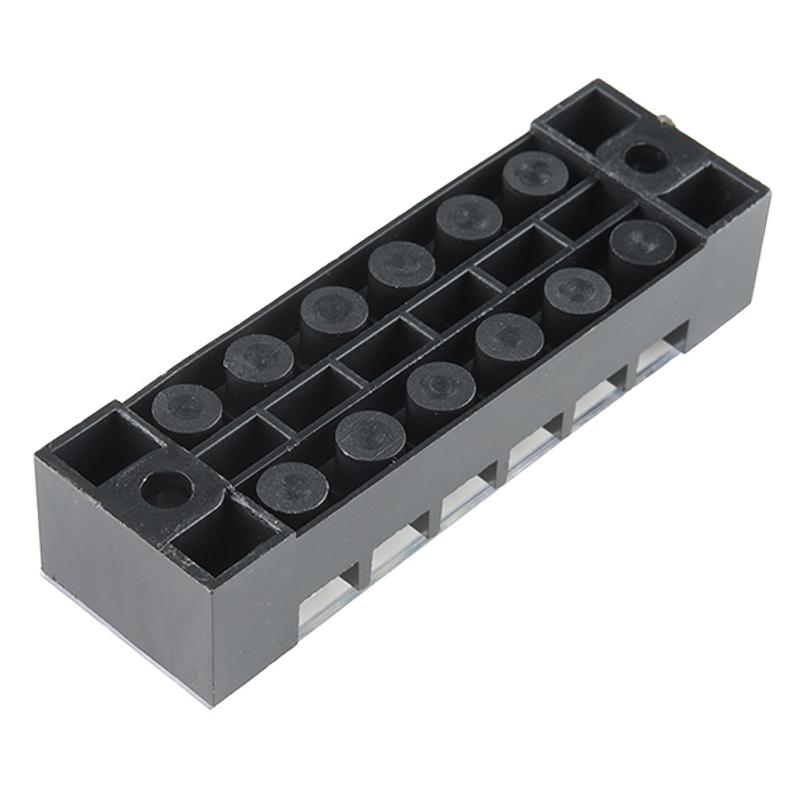

This 6 position screw terminal block provides a simple way to connect wires to a single connection point. These blocks allow wires to be screwed together and self-isolated without needing to twist, solder or any other splicing, by this method wiring can adjusted at anytime just as easy as it was the first time.
Each 6 position block offers a screw pitch of 10mm with a max current of 15A and a max voltage tolerance of 600V before risking meltdown or implosion.
Documents:
- Dimensional Drawing (TB-1506)
- Product Video
Jargon buster
Plain-language definitions for the technical terms used above.
- Terminal block
- A terminal block is a connector that joins wires together in a neat, removable, or serviceable way, usually clamping each wire under a screw or spring instead of soldering. It makes it easier to connect, change, or service wiring without permanent joints.
- Tolerance
- Tolerance tells you how far the real resistance value may be from the printed value. A 1% resistor is useful when a circuit needs more predictable behaviour than a looser 5% or 10% part.
