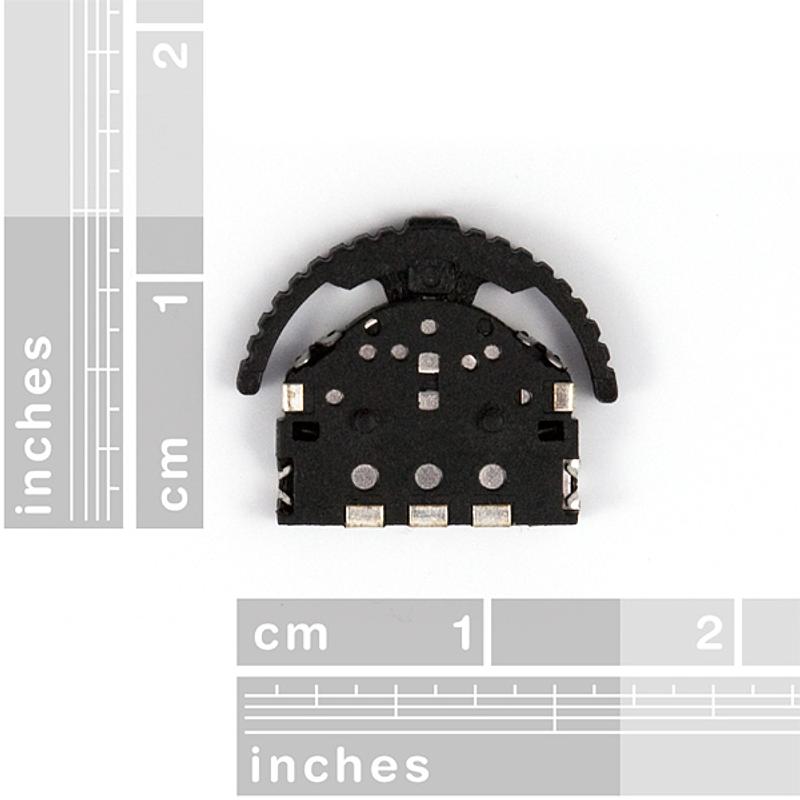

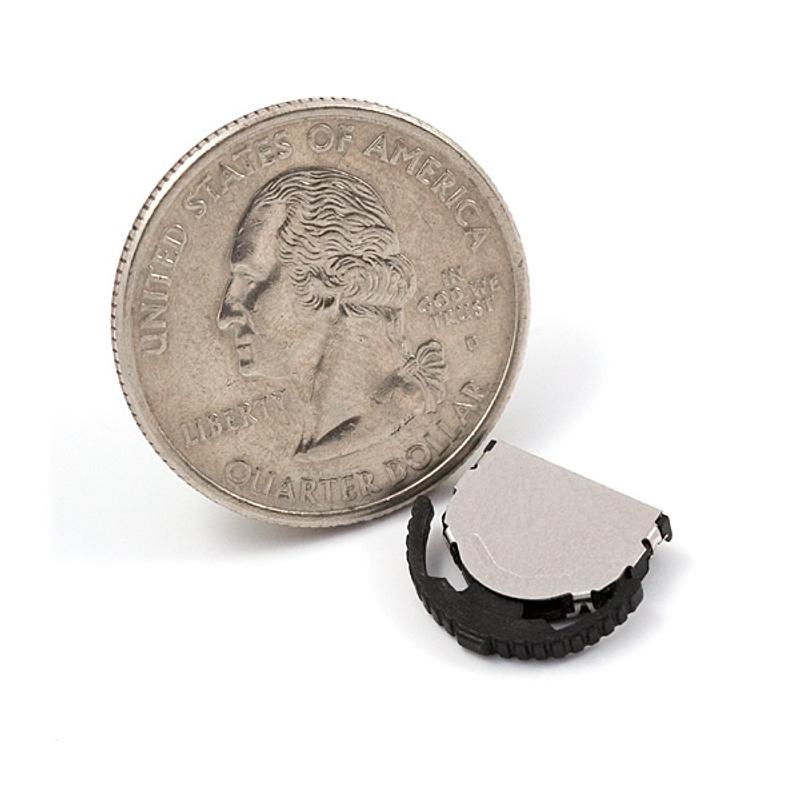

Surface Mount Navigation Switch
A compact 3-way surface-mount navigation switch commonly found in handheld devices like MP3 players. The switch provides up, down, and centre-press (select) ...
Get notified when back in stock
A compact 3-way surface-mount navigation switch commonly found in handheld devices like MP3 players. The switch provides up, down, and centre-press (select) actions in a single low-profile package — ideal for menu navigation interfaces in custom electronics projects.
Key Features
- 3-Way Navigation – Up, down, and centre-press select
- Surface Mount – Low-profile SMD package for compact PCB designs
- 1.2 VA Switching Capacity – 360 mA at 3.3 V or 240 mA at 5 V
Specifications
- Type: 3-way navigation switch (up/down/select)
- Mounting: Surface mount (SMD)
- Max Switching Power: 1.2 VA
- Max Current: 360 mA @ 3.3 V / 240 mA @ 5 V
Ideal For
- Menu navigation on custom handheld devices
- Compact user interfaces on embedded projects
- Custom PCB input controls
Package Contents
- 1× Surface Mount Navigation Switch
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- SMD
- SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
