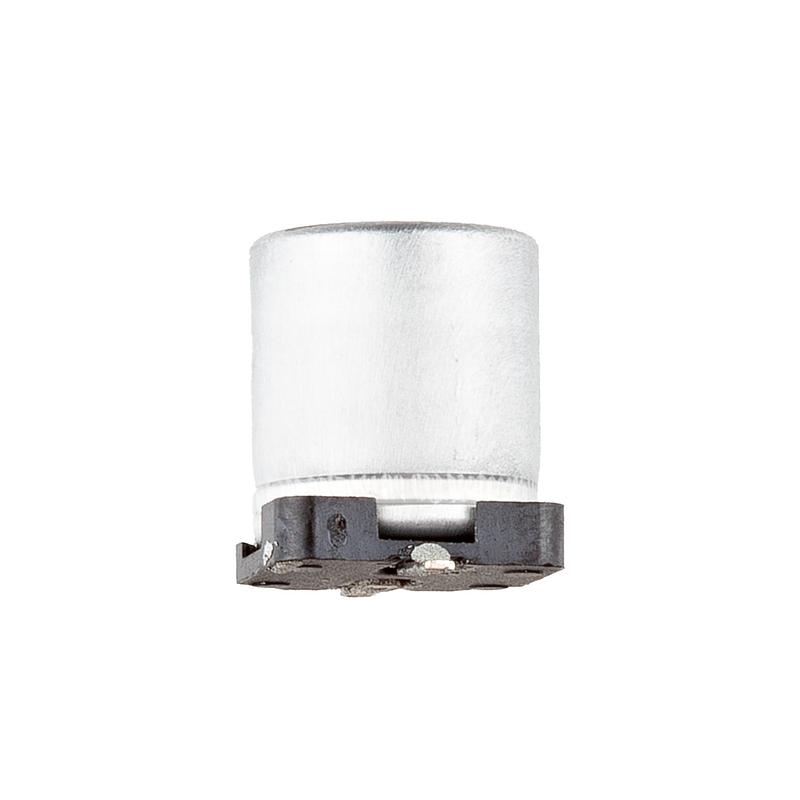

22µF 35V SMD Aluminium Electrolytic Capacitor
· MPN: COM-26985
This is a surface-mount aluminium electrolytic capacitor for compact PCB assemblies. It provides 22µF capacitance with a 35V rated voltage and ±20% tolerance...
This is a surface-mount aluminium electrolytic capacitor for compact PCB assemblies. It provides 22µF capacitance with a 35V rated voltage and ±20% tolerance.
The capacitor is polarised and intended for SMD placement, with the land pattern and seated height specified below for footprint planning.
Sold as individual units. Note: this part is not recommended for new designs.
Specifications:
- Capacitance: 22µF
- Tolerance: ±20%
- Voltage - Rated: 35V
- Lifetime @ Temp.: 2000 Hrs @ 85°C
- Operating Temperature: -40°C ~ 85°C
- Polarization: Polar
- Ripple Current @ Low Frequency: 41 mA @ 120 Hz
- Ripple Current @ High Frequency: 44.28 mA @ 100 kHz
- Size / Dimension: 0.197" Dia (5.00mm)
- Height - Seated (Max): 0.205" (5.20mm)
- Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type: Surface Mount
