2x3 Male PTH Header - 2mm Pitch

Name: 2x3 Male PTH Header - 2mm Pitch
Brand: SparkFun
SKU: SF-PRT-29292
Price: 1.0 AUD
Availability: InStock

· MPN: PRT-29292

Headers & Connectors

$1.00 |

In stock at supplier

No reviews yet

This is a compact 2x3 male through-hole header with 2mm pin spacing, suitable for soldering into compatible PCBs and add-on boards.The connector is unshroude...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

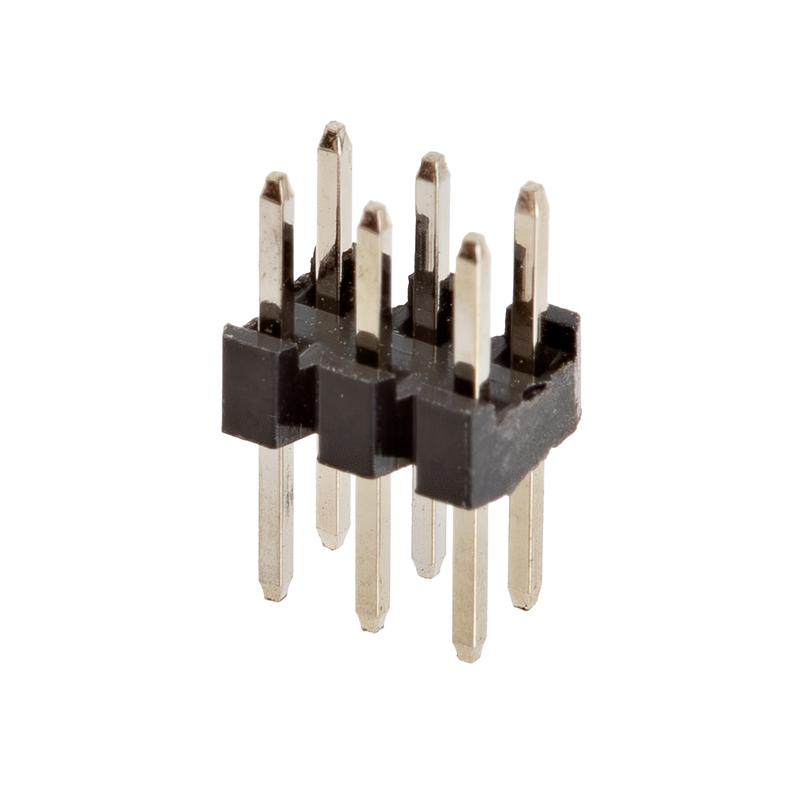

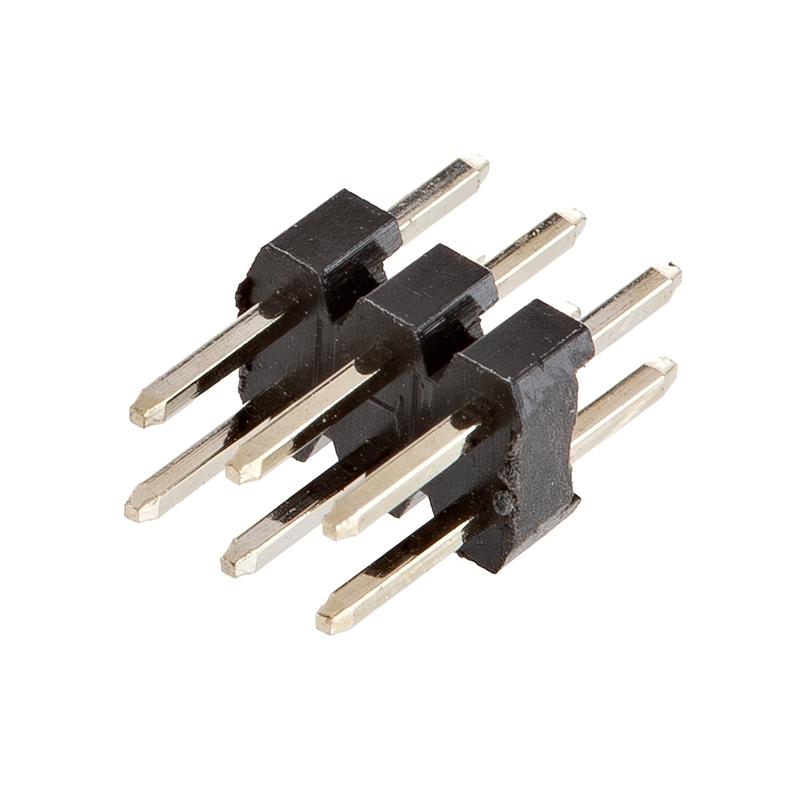

This is a compact 2x3 male through-hole header with 2mm pin spacing, suitable for soldering into compatible PCBs and add-on boards.

The connector is unshrouded, uses square male pins, and is designed for simple push-pull mating. It is the same style of header included with the Ethernet Kit for Teensy 4.1.

A mechanical drawing is available from the manufacturer for enclosure and PCB fit checks.

Specifications:

Contact Type: Male Pin
Pitch - Mating: 2mm (0.079")
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 2mm (0.079")
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 3.91mm (0.154")
Contact Length - Post: 2.79mm (0.110")
Overall Contact Length: 8.70mm (0.343")
Insulation Height: 2mm (0.079")
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Gold
Contact Material: Brass
Insulation Material: Polybutylene Terephthalate (PBT)
Operating Temperature: -40°C ~ 105°C
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: 250VAC

Useful for repairs, custom PCBs, and Teensy 4.1 Ethernet-related builds that need this 2x3, 2mm-pitch male header format.
