Have you ever seen a Weevil? It’s a pretty under-appreciated beetle, so we thought it deserved a kit. Okay, so we just kind of like the name and think it makes a cute board.

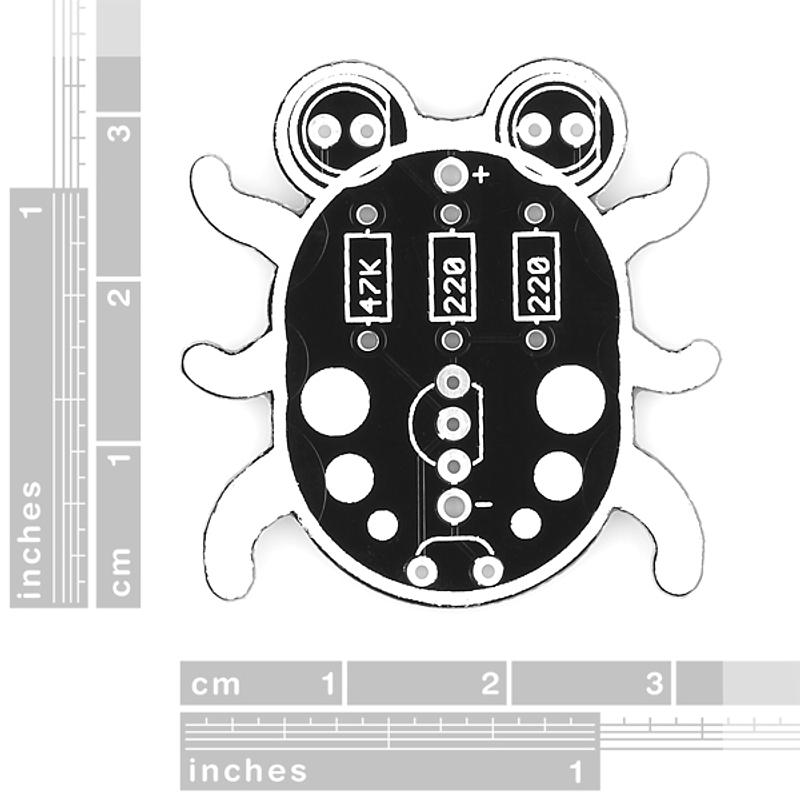

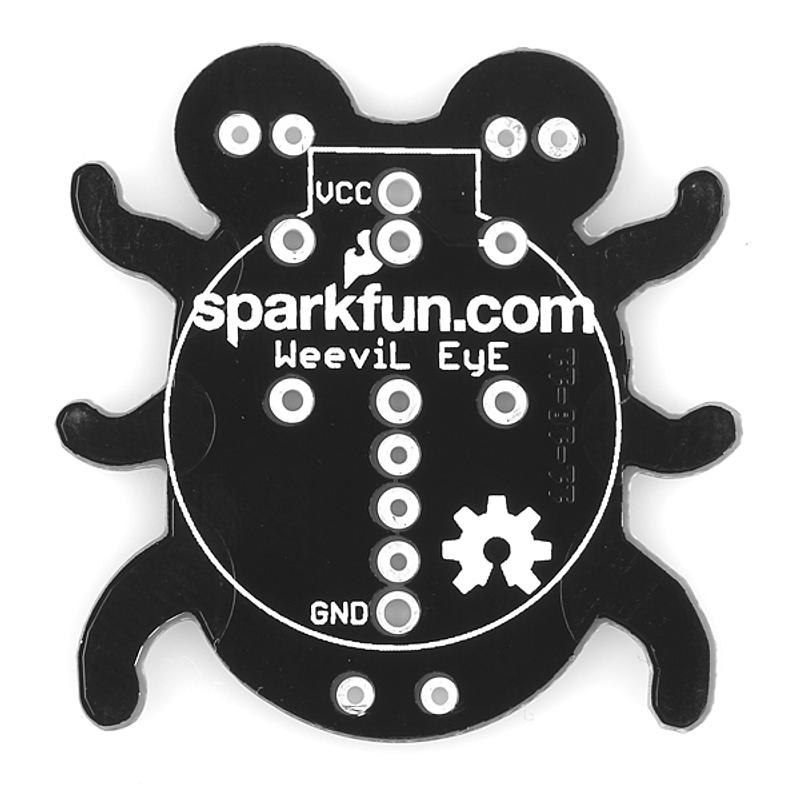

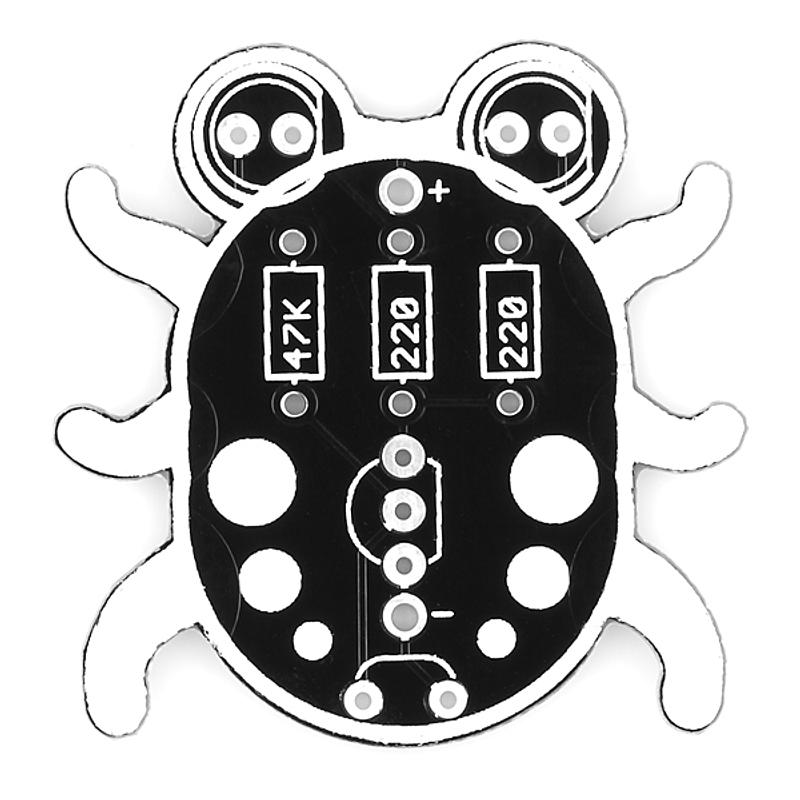

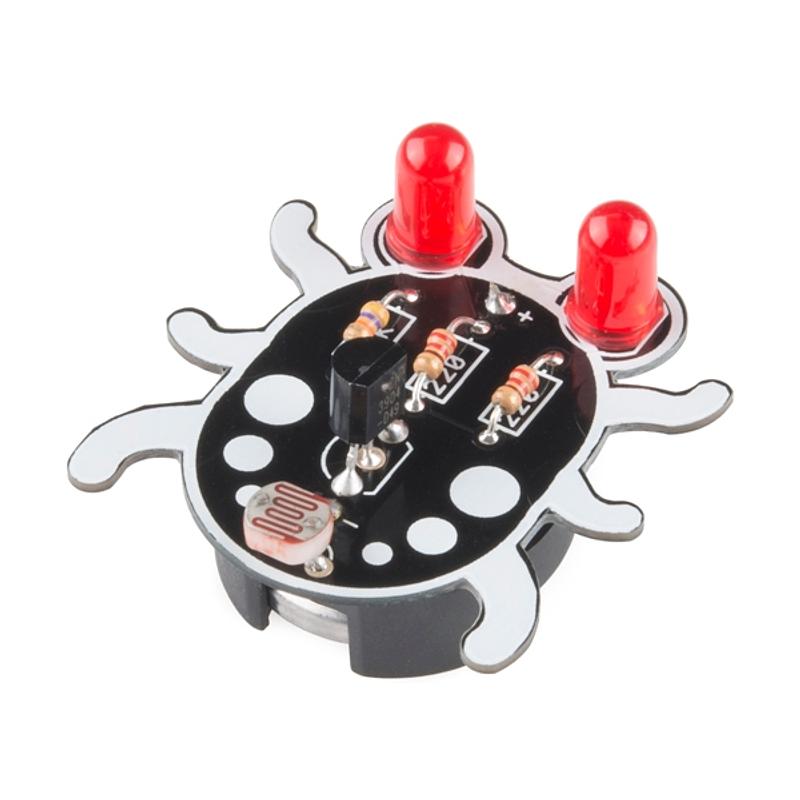

The WeevilEye is a through-hole soldering kit designed for the beginner. It has a low parts count so even young kids can easily complete it. Once it’s put together the red LED “eyes” light up brighter or darker according to how much light is getting to the photosensor.

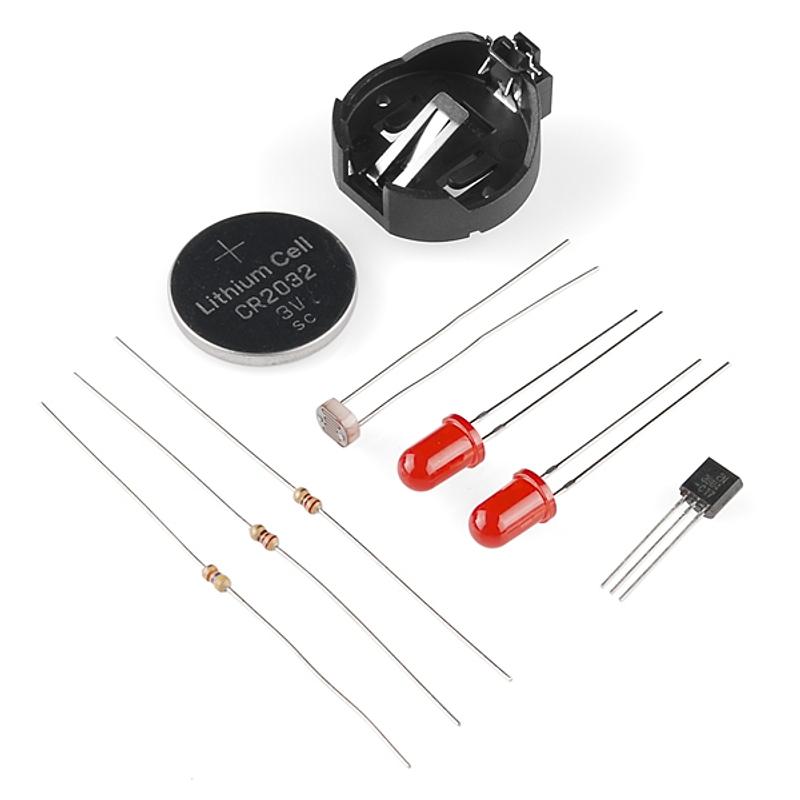

This kit comes with all of the parts you need to build your own WeevilEye as well as an instructional kit card that will guide you through the assembly process. You will need a soldering iron and some solder, an inexpensive choice for the beginner is the 30W Soldering Iron listed below.
Note: Due to the requirements of shipping the battery in this kit, orders may take longer to process and therefore do not qualify for same-day shipping. Sorry for any inconvenience this may cause.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
