SparkFun USB UART Serial Breakout - CY7C65213
The CY7C65213 USB to UART serial breakout is designed to provide users with a means to access all available I/O pins on the IC, and to provide a 6-pin UAR...
Get notified when back in stock

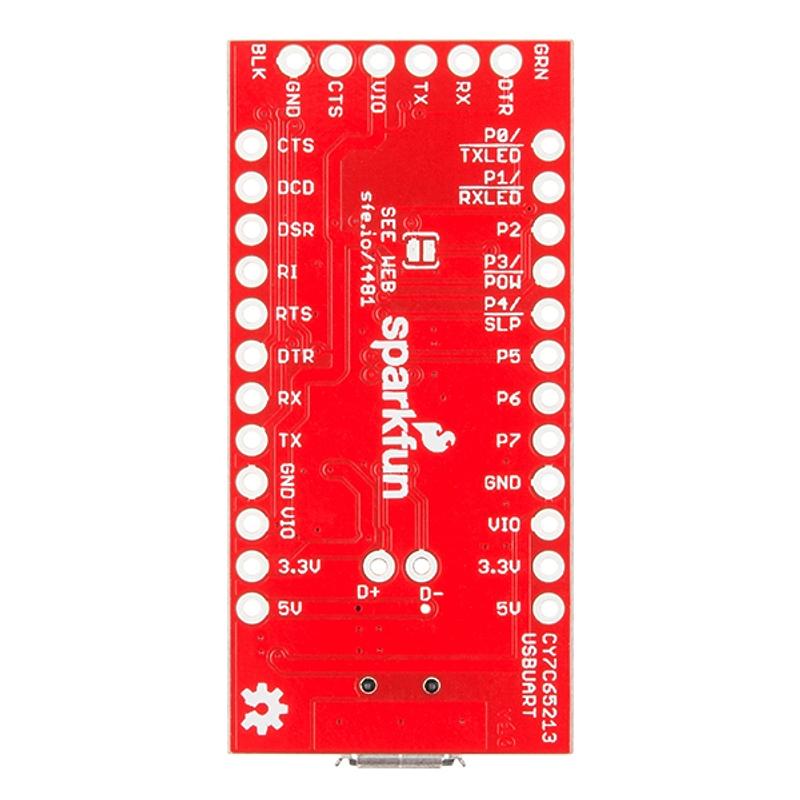

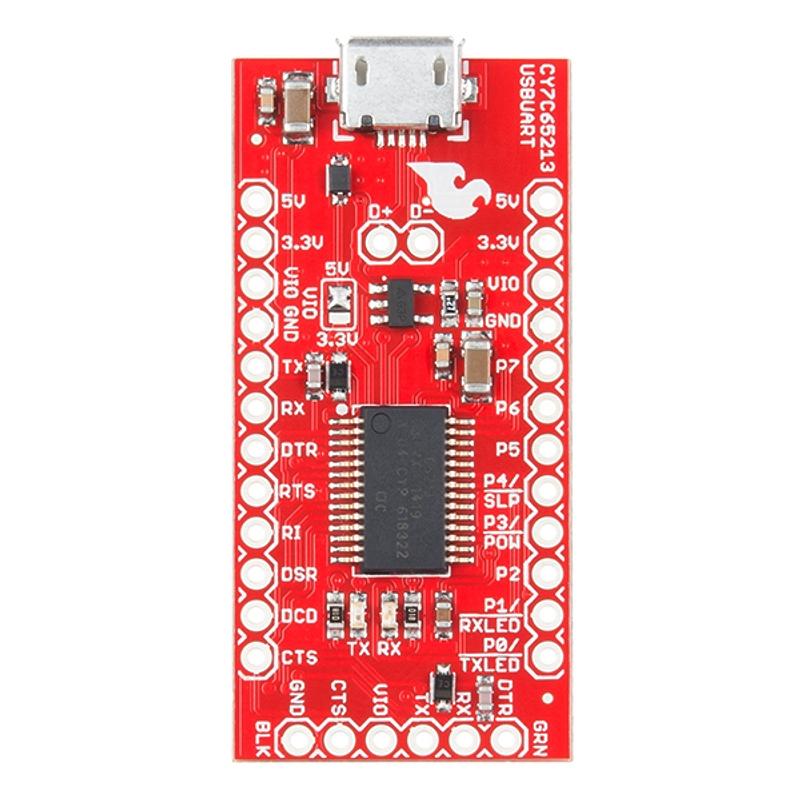

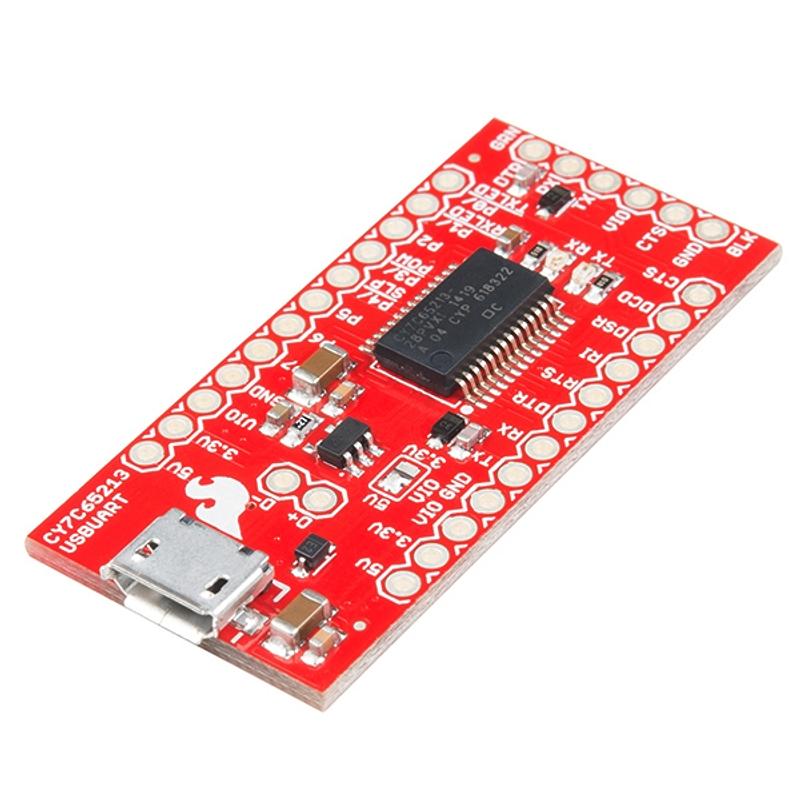

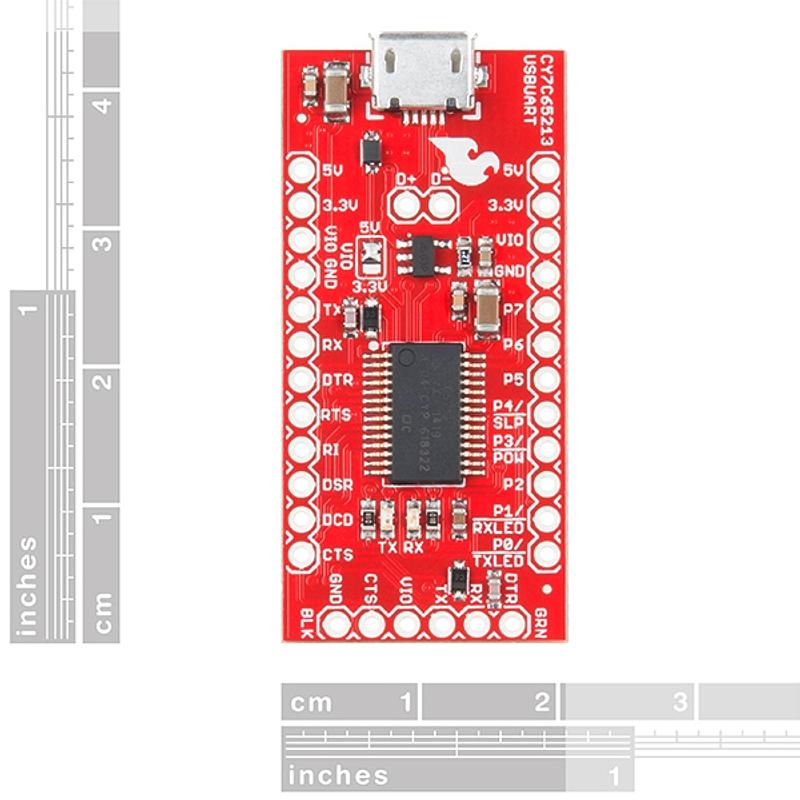

The CY7C65213 USB to UART serial breakout is designed to provide users with a means to access all available I/O pins on the IC, and to provide a 6-pin UART header that is compatible with other SparkFun breakout boards. This breakout has a microUSB connector and other support circuitry to get the IC quickly up and running.
The CY7C65213 breakout is equipped with a micro-B USB port, USB signal lines, a VIO selection jumper, a low-voltage selection jumper, and a multitude of pins that allow you to utilize the board to its fullest potential. The CY7C65213 breakout is capable of operating at both 3V and 5V based on what the VIO selection jumper is set to. Additionally this breakout can operate at 2V and below.
Get Started with the CY7C65213 Breakout Guide
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (CY7C65213)
- Cypress USB UART SDK
- GitHub
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- UART
- UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
Find this product in
Brands
Prototyping & Wiring
SparkFun USB UART Serial Breakout Schematic
Schematic · 93.7 KB · Click any page to view full size
CY7C65213 USB-UART LP Bridge Controller Datasheet
Datasheet · 2.3 MB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 594.7 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
Breakout board for Cypress's CY7C65213 USBUART conversion chip.
b262a24
almost 7 years ago
· 16 commits
- Hardware Update to v10, ready for reds almost 10 years ago
- Production panel over 9 years ago
- .gitignore Add gitignore over 10 years ago
- README.md Update README.md almost 7 years ago
