SparkFun USB to RS-485 Converter

Name: SparkFun USB to RS-485 Converter
Brand: SparkFun
SKU: SF-BOB-09822
Price: 55.7 AUD
Availability: InStock

All Products Breakouts New Arrivals SparkFun Brands and Manufacturers ICs and Microchips Components Industrial Connectivity Prototyping & Wiring

$55.70 |

In stock at supplier

No reviews yet

This is the newest revision and fixes issues with the last board. This breakout board pairs an SP3485 RS-485 transceiver with an FT232RL USB UART IC to co...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

This is the newest revision and fixes issues with the last board. This breakout board pairs an SP3485 RS-485 transceiver with an FT232RL USB UART IC to convert a USB stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps.

The TXDEN pin of the FT232RL is connected to the transmit and receive enable inputs of the SP3485, this line is used to control the transmission mode of the RS-485 transceiver. With the proper drivers installed, the FT232RL will enumerate as a virtual COM port; the drivers are available for Windows, Mac and Linux.

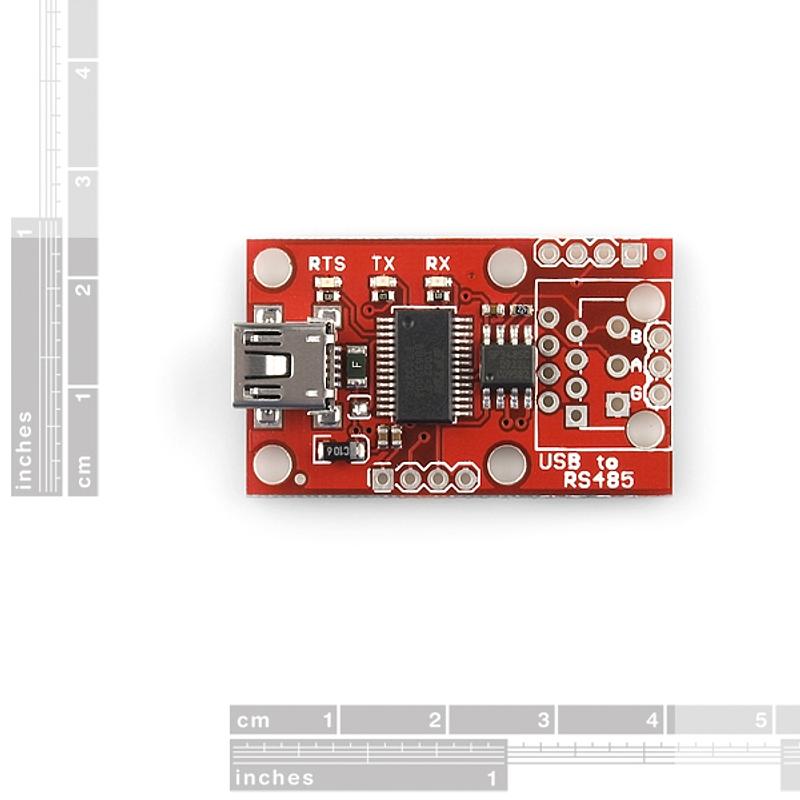

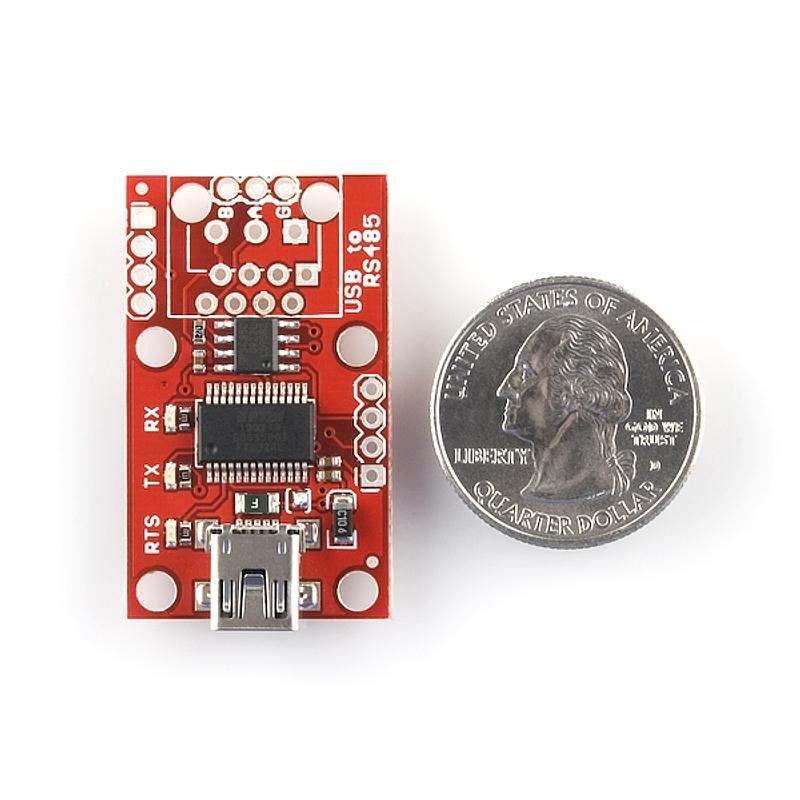

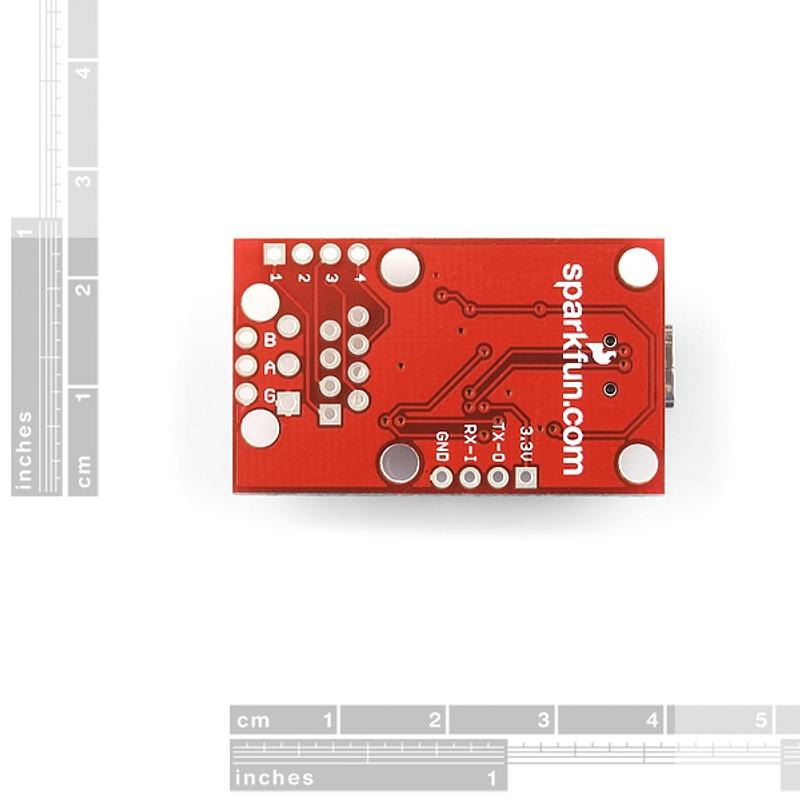

This breakout board includes the SP3485, FT232, TX/RX/RTS LEDs, Mini-B USB connector, filter capacitors, and other components shown on the schematic. We’ve broken out the RS485 output to three different connections: (1) an RJ-45 connector, (2) a 3-pin 3.55mm screw terminal, and (3) a 3-pin 0.1" pitch header; none of these output connectors come populated.

Jargon buster

Plain-language definitions for the technical terms used above.

breakout: A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
COM port: A COM port is how a computer (chiefly under Windows) presents a serial port to software, whether a physical RS-232 port or a virtual port created when a USB-to-serial device is plugged in. Software can then communicate with the connected device over serial using a terminal or configuration program.
RS485: RS485 is a robust differential serial communication standard often used in factories, farms and buildings where cables may be long or electrically noisy, and it can link many devices on a single pair of wires. When a product lists RS485, it can communicate with industrial sensors, meters and control equipment over longer distances than typical hobby serial wiring.
RTS: RTS stands for Request To Send, a serial flow-control signal used to manage when a device is ready to receive data. It matters when moving fast serial streams because flow control can help prevent lost data.
RX: RX means receive, usually showing data being received by the board. An RX indicator LED can help with troubleshooting USB or serial communication.
TX: TX means transmit, usually showing data being sent from the board. A TX indicator LED can help you see when the board is communicating or uploading code.
UART: UART is a simple asynchronous serial interface that sends data over separate transmit and receive wires, usually labelled TX and RX, with both ends set to the same baud rate. It is a common way for microcontrollers and other serial devices to exchange data.
