SparkFun SSOP to DIP Adapter - 28-Pin
All Products
Breakouts
New Arrivals
SparkFun
Brands and Manufacturers
Prototyping
Components
Prototyping & Wiring
$10.31
|
In stock
8, 16, 20, and 28-Pin SSOP to DIP break out boards. The footprint was rotated to accommodate different width SSOP devices and can be used with any pin cou...
Estimated Delivery
Arrives
Disclaimer
Secure checkout

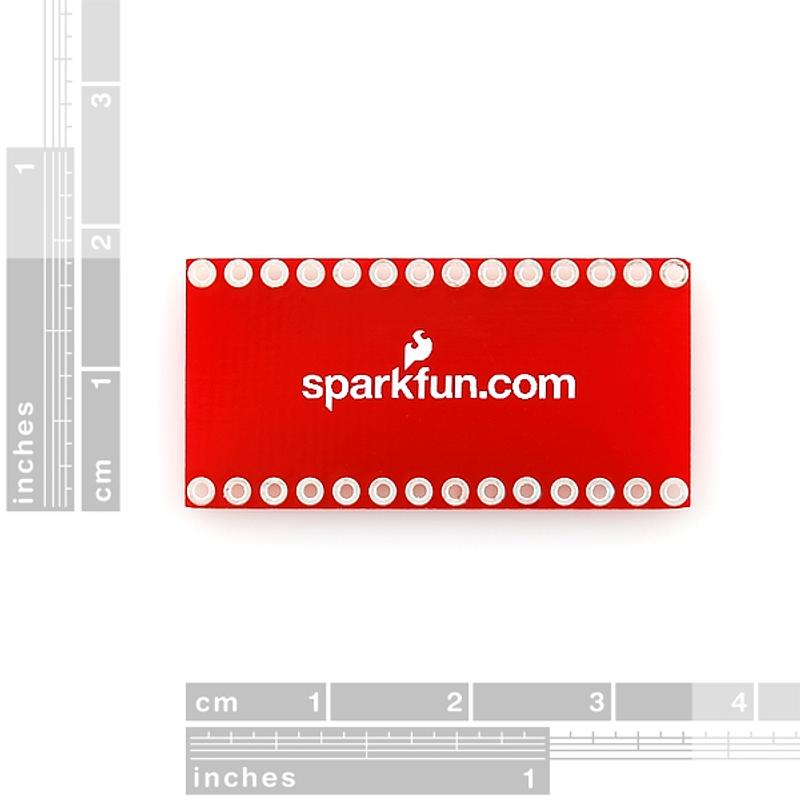

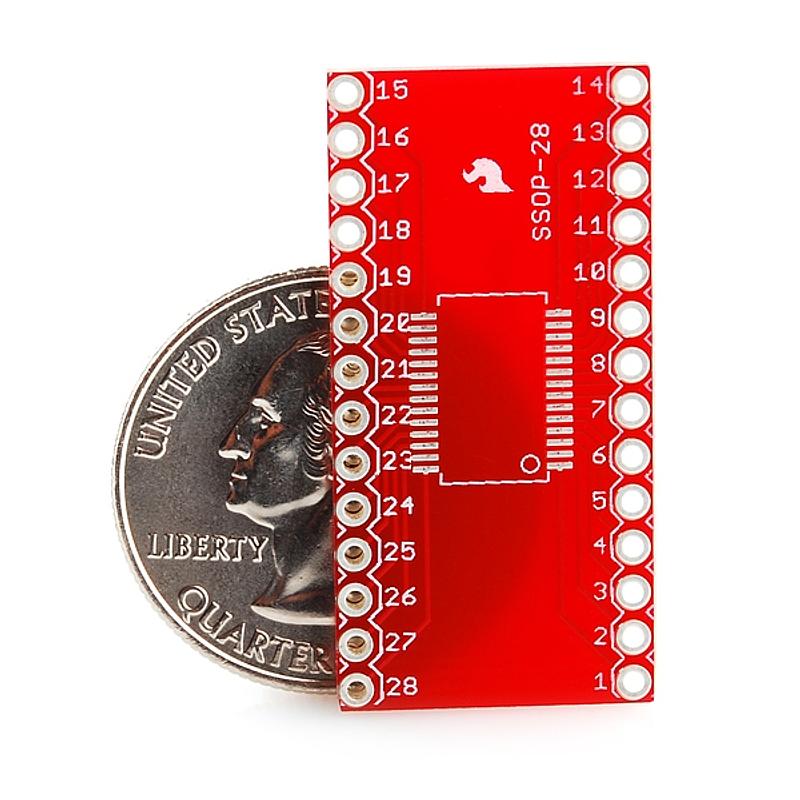

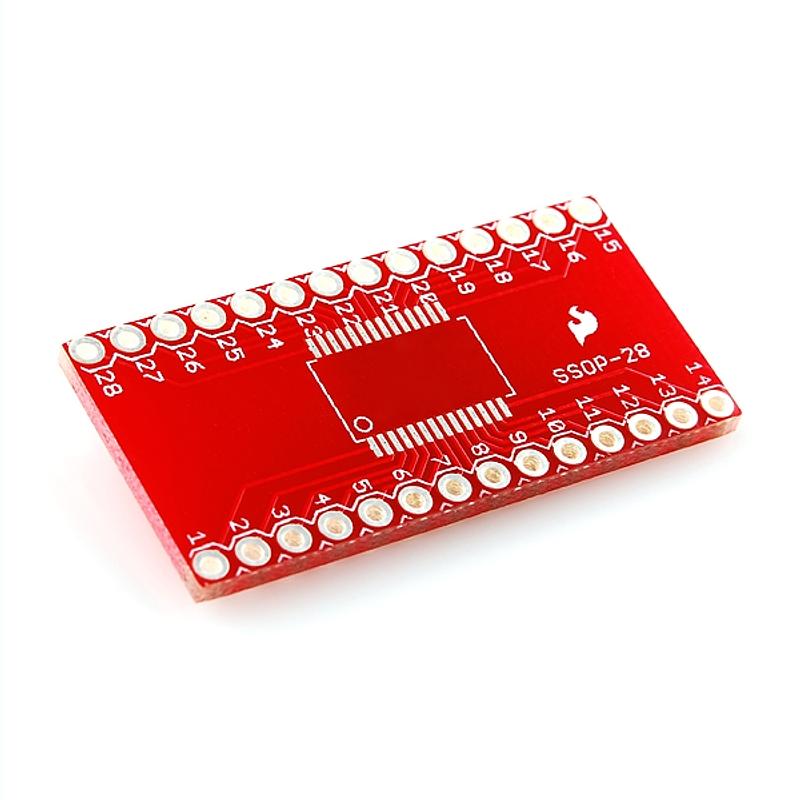

8, 16, 20, and 28-Pin SSOP to DIP break out boards. The footprint was rotated to accommodate different width SSOP devices and can be used with any pin count up to 28 pins. Designed to be used with 0.65mm pitch devices but can also be used with 0.025" pitch devices (comes out to ~0.635mm). We’ve made these 0.635mm devices fit just fine. Can be used with packages that have a lead span of .230" up to .350".
40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SSOP .65mm and can accommodate .635mm pitch devices.
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
Find this product in
Brands
Prototyping & Wiring
SSOP to DIP Adapter 28-Pin Schematic
Schematic · 13.7 KB · Click any page to view full size
