SparkFun SOT23 to DIP Adapter
6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-...
Get notified when back in stock

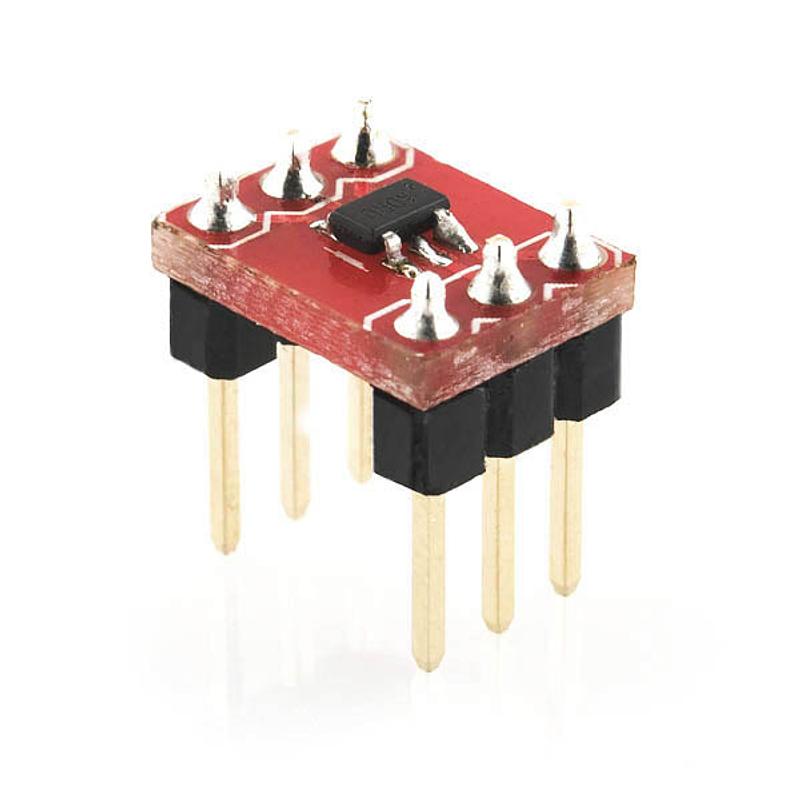

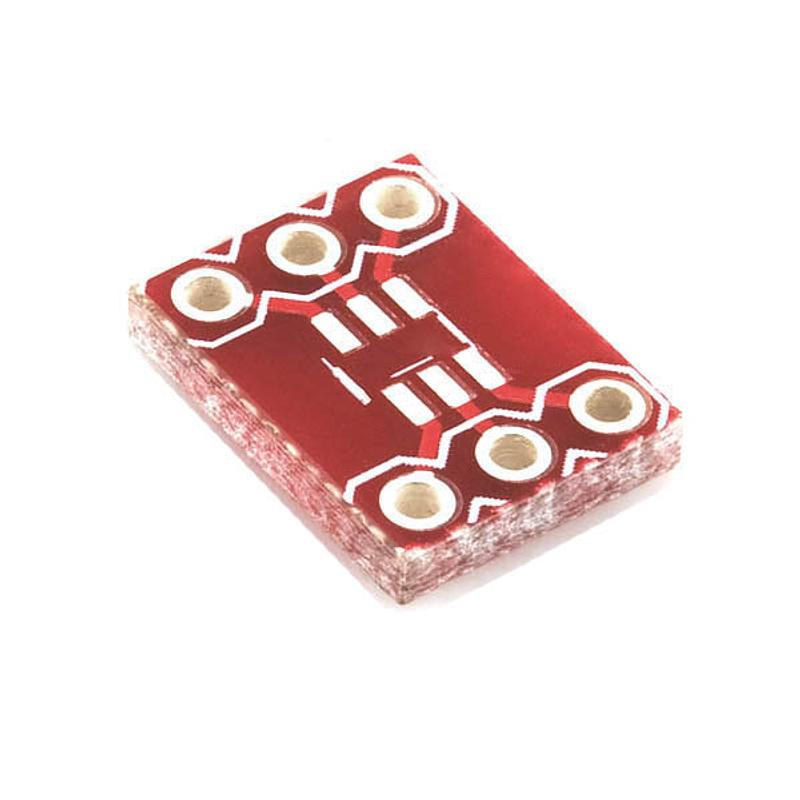

6 pin SOT-23 to DIP adaptor. Created to take SOT23 of various pin sizes breakout to DIP. This will work with 3-pin MOSFETs, BJTs, Voltage Regulators (SOT-23-5), and various other Micro6, Micro5, etc packages.

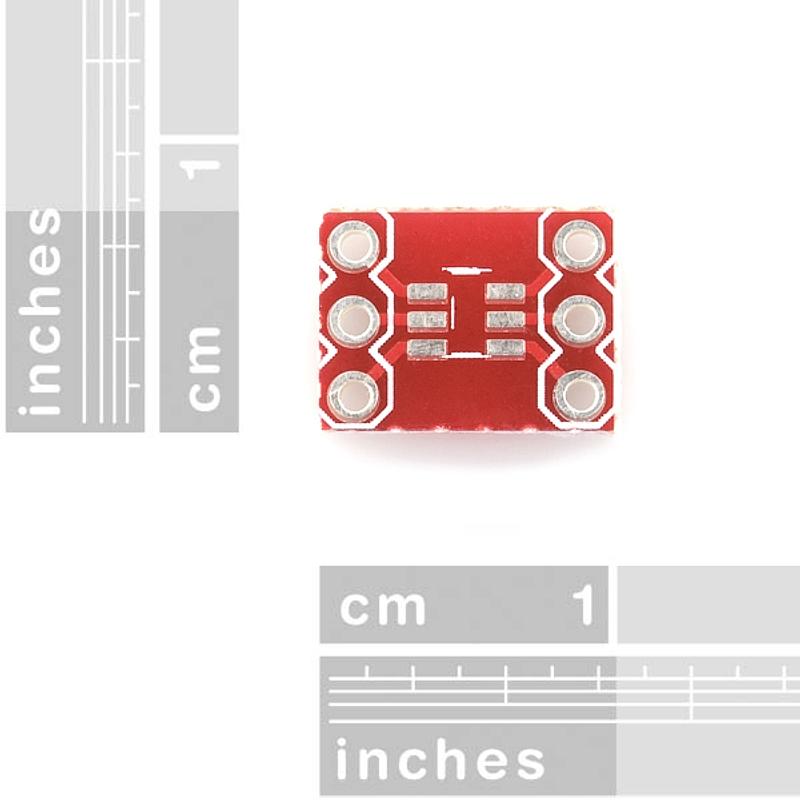

DIP width is 0.300" (300mil) and will fit nicely into any breadboard or DIP socket. 40 Pin break-away headers are perfect for use with these custom PCBs. Machine pin headers may be a better option for IC sockets. Pad layout fits all standard SOT23 packages including:
- SOT-23
- SOT-23-3
- SOT-23-6
- Micro3
- 5-MicroSMD
- All other similar SOT23 packages

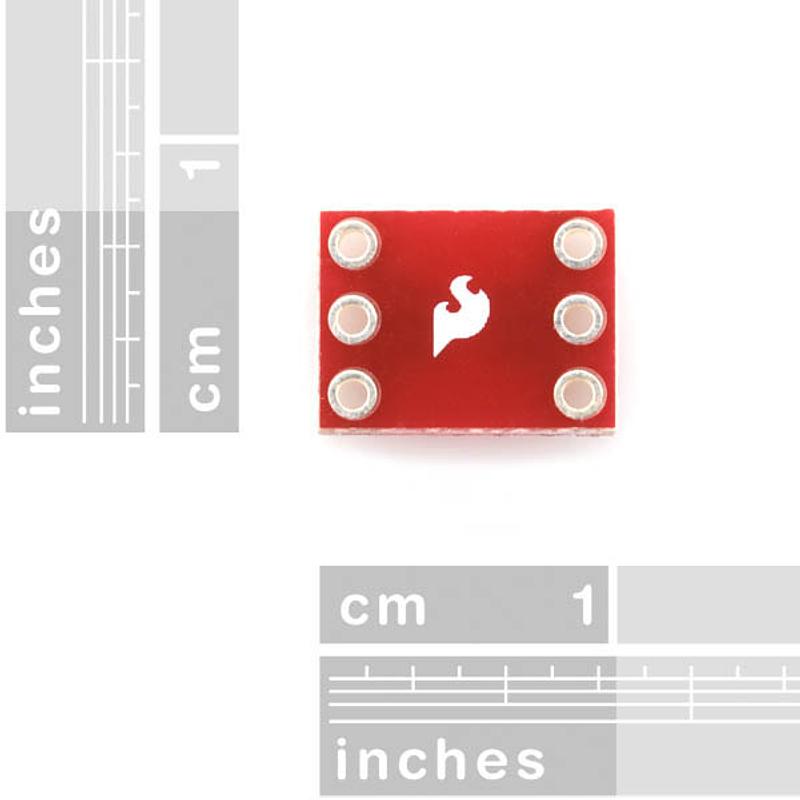

Dimensions: 0.34x0.46"
