SparkFun Micro OLED Breakout
The SparkFun Micro OLED Breakout Board breaks out a small monochrome, blue-on-black OLED. It’s “micro”, but it still packs a punch – the OLED display is cris...
The SparkFun Micro OLED Breakout Board breaks out a small monochrome, blue-on-black OLED. It’s “micro”, but it still packs a punch – the OLED display is crisp, and you can fit a deceivingly large amount of graphics on there. This breakout is perfect for adding graphics to your next Arduino project, displaying diagnostic information without resorting to serial output, and teaching a little game theory while creating a fun, Arduino-based video game. Most important of all, though, is the Micro OLED is easy to control over either an SPI or I2C interface.

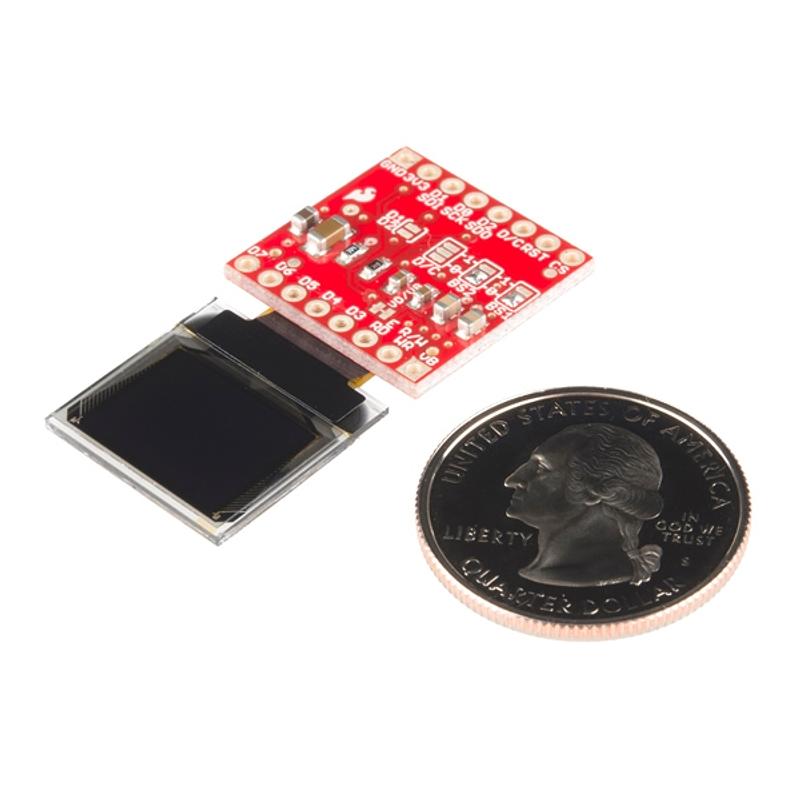

You may be asking yourself, “Why does this board look so familiar?” Yes, this is essentially a MicroView without the Arduino portion. We understand that sometimes you just need a breakout, an open door for you to explore the possibilities of a super small OLED screen. Speaking of, the screen on this breakout is only 64 pixels wide and 48 pixels tall, measuring 0.66" across.

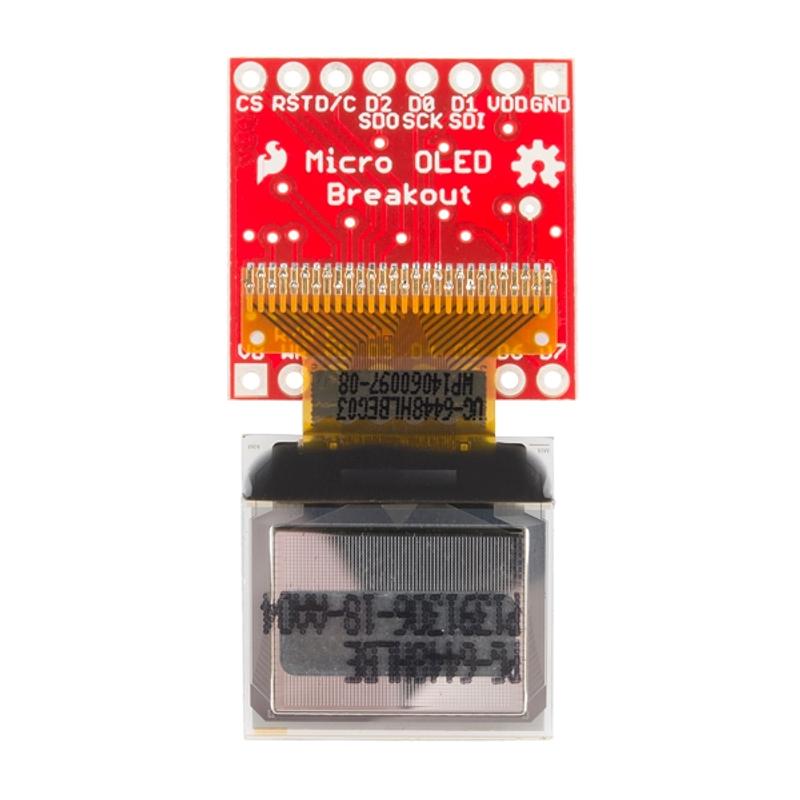

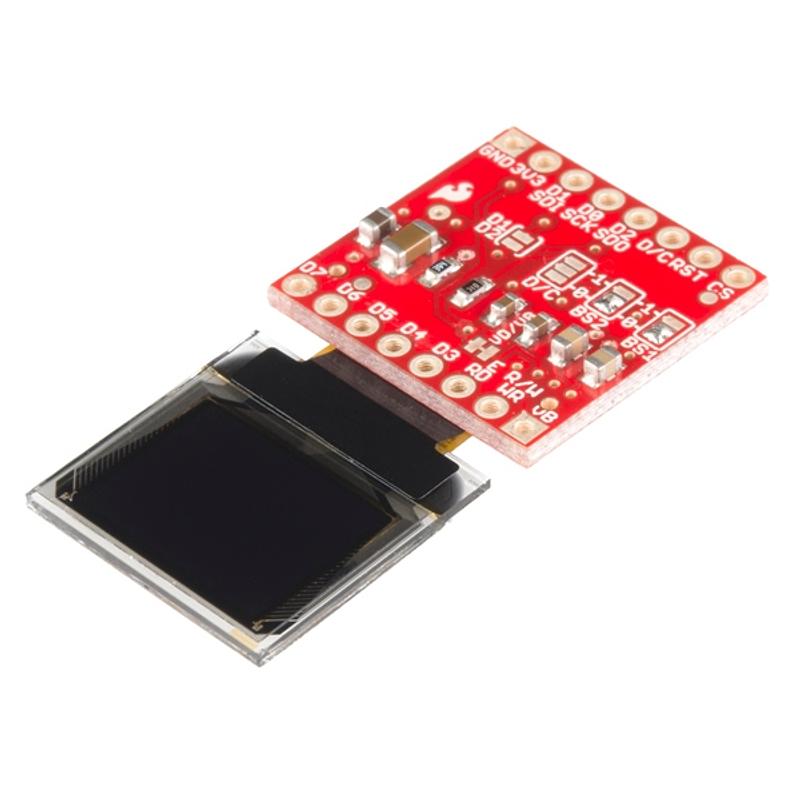

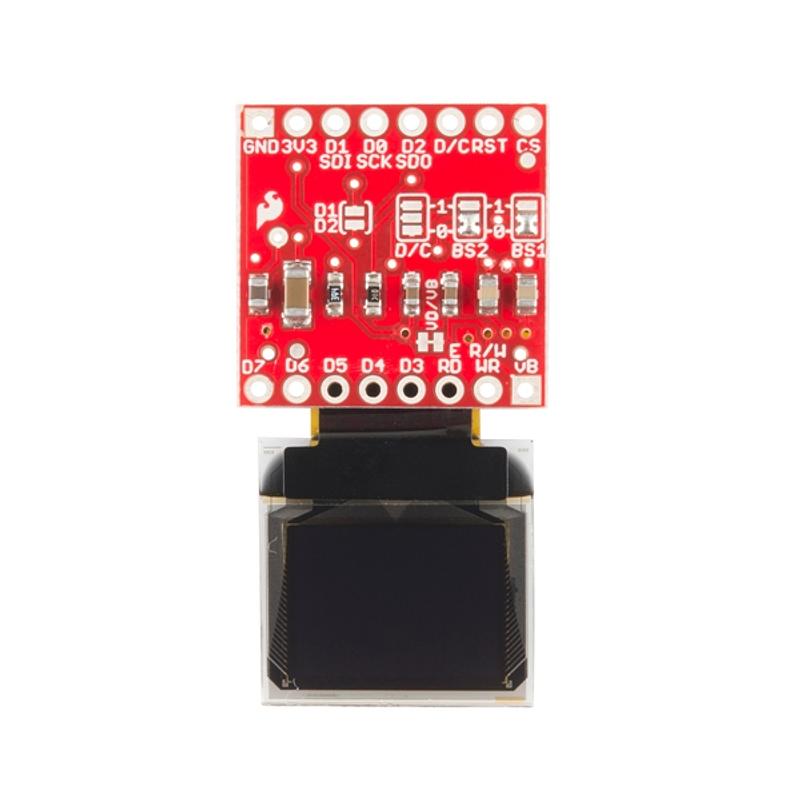

In total, the Micro OLED Breakout provides access to 16 of the OLED’s pins. Fortunately, though, you’ll only need about half of them to make the display work. The top row of pins (GND-CS) breaks out everything you’d need to interface with the OLED over an SPI or I2C interface. The pins on the bottom (D7-vB) are mostly only used if you need to control the display over a parallel interface. This board operates at 3.3V with a current of 10mA (20mA max).
Features:
- Operating Voltage: 3.3V
- Screen Size: 64x48 pixels (0.66" Across)
- Monochrome Blue-on-Black
- SPI or I2C Interface
Documents:
- Schematic
- Eagle Files
- Hookup Guide
- Datasheet (SSD1306)
- GitHub (Design Files & Example Code)
- GitHub (Library)
- Product Video
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- CS
- CS stands for chip select, a control pin used by SPI devices to tell which connected device should listen. It matters when you connect more than one SPI module to the same microcontroller, because each device usually needs its own CS pin.
- OLED
- OLED stands for organic light-emitting diode, a display type where each pixel produces its own light. It matters because OLED screens are thin, high-contrast and easy to read for small status displays, but they can be more sensitive to image burn-in than some other display types.
- parallel interface
- A parallel interface sends several bits of data at the same time using multiple wires. It can be faster than simple serial connections, but it uses more microcontroller pins, so it is less convenient for small projects with limited wiring space.
- SPI
- A fast serial communication bus often used for displays, memory cards, and sensors. It matters because SPI devices need specific pins for clock and data, plus a separate chip-select line for each device.
