SparkFun Breadboard Power Supply Stick 5V/3.3V

$23.02

Part Number:  SF-PRT-10804
Brand:  SparkFun Australia

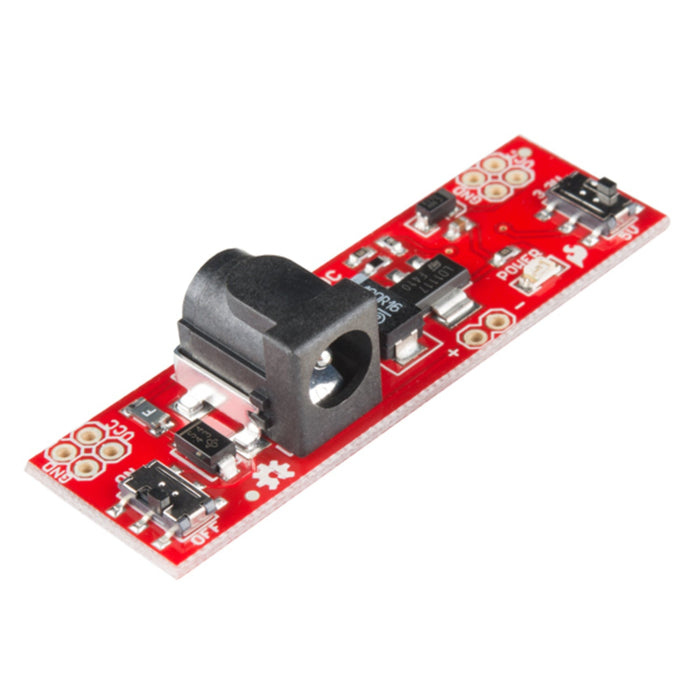

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard. Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Retired Product

This product has been retired from our catalog and is no longer for sale. This page is made available for those looking for datasheets and the simply curious.

Contact us on (02) 9457 8865 or help@littlebirdelectronics.com and we'll help you find the up-to-date version.

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.

Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).

The two pairs of GND and VCC holes are spaced such that when connected to our Basic Breadboard both power busses will be powered.

Check out our Unregulated Power Supply Tutorial!

Note: Headers are not supplied. You will need to supply your own headers to connect this board to a breadboard. Check below for some breakaway header strips.

Note: We’ve released a new version of the SparkFun Breadboard Power Supply Stick, it can be found here! The new version functions the exact same way as this older model but we’ve made a few changes to footprints, the silkscreen, and added a second set of pins that output to the breadboard to help with stabilization. Go check it out!

Dimensions: 2.15x0.65"

Features:

  • 6-12V input voltage via barrel jack or 2-pin header
  • 3.3V or 5V regulated output voltage
  • ON/OFF switch
  • Output voltage select switch
  • Power status LED
  • PTC fuse protected power
  • 5.5x2.1mm center positive barrel jack
