Snap-on Enclosure for Adafruit TPS61169 Breakout
· MPN: ADA6402
Keep your Adafruit TPS61169 Constant Current Boost Converter for LEDs protected during use and transport with this compact snap-on enclosure. It has been cus...
Get notified when back in stock

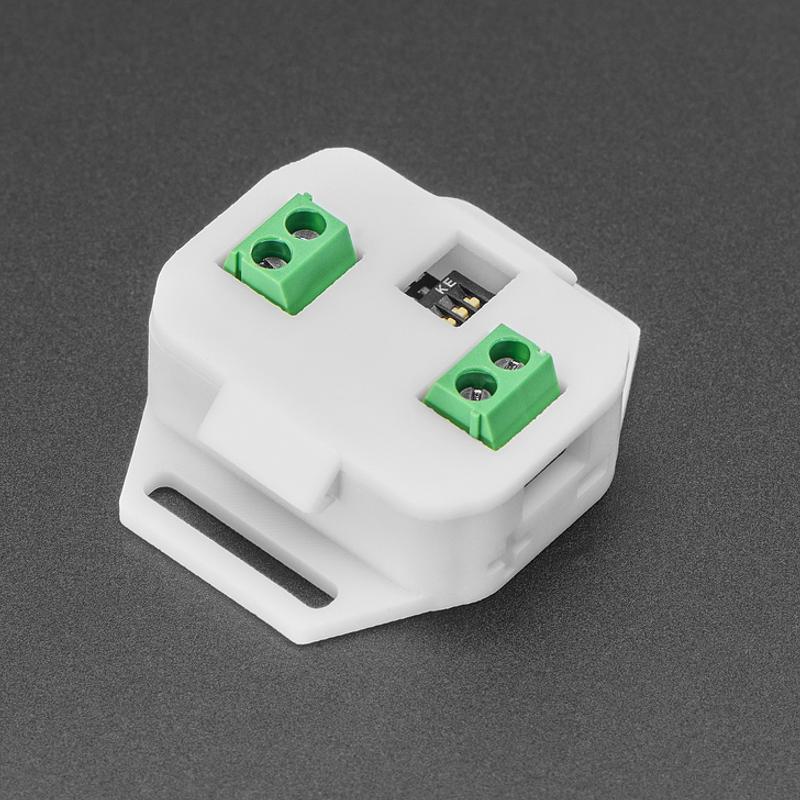

Keep your Adafruit TPS61169 Constant Current Boost Converter for LEDs protected during use and transport with this compact snap-on enclosure. It has been custom-designed and 3D printed to fit the breakout and its surrounding parts.

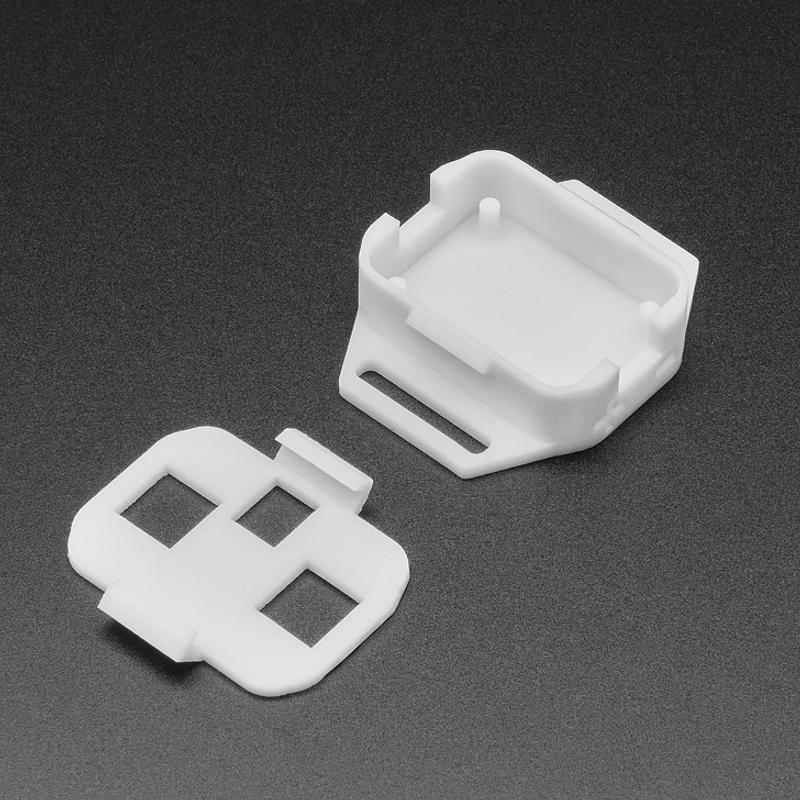

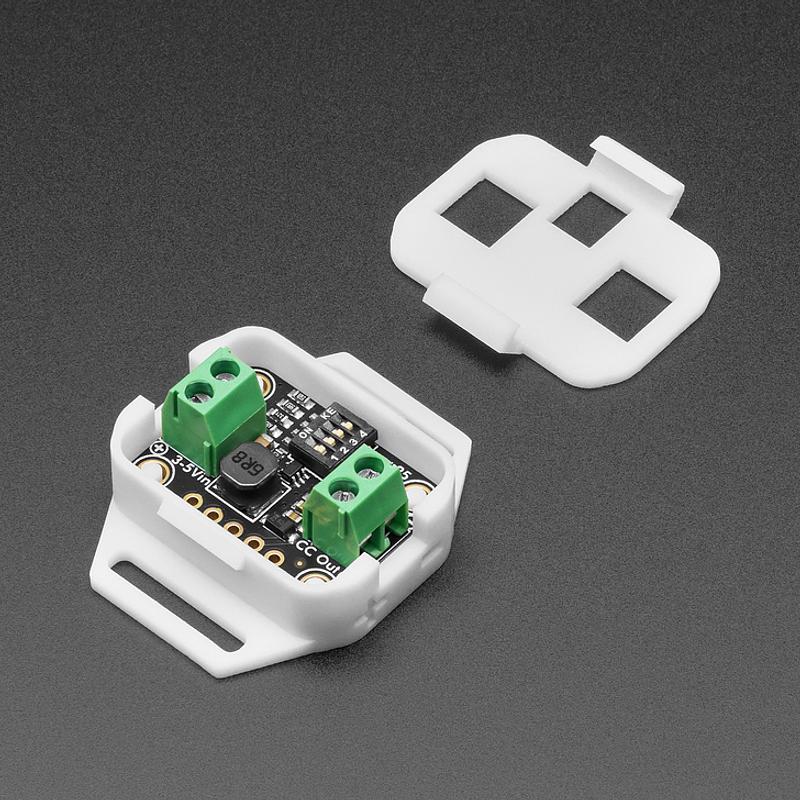

No screws or glue are needed: snap the board into the bottom piece, then assemble the top piece. Built-in ear mounts make it easy to attach the enclosed board to a surface in your project.
The case is made from translucent milky white plastic using an SLA process, giving it a smooth finish without visible print lines or blobbiness. No boards, cables, or accessories are included.
Specifications:
- 3D Case Files: .zip
Designed for the Adafruit TPS61169 Constant Current Boost Converter for LEDs only.
Jargon buster
Plain-language definitions for the technical terms used above.
- boost converter
- A boost converter is a switching power circuit that raises a lower input voltage to a higher output voltage. It is used when a device needs more voltage than its power source provides, for example running a 5 V sensor from a 3.3 V supply.
- breakout
- A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
- TPS61169
- The TPS61169 is a boost-style LED backlight driver chip used to power display backlights at a controlled current. It matters because TFT backlights often need a higher voltage and regulated current rather than being powered directly from a microcontroller pin.
