APA-104-1010 Addressable RGB SMD LED Pack of 20
· MPN: COM-25269
The APA-104-1010 is a tiny addressable RGB SMD LED for designs where full-colour control needs to fit into very little board space. Each LED uses a standard ...
Get notified when back in stock
The APA-104-1010 is a tiny addressable RGB SMD LED for designs where full-colour control needs to fit into very little board space. Each LED uses a standard one-wire data interface with data in and data out connections.

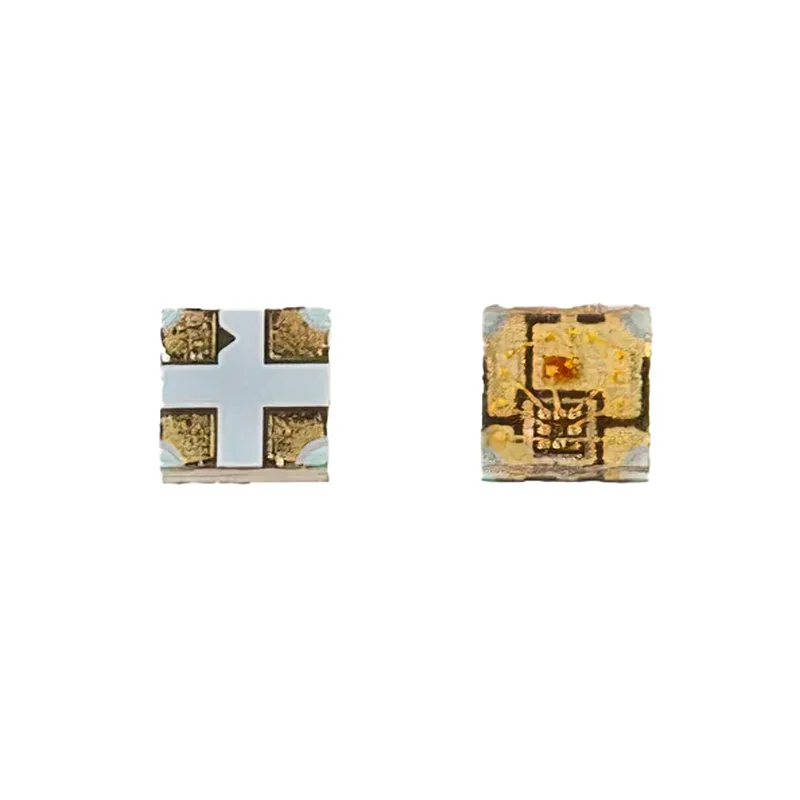

At just 1.0 x 1.0mm square, these microscopic LEDs are suited to dense layouts, wearables, miniature indicators and other compact lighting projects. They work well with the FastLED library and are compatible with other NeoPixel-compatible products.
This pack is supplied as a strip of 20 pieces, sealed with desiccant and a humidity indicator so the LEDs are ready for reflow. Documentation available from the supplier includes the APA-104-1010 datasheet, an example KiCad layout and example code.
Features:
- Addressable RGB: individually controllable colour LEDs
- One-wire interface: standard DI/DO data connection
- Library support: works great with the FastLED library
- NeoPixel compatibility: compatible with other NeoPixel-compatible products
- Reflow ready: supplied sealed with desiccant and a humidity indicator
Specifications:
- Model: APA-104-1010
- LED type: Addressable RGB SMD LED
- Interface: Standard one-wire (DI/DO) interface
- LED size: 1.0 x 1.0mm square
- Pack quantity: 20 pcs
- Supplied format: Strip of 20 pcs
- Packaging: Sealed with desiccant and a humidity indicator
