SMA Male to BNC Male Cable - 1 m (RG316)
· MPN: CAB-27480
This 1 metre RF coaxial cable adapts an SMA male connection to a BNC male connection, making it handy for test gear, antennas, RF modules and lab setups that...
Get notified when back in stock

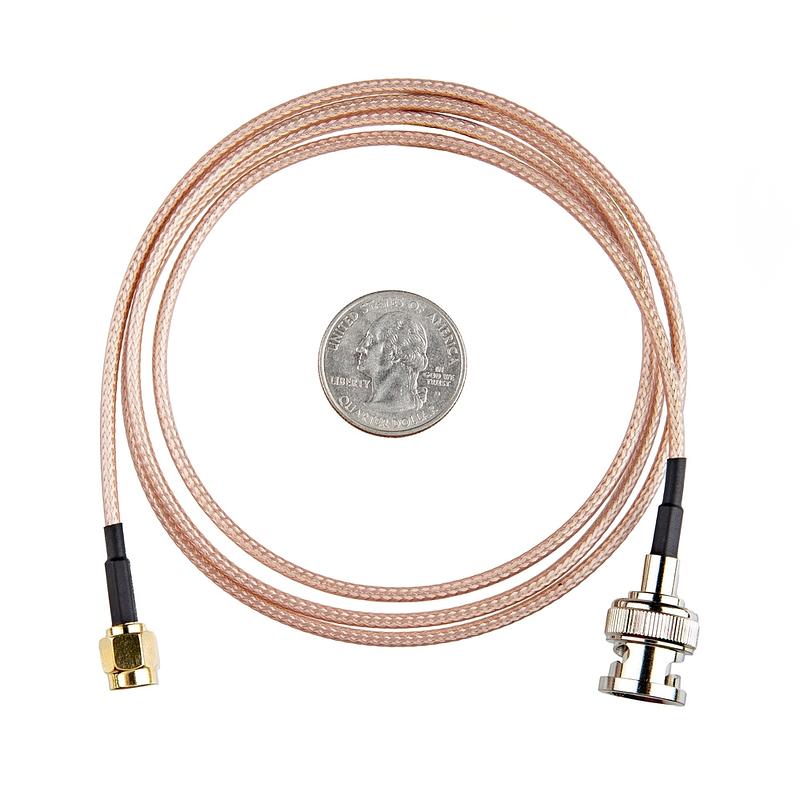

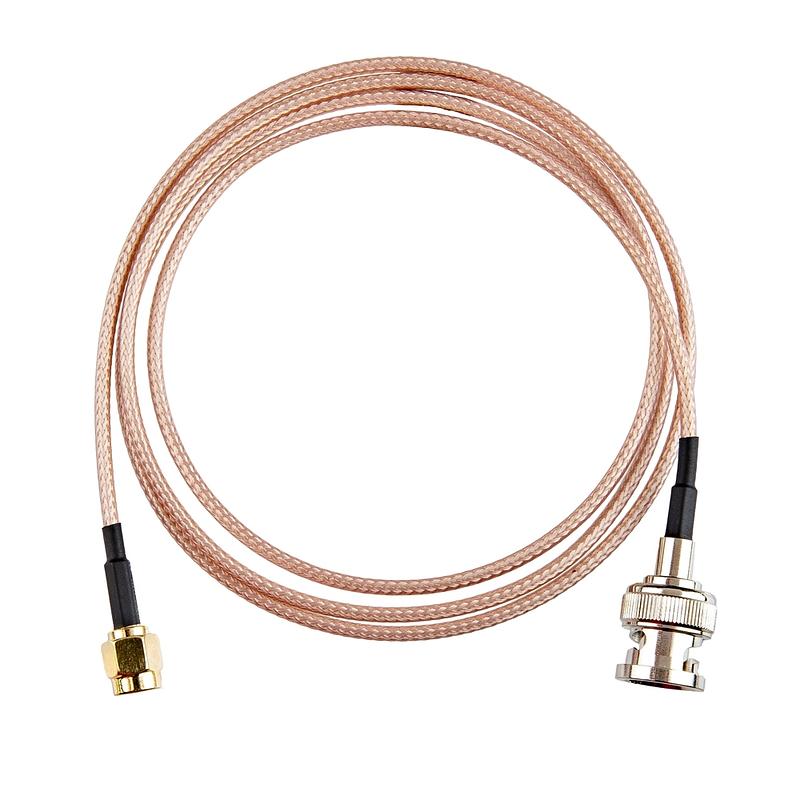

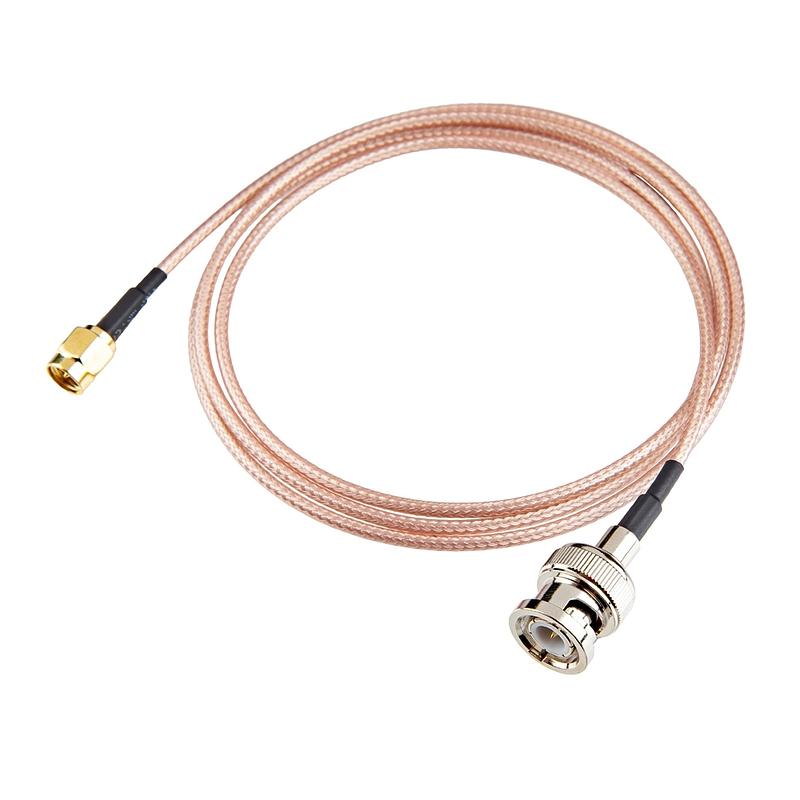

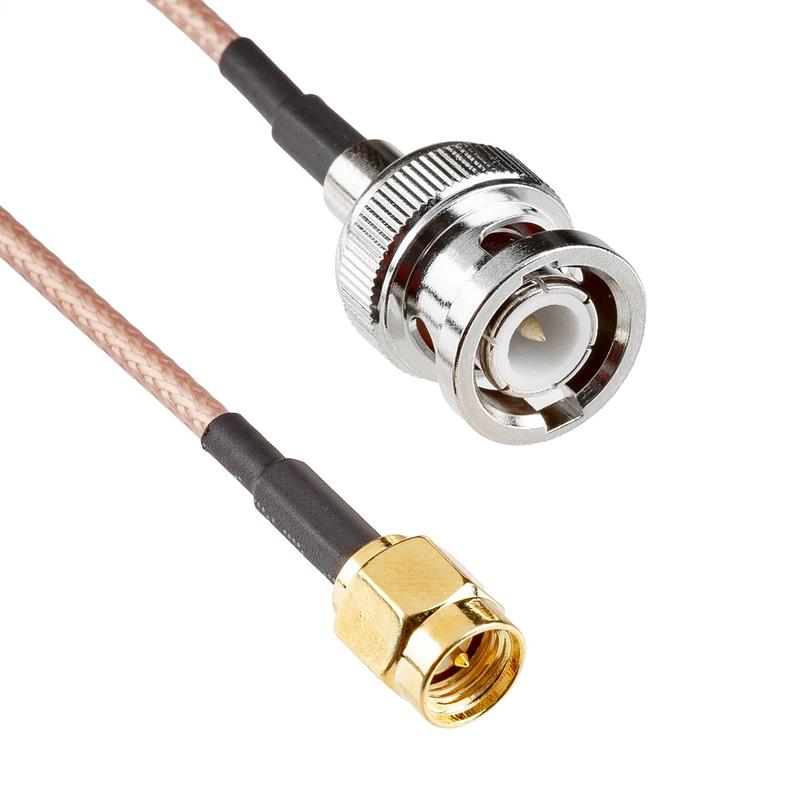

This 1 metre RF coaxial cable adapts an SMA male connection to a BNC male connection, making it handy for test gear, antennas, RF modules and lab setups that use mixed connector types.
It uses RG316-style coax shielding, which is suited to applications that need stable performance in higher-temperature environments.
Use it where you need a ready-made SMA-to-BNC lead without assembling or crimping your own cable.
Specifications:
- Connector: SMA male
- Connector: BNC male
- Length: 1m (3.2')
- Shielding: RG136 shielding
Jargon buster
Plain-language definitions for the technical terms used above.
- RF
- RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.
- SMA
- SMA is a small threaded coaxial (RF) connector widely used to attach antennas and other radio-frequency cables. A device with SMA antenna ports needs antennas or pigtails with matching SMA connectors, or a suitable adapter, to connect to them.
