Slide Pot - Small (10k Linear Taper)

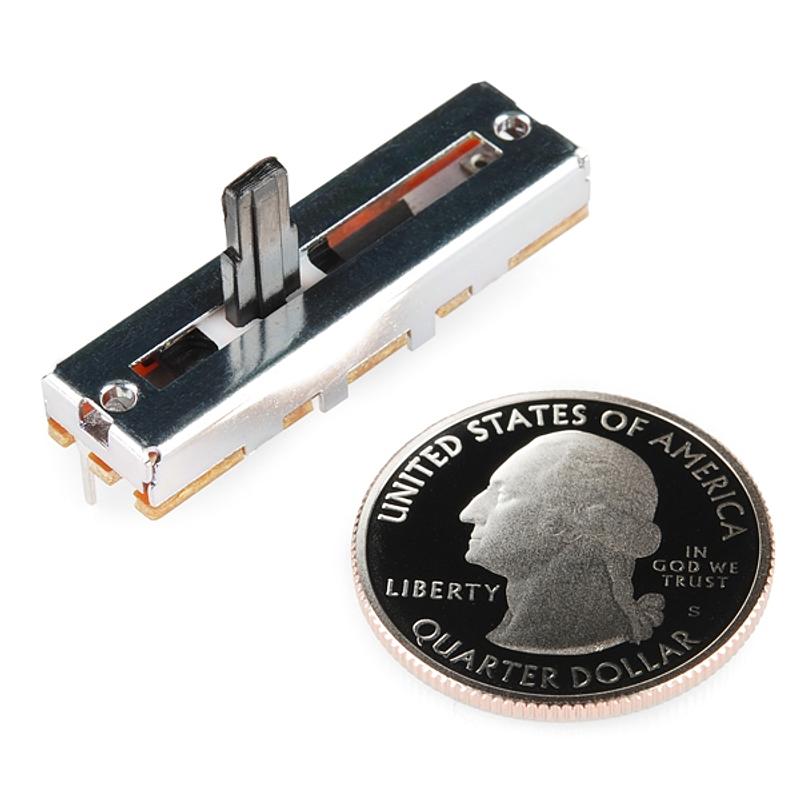

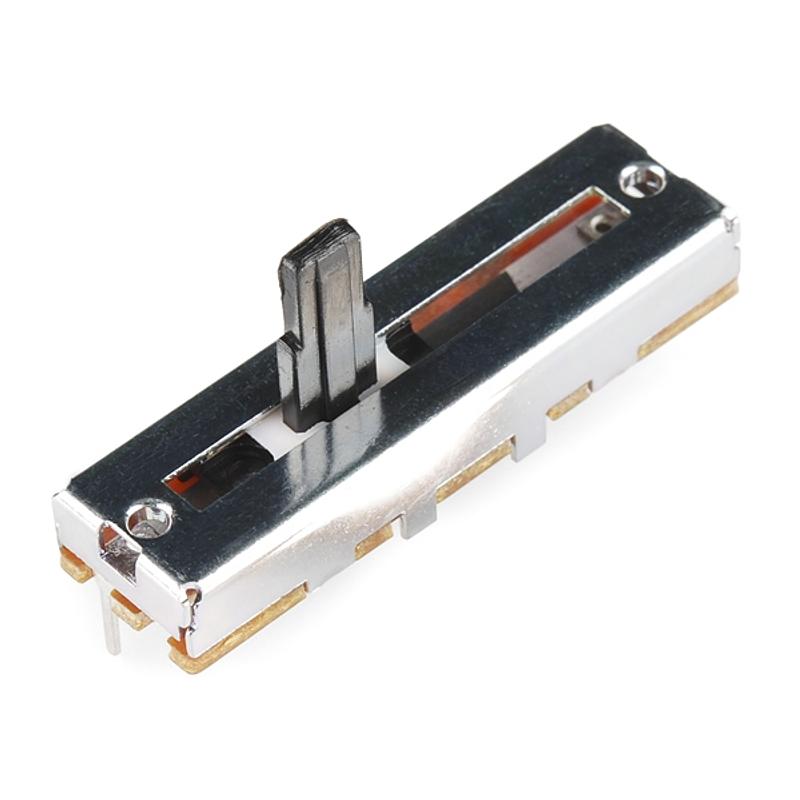

A compact linear-taper slide potentiometer rated at 10 kΩ and 0.1 W. This small slider features solder tab connections, a 20 mm travel distance, and two moun...
A compact linear-taper slide potentiometer rated at 10 kΩ and 0.1 W. This small slider features solder tab connections, a 20 mm travel distance, and two mounting holes for easy installation.
Key Features
- Linear Taper – Smooth, proportional resistance change across the travel range
- Solder Tab Connections – Easy to integrate into custom circuits
- Compact Size – 9.5 × 35 mm footprint suits space-constrained projects
- Mounting Holes – Two holes on top for secure panel mounting
Specifications
- Resistance – 10 kΩ
- Taper – Linear
- Power Rating – 0.1 W
- Travel – 20 mm
- Dimensions – 9.5 × 35 mm
- Part Number – C2031N-1A2-B10K-GP
Ideal For
- Audio volume and tone controls
- LED brightness adjustment
- Arduino and microcontroller input projects
- DIY mixer and control panel builds
Package Contents
- 1× Slide Potentiometer (10 kΩ Linear Taper)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- microcontroller
- A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.
- potentiometer
- A variable resistor usually turned with a knob or shaft to create an adjustable electrical signal. It is often used for inputs such as volume, brightness or position, so it helps beginners learn how a microcontroller reads changing values.
