Adafruit
Silicone-Covered Stranded Ribbon Cable - 10 Wire, 24 AWG
· MPN: ADA6181
This silicone-covered ribbon cable gives you a flexible, soft wiring harness for builds that need to bend and move. It is especially handy for wearables, rob...
This silicone-covered ribbon cable gives you a flexible, soft wiring harness for builds that need to bend and move. It is especially handy for wearables, robotics, props, portable electronics and other projects where standard PVC-insulated wire can feel too stiff.

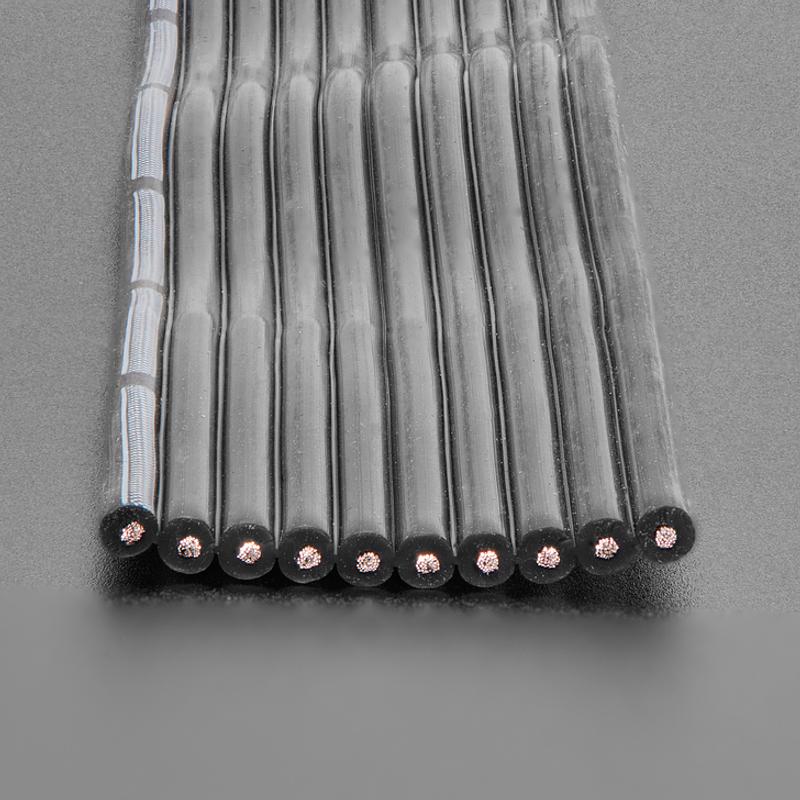

The cable has 10 joined conductors, so you can keep them together as a neat ribbon or pull and separate the number of wires you need. Each conductor is 24 AWG stranded wire with a silicone sheath.

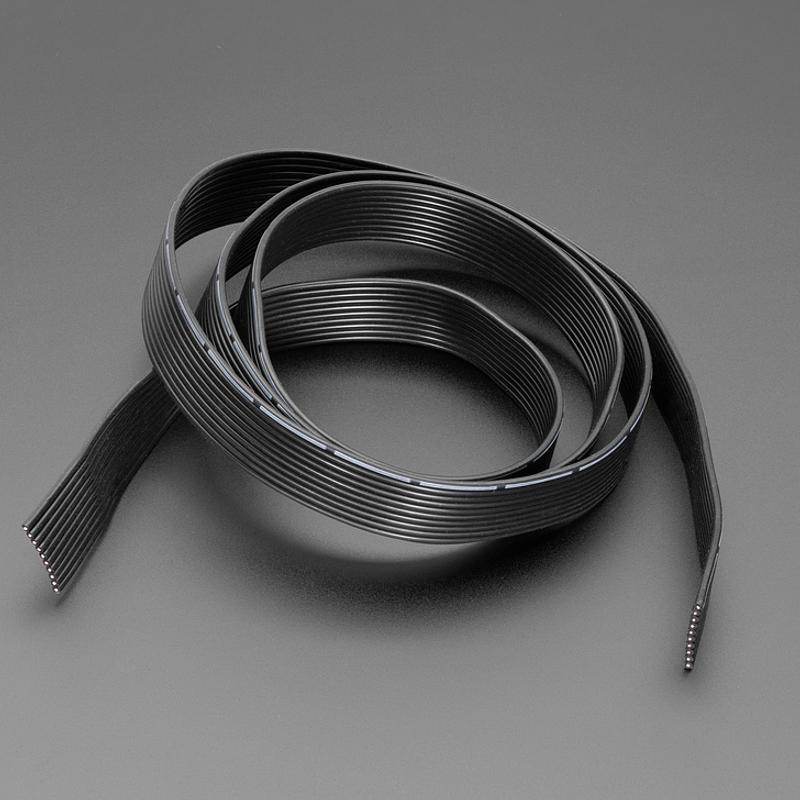

It is supplied as a 1 metre length and is rated for demanding use, handling up to 200°C and up to 600V.
Specifications:
- Wire count: 10 wires
- Length: 1 meter
- Wire gauge: 24 AWG stranded
- Outer diameter: 1.4mm
- Insulation: Silicone-sheathed wire
- Temperature handling: up to 200°C
- Voltage handling: up to 600V
- Technical Details: Datasheet
A good choice when you want a tidy multi-wire cable that remains supple, separates easily and copes with repeated bending.
Jargon buster
Plain-language definitions for the technical terms used above.
- AWG
- American Wire Gauge is a numbering system for wire thickness, where a lower number means a thicker wire. The AWG rating matters because thicker wire can usually carry more current with less voltage drop and heating.
