RJ45 Ethernet MagJack-Compatible
Ethernet is now ubiquitous with embedded systems. Before you can get your set-top box on the internet, you’ll need one of these single port, RJ45 ethernet...

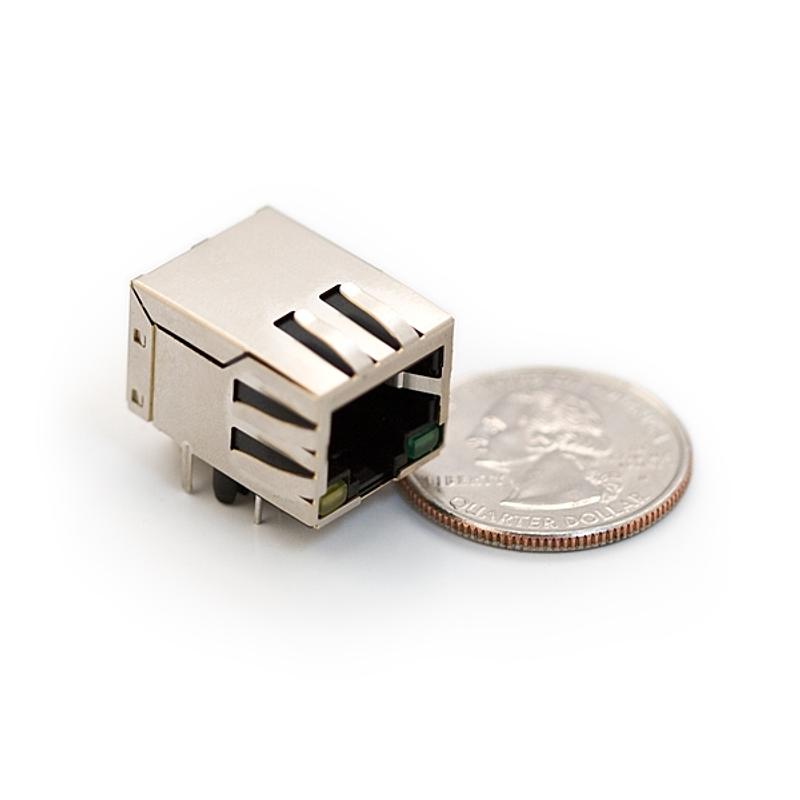

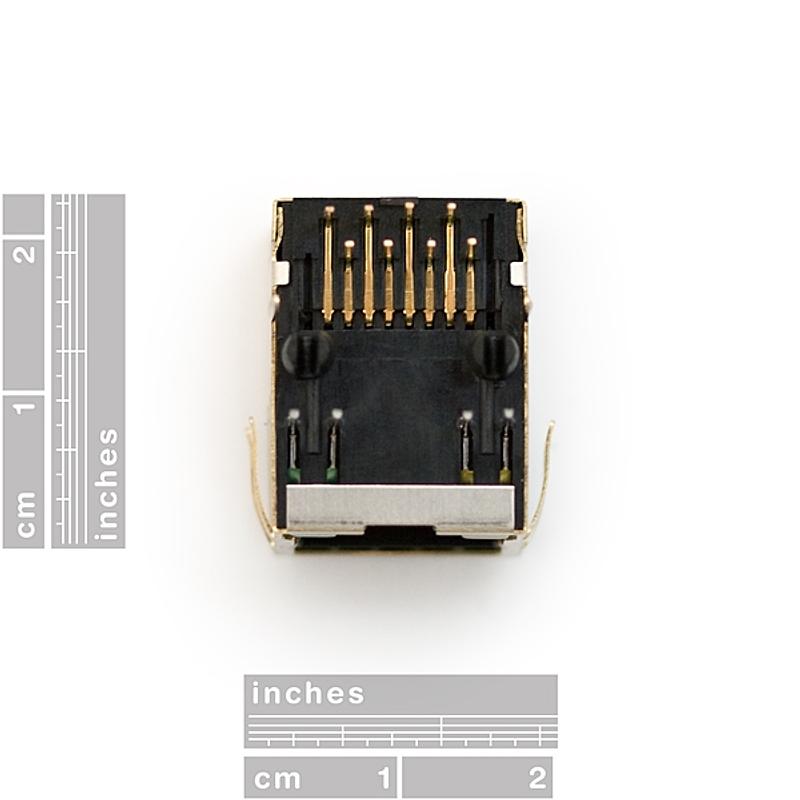

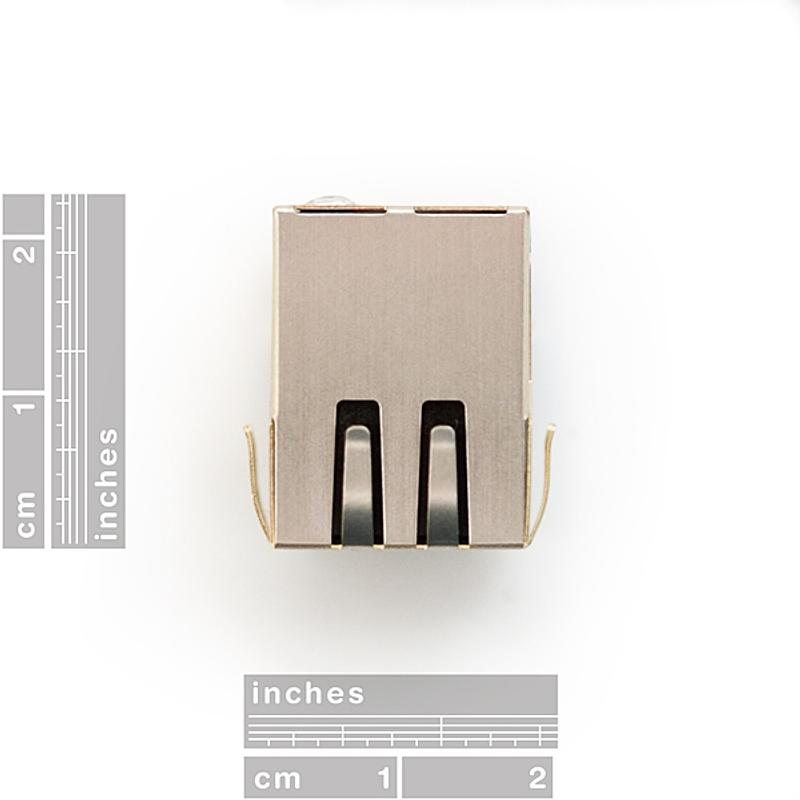

Ethernet is now ubiquitous with embedded systems. Before you can get your set-top box on the internet, you’ll need one of these single port, RJ45 ethernet jacks with built in transformer (magnetics), status LEDs, and shielding.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- RJ45
- The common plug and socket style used for wired Ethernet network cables. If a board has an RJ45 connector, you can usually plug it into standard Ethernet cabling without making a custom connector.
Find this product in
RJ45 Ethernet MagJack-Compatible Datasheet
Datasheet · 261.2 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 397.3 KB · Click any page to view full size
