Red Surface Mount LED - 1206
· MPN: COM-27913

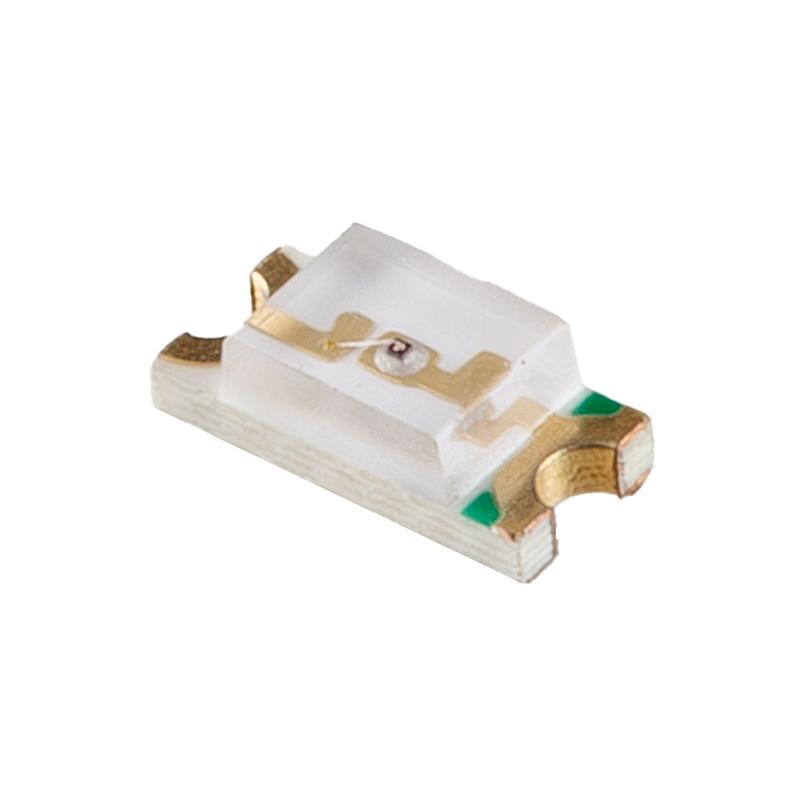

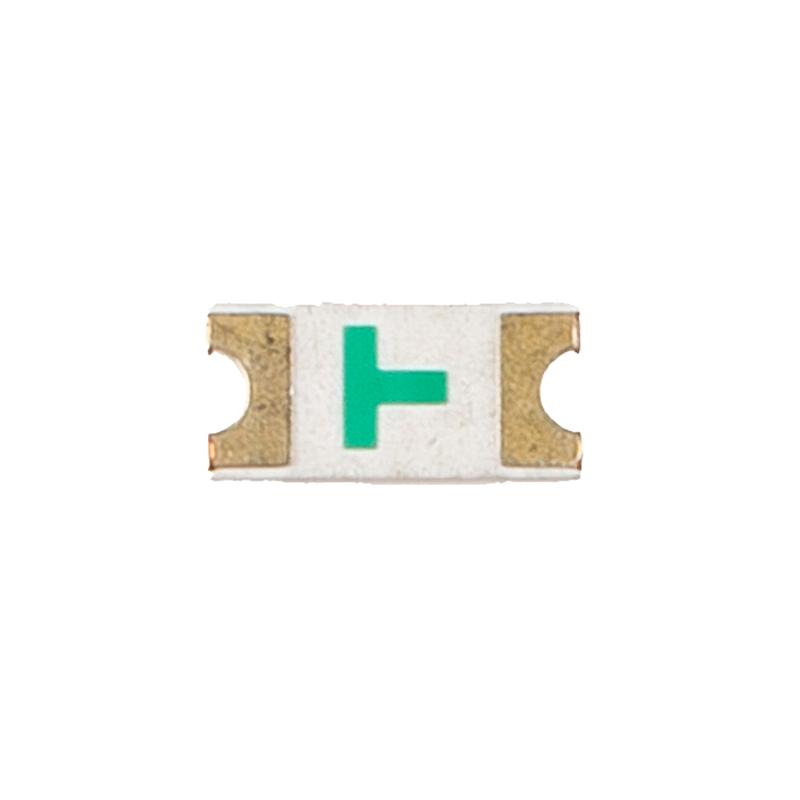

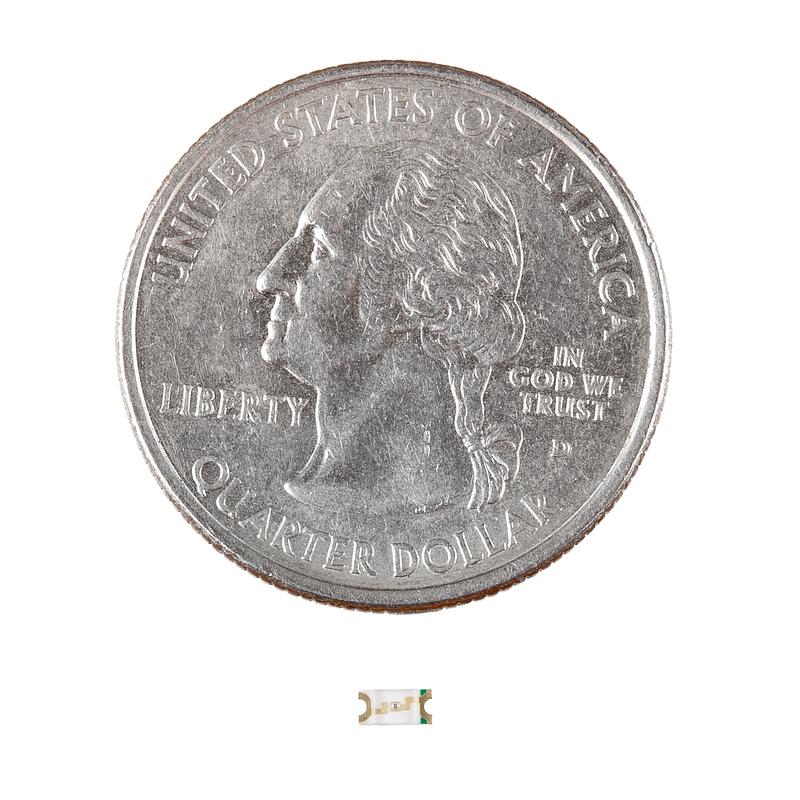

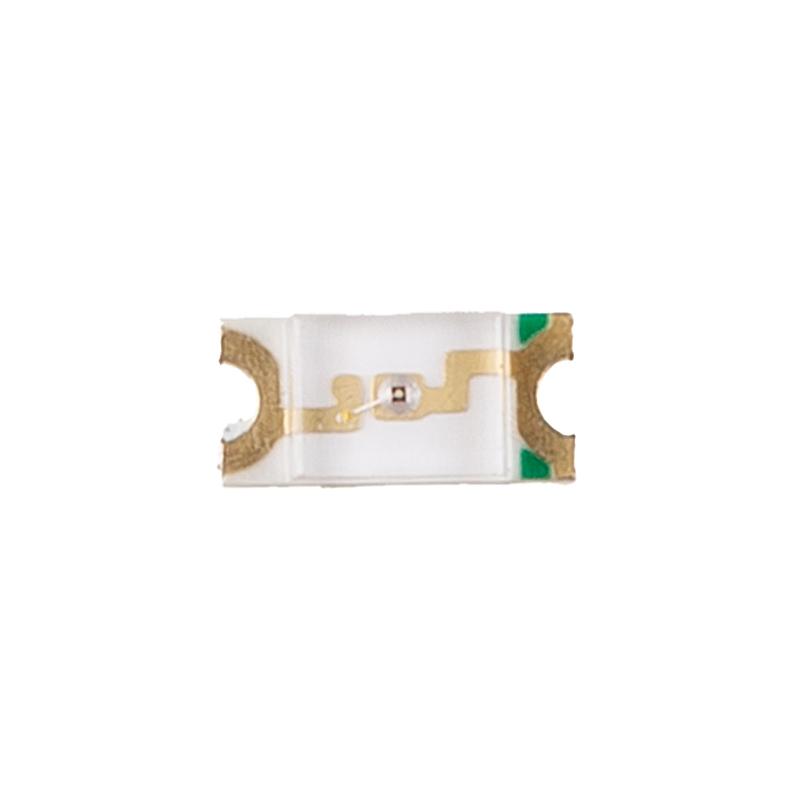

This compact 1206 package LED is a simple red indicator for surface mount PCB designs. It is the same red LED used on SparkFun RedBoard products and many oth...
This compact 1206 package LED is a simple red indicator for surface mount PCB designs. It is the same red LED used on SparkFun RedBoard products and many other boards.
It has a clear, colourless rectangular flat-top lens and a wide 130° viewing angle, making it suitable for status lights, power indicators and general visual feedback in maker and electronics projects.
A datasheet is available for detailed footprint and handling information.
Specifications:
- Color: Red
- Configuration: Standard
- Lens Color: Colorless
- Lens Transparency: Clear
- Millicandela Rating: 54mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 2.06mm x 1.60mm
- Voltage - Forward (Vf) (Typ): 2V
- Current - Test: 20mA
- Viewing Angle: 130°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 631nm
- Wavelength - Peak: 639nm
- Mfg Part #: LTST-C150KRKT
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
