Raspberry Pi Radio Module 2 (RMC20452T)
· MPN: WRL-29424
This compact, certified wireless module is designed for integration into custom PCBs and microcontroller products. It combines the Infineon CYW43439 chipset ...
Get notified when back in stock

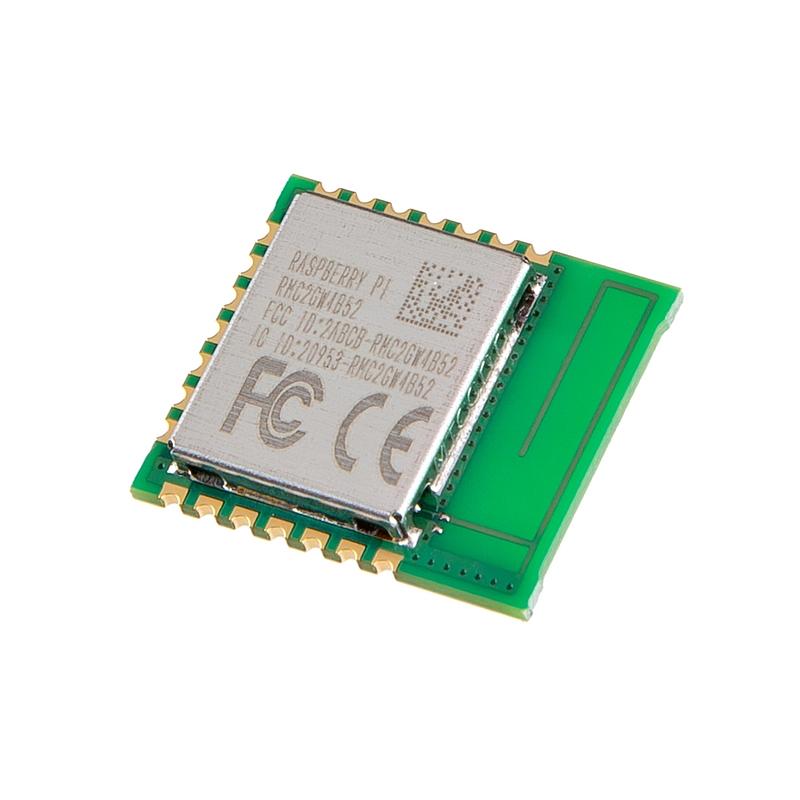

This compact, certified wireless module is designed for integration into custom PCBs and microcontroller products. It combines the Infineon CYW43439 chipset with single-band 2.4 GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2 Classic + LE, using a SISO architecture with integrated PA, LNA and a shared 2.4 GHz antenna.
Using a pre-certified radio module helps reduce RF design complexity and the number of external components needed for wireless connectivity. It is suited to OEM and embedded designs where Wi-Fi and Bluetooth need to be added without starting the radio design from scratch.
The module uses a low-pin-count gSPI host interface and provides three host-controlled GPIOs for extra I/O flexibility. It is supplied in a 21-pad castellated package for mounting to your own board and is compatible with the Raspberry Pi Pico SDK.
Features:
- Chipset: Infineon CYW43439 Wi-Fi + Bluetooth combo chipset
- Wi-Fi: Wi-Fi 4 (802.11n), 2.4 GHz band only, up to 96 Mbps PHY data rate
- Bluetooth: Bluetooth 5.2 (Classic + BLE), ~100 m range (Class 1), ~10 m range (Class 2)
- RF integration: Integrated PA, LNA, and shared 2.4 GHz antenna
- Host interface: low-pin-count gSPI
- Additional I/O: 3 host-controlled GPIOs
- Software compatibility: Raspberry Pi Pico SDK
- Certification: Full modular certifications (radio/regulatory)
- Production lifetime: Guaranteed production until at least January 2036
Specifications:
- Chipset: Infineon CYW43439 Wi-Fi + Bluetooth combo chipset
- Wi-Fi: Wi-Fi 4 (802.11n), 2.4 GHz band only, up to 96 Mbps PHY data rate
- Bluetooth: Bluetooth 5.2 (Classic + BLE), ~100 m range (Class 1), ~10 m range (Class 2)
- RF integration: Integrated PA, LNA, and shared 2.4 GHz antenna
- Host interface: low-pin-count gSPI
- Additional I/O: 3 host-controlled GPIOs
- Power consumption: Idle (PM1, DTIM1): ~1.19 mA
- Receive at –50 dBm: ~43 mA
- Transmit at 16 dBm: ~271 mA
- Operating voltage: supplied via host (typical 3.3 V I/O domain)
- Operating temperature range: –30 °C to +70 °C

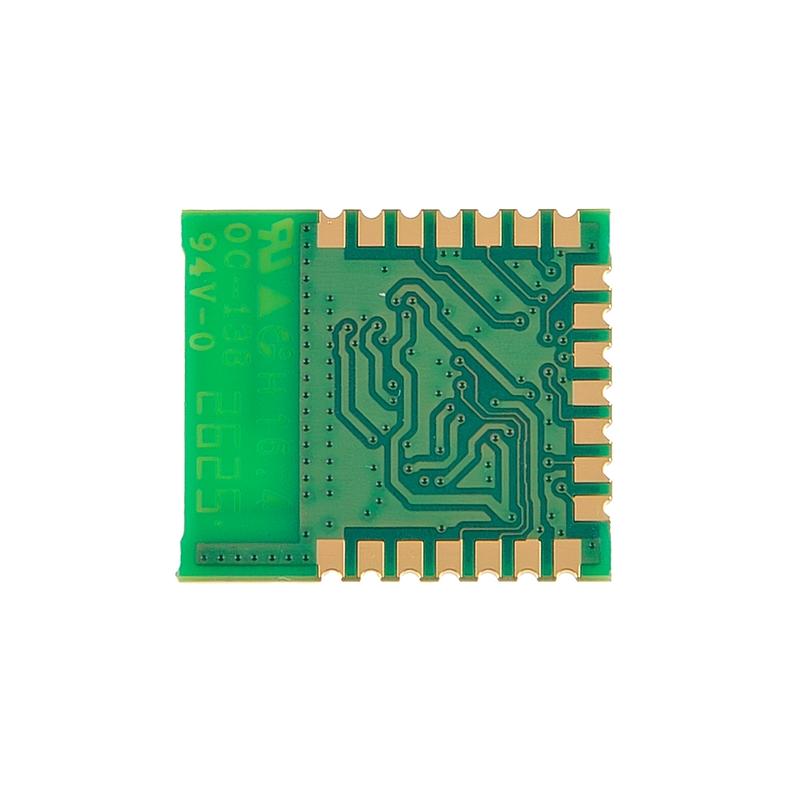

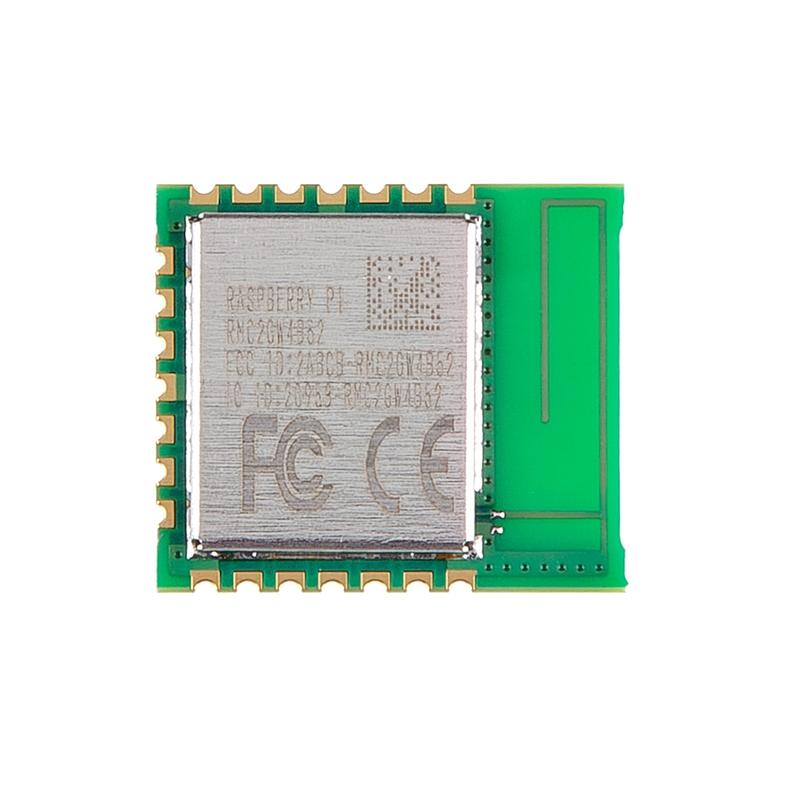

- Package: 21-pad castellated module

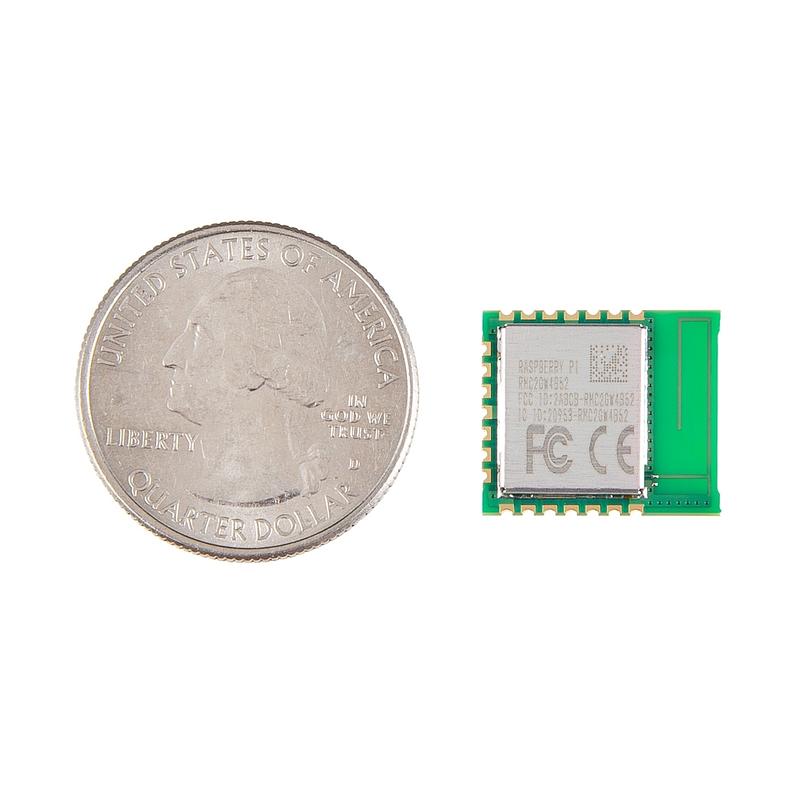

- Dimensions: 16.5 mm × 14.5 mm × ~2.55 mm
- Software compatibility: Raspberry Pi Pico SDK
- Certifications: Full modular certifications (radio/regulatory)
- Guaranteed production: until at least January 2036
A practical module for product designers adding Raspberry Pi Pico SDK-compatible Wi-Fi and Bluetooth connectivity to embedded hardware.
Jargon buster
Plain-language definitions for the technical terms used above.
- BLE
- BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for low power use and broad compatibility with modern phones and computers. It connects well to battery-powered and mobile devices, including Apple hardware, though it behaves differently from Bluetooth Classic and its serial-style profiles.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- RF
- RF means radio frequency, referring to signals used for wireless communication and other high-frequency electronics. A low-noise, stable power supply is important for RF circuits because power noise can affect signal quality and measurements.
