Polarized Connectors - Crimp Pins
Individual crimp pins for use with polarized connector housings. These pins prevent incorrect or reversed connections, making them ideal for power, sensor, a...
Get notified when back in stock

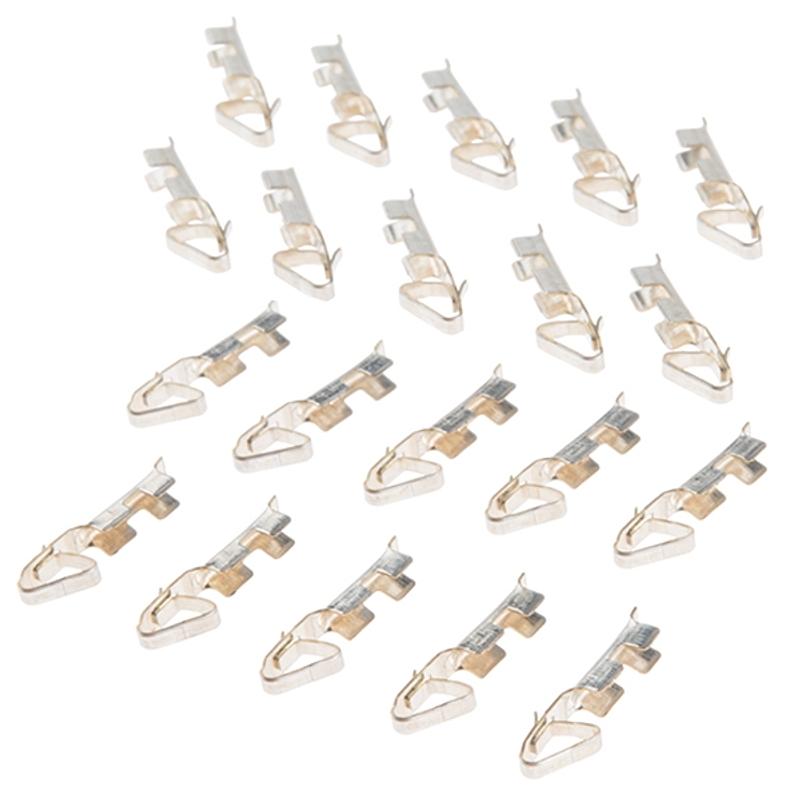

Individual crimp pins for use with polarized connector housings. These pins prevent incorrect or reversed connections, making them ideal for power, sensor, and general-purpose wiring on perfboard and PCB projects.

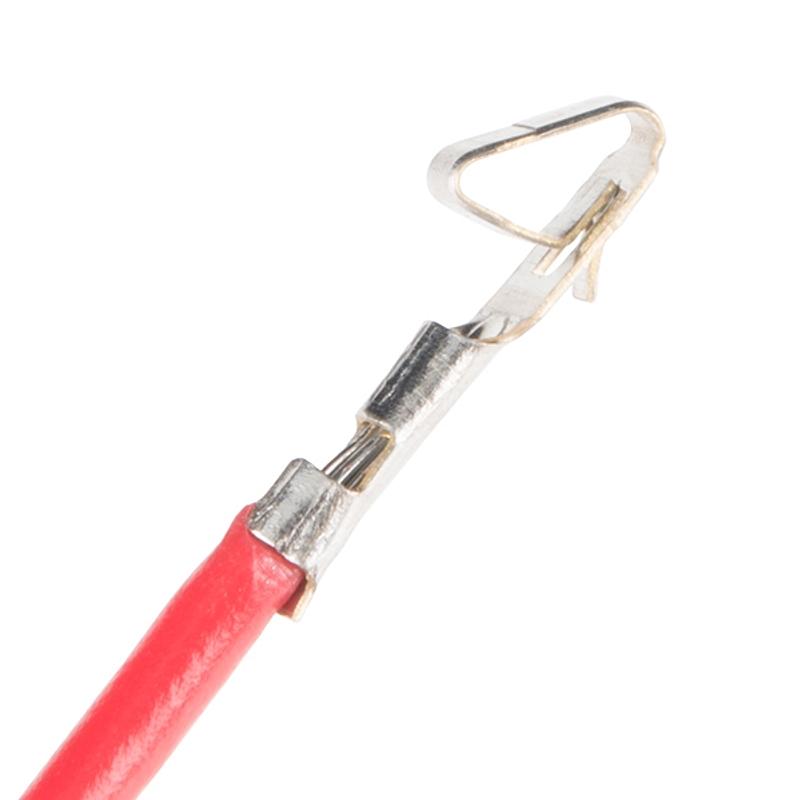

Attach using needle-nose pliers and a soldering iron — no special crimping tools required. Be sure to order the matching polarized header and housing separately.
Key Features
- Polarized Design – Prevents incorrect or reversed connections
- No Special Tools – Crimp with needle-nose pliers and solder for a secure connection
- Pack of 20 – Enough pins for multiple connectors
Specifications
- Type – Crimp pins for polarized connectors
- Quantity – 20 per pack
Ideal For
- Power connections on custom PCBs and perfboard
- Sensor and peripheral wiring with polarity protection
- Custom cable assemblies
Package Contents
- 20× Crimp Pins
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
