Pogo Pin w/ Pointed Tip
These 33mm (1.3") spring loaded pogo pins are great for programming and applications where you don’t always want headers soldered onto your boards. We use th...
Get notified when back in stock

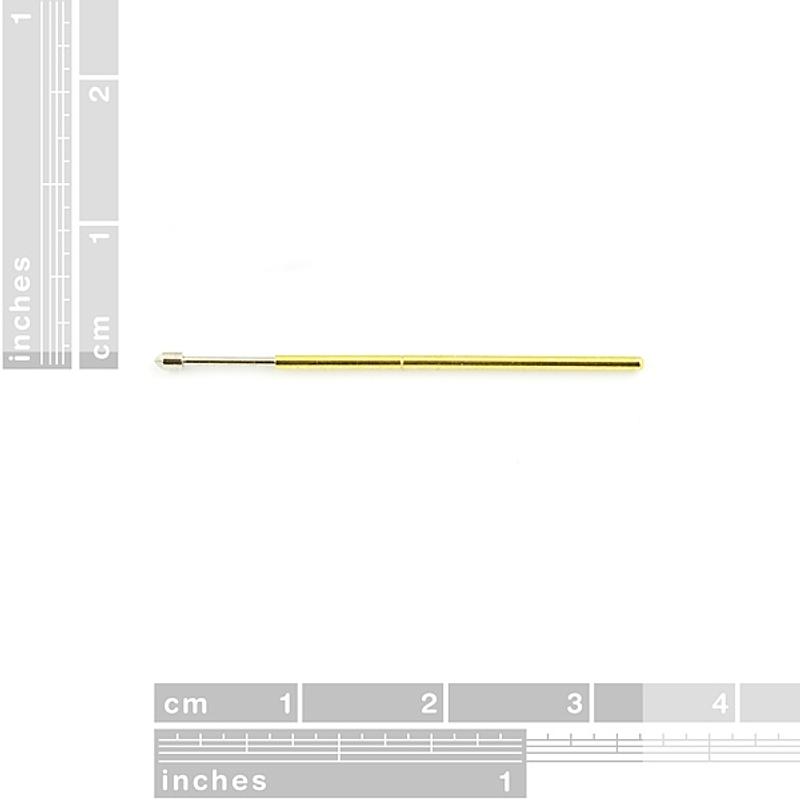

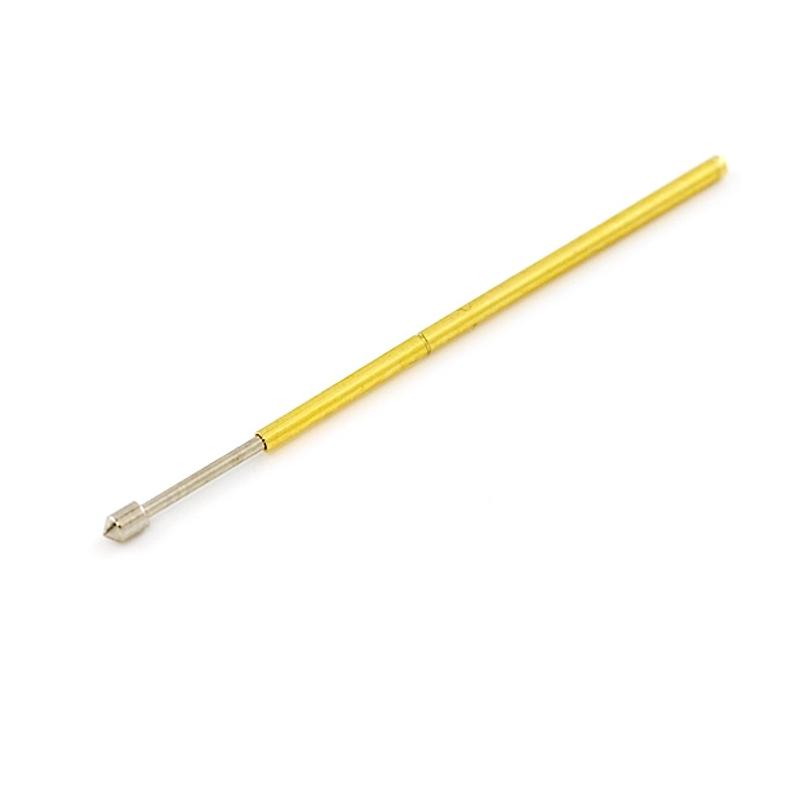

These 33mm (1.3") spring loaded pogo pins are great for programming and applications where you don’t always want headers soldered onto your boards. We use them for our programming jigs in production. The pins fit snugly into most standard perf board holes. Solder them just like you would normal wire. This unit has a conical pointed tip.
Dimensions:
- Length: 1.3" (33mm)
- Travel: ¼" (6.5mm)
- Head size 0.05" (1.3mm)
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
Find this product in
Brands
Prototyping & Wiring
Pogo Pin P111E Drawing
Mechanical Drawings · 328.6 KB · Click any page to view full size
Pogo Pin Dimensional Drawing
Mechanical Drawings · 20.8 KB · Click any page to view full size
