PICAXE 8 Pin Proto Kit
The PICAXE 8 Pin Proto Kit is a beginner-friendly kit for getting started with 8-pin PICAXE microcontrollers. It includes a handful of easy-to-solder through...
Get notified when back in stock

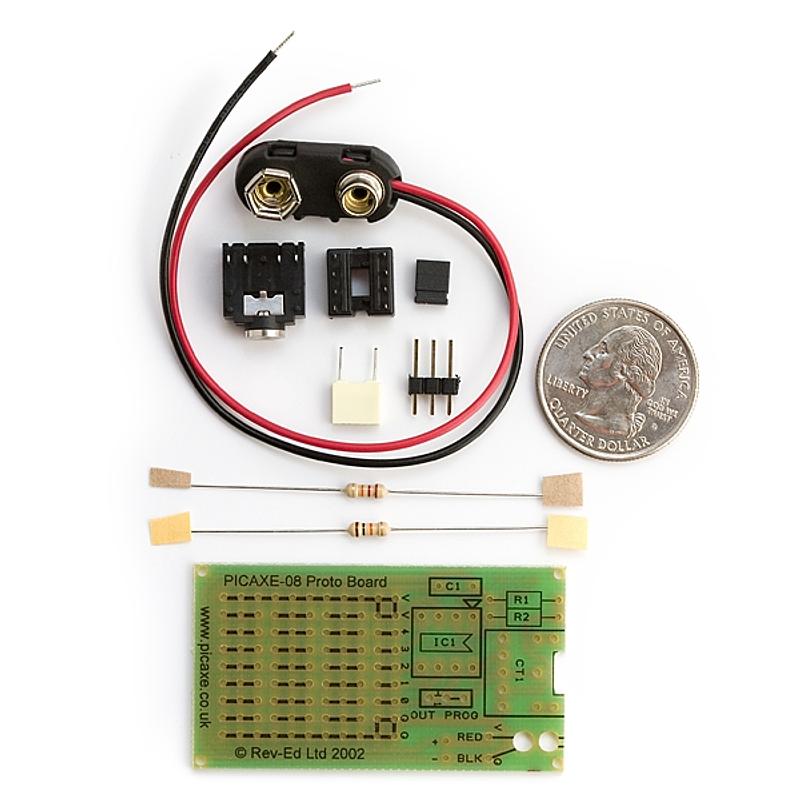

The PICAXE 8 Pin Proto Kit is a beginner-friendly kit for getting started with 8-pin PICAXE microcontrollers. It includes a handful of easy-to-solder through-hole components and a proto board, making it an ideal first project for learning microcontroller basics.
The kit includes a battery snap for power, but the board must only be driven at 4.5–5 V. A 3×AA battery pack is recommended instead of a 9 V battery to prevent damage to the board.
Key Features
- Beginner-Friendly – Through-hole components are easy to solder, no surface-mount work required
- PICAXE Compatible – Designed for 8-pin PICAXE microcontrollers (sold separately)
- Proto Board Layout – Simple PCB layout for learning and experimentation
- Battery Powered – Runs on 4.5–5 V via the included battery snap
Ideal For
- Beginners learning to solder and program microcontrollers
- PICAXE microcontroller projects
- Educational electronics workshops
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
