M2.5-0.45 x 8mm Phillips Pan Head Machine Screw

Name: M2.5-0.45 x 8mm Phillips Pan Head Machine Screw
Brand: SparkFun
SKU: SF-PRT-28764
Price: 0.3 AUD
Availability: InStock

· MPN: PRT-28764

Enclosures & Hardware Standoffs & Screws

$0.30 |

In stock at supplier

No reviews yet

This M2.5-0.45 machine screw is a small Phillips-head fastener suited to electronics assemblies, enclosures and board mounting jobs.The 8.0mm long thread is ...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

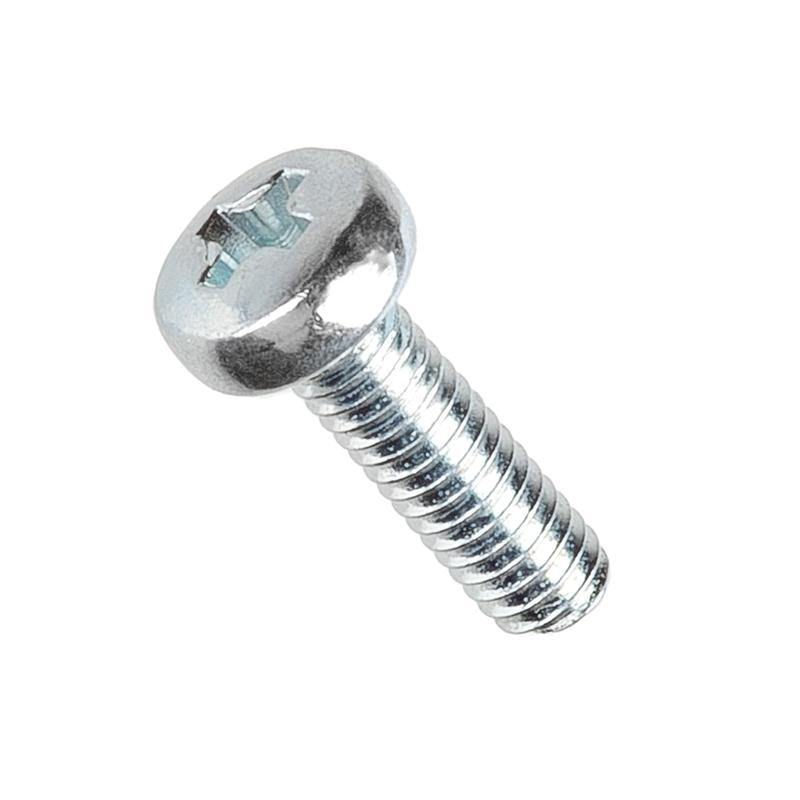

This M2.5-0.45 machine screw is a small Phillips-head fastener suited to electronics assemblies, enclosures and board mounting jobs.

The 8.0mm long thread is handy for Raspberry Pi pHAT standoffs and other compact hardware builds. It is made from steel with a zinc finish to DIN7985A.

Sold individually, so you can order exactly the quantity needed for repairs, prototypes or spares.

Specifications:

Size: M2.5-0.45
Length: 8mm
Head Style: Pan Head
Drive Style: Phillips
Head Diameter: 4.7 - 5.0
Head Height: 1.88 - 2.12
Full / Partial Thread: Full
Driver Size: 1
Material: Steel
Finish: Zinc
DIN Standard: DIN7985A

Jargon buster

Plain-language definitions for the technical terms used above.

DIN: DIN means data in, the pin where this display receives data from the controller. Connecting DIN to the correct SPI data output pin is needed for the screen to receive pixel and command information.
M2.5: A metric screw thread size with a 2.5 mm nominal diameter. It matters for mounting because screws, standoffs, and holes must use the same size to fit securely without damaging the board.
pHAT: A smaller add-on board format for Raspberry Pi, similar in idea to a HAT but usually not full-sized. It matters because pHAT compatibility can affect how neatly a board stacks or fits into a Raspberry Pi project.
Thread: A low-power wireless mesh networking standard designed for smart home and IoT devices. It matters because Thread devices can relay messages through each other, helping build reliable networks for sensors and controllers.
