PB86 Step Switch Breadboard Breakout PCB (Pack of 12)
· MPN: ADA5631
This break-apart panel gives you 12 PB86 step switch breakout PCBs, making these colourful sequencer-style switches much easier to use in a breadboard, perfb...
Get notified when back in stock

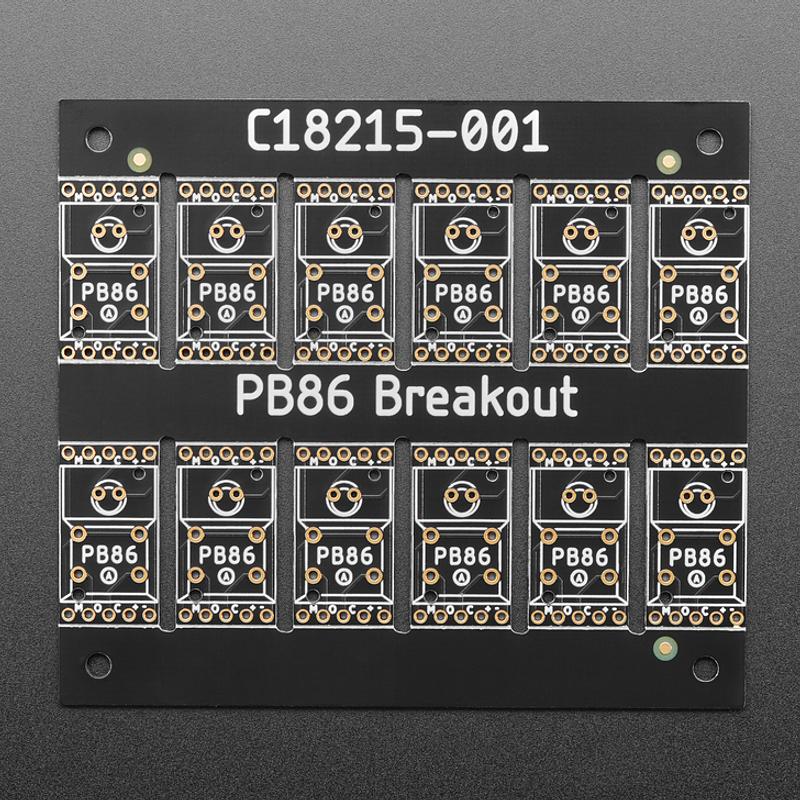

This break-apart panel gives you 12 PB86 step switch breakout PCBs, making these colourful sequencer-style switches much easier to use in a breadboard, perfboard or DIY synth build.

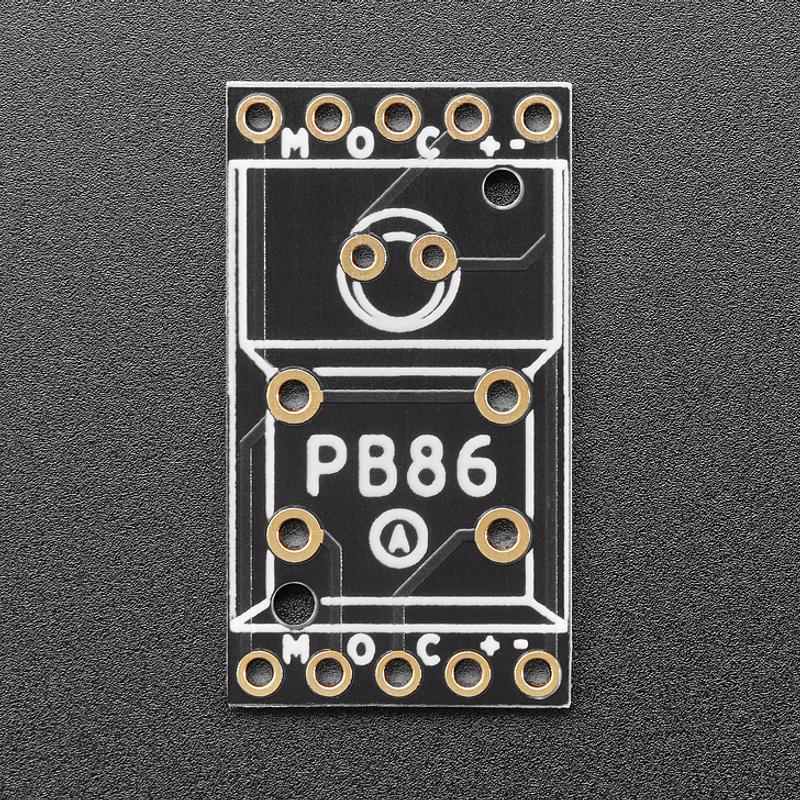

The original switches are not breadboard or perfboard friendly, so these assembled breakouts save you from hand-wiring each one or designing your own PCB footprint. Snap the individual boards apart, solder them up, and add suitable headers if you want to plug them into a breadboard.

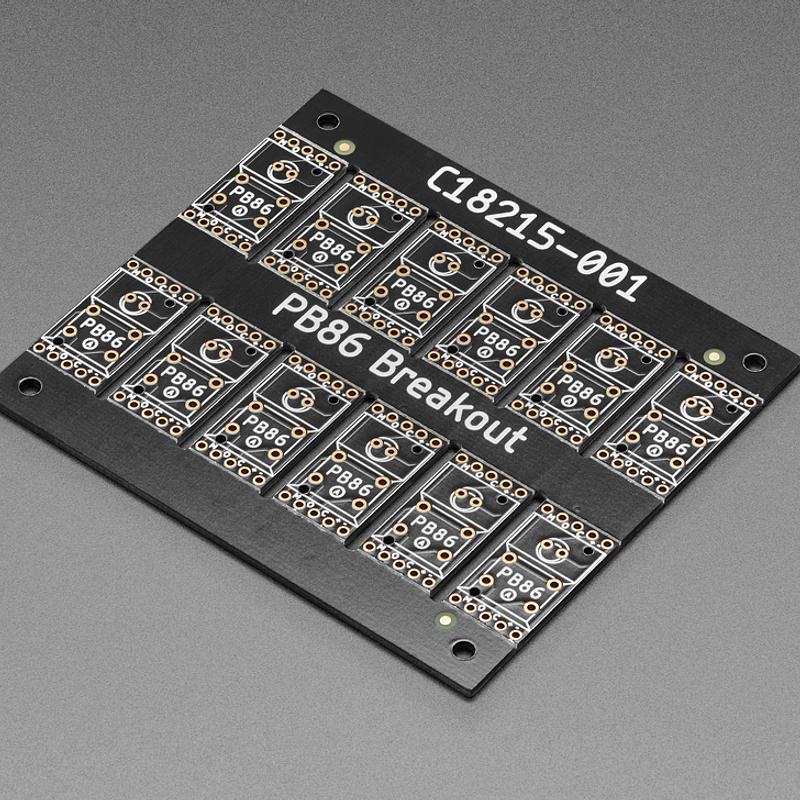

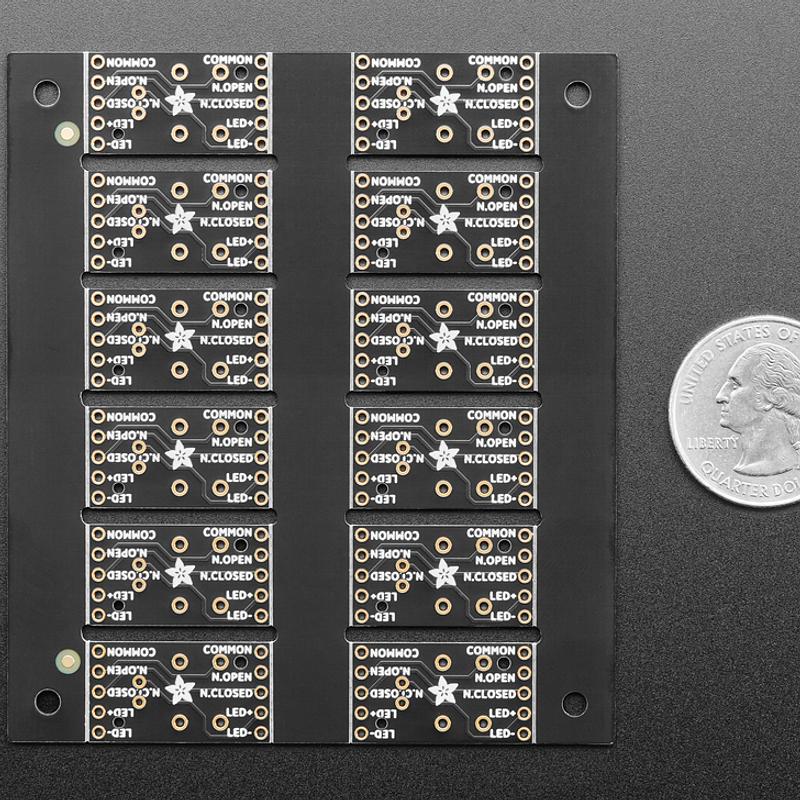

Each order includes one sheet of assembled PCBs with top and bottom railing bits to help keep the panel flat during shipment. Headers are not included.
Specifications:
- GitHub Repository: Available from Adafruit
A handy starting point for DIY sequencers, synth controls, step buttons and other electronic music projects.
