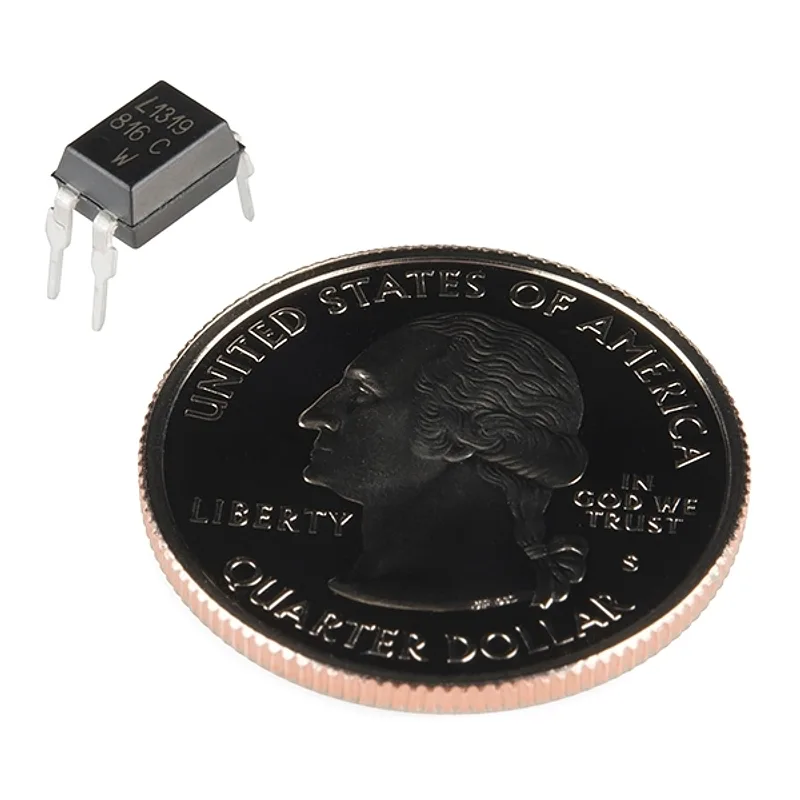

This HCPL-817 opto-isolator provides a single isolated channel for letting a simple microcontroller switch an external load. It is useful when you want to separate low-voltage control electronics from circuits driving relays, small motors or similar loads.

The device comes in a 4-pin DIP through-hole package, making it straightforward to use on a breadboard, prototyping board or custom PCB. It can switch up to 50mA on its output channel.

Sold as an individual unit. A datasheet and example schematic are available from the supplier documentation.

Specifications:

  • Voltage - Isolation: 5000Vrms
  • Current Transfer Ratio (Min): 50% @ 5mA
  • Current Transfer Ratio (Max): 600% @5mA
  • Rise / Fall Time (Typ): 4µs, 3µs
  • Input Type: DC
  • Output Type: Transistor
  • Voltage - Output (Max): 80V
  • Current Output / Channel: 50mA
  • Voltage - Forward (Vf) (Typ): 1.2V
  • Current - DC Forward (If) (Max): 50mA
  • Vce Saturation (Max): 200mV
  • Operating Temperature: -30°C ~ 110°C
  • Mounting Type: Through Hole

Find this product in

LTV-816S Optoisolator Datasheet

Datasheet · 360.9 KB · Click any page to view full size

Download PDF

Supplier page — sparkfun.com

Supplier Description · 372.9 KB · Click any page to view full size

Download PDF
Stella
Stella Expert

Ask me anything about this product

Jargon buster

Plain-language definitions for the technical terms in the product description.

DC
DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
microcontroller
A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
PCB
A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
through-hole
A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
