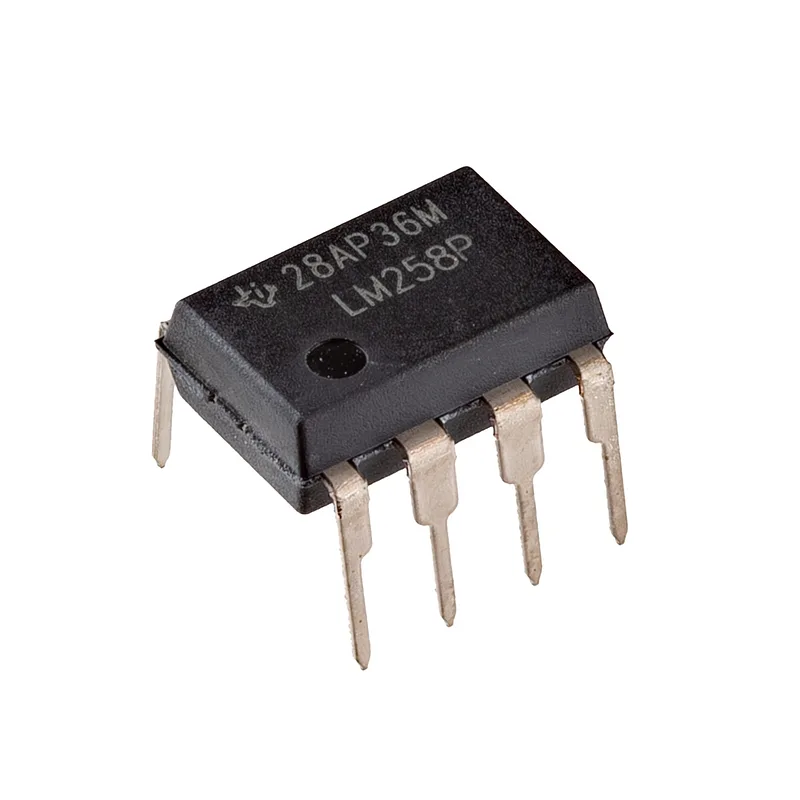

LM258P Dual Op-Amp - Through-Hole DIP
· MPN: COM-27840
The LM258P is an easy-to-use dual-channel operational amplifier for breadboard-friendly and through-hole electronics projects. It is suited to common op-amp ...
Get notified when back in stock
The LM258P is an easy-to-use dual-channel operational amplifier for breadboard-friendly and through-hole electronics projects. It is suited to common op-amp circuits such as transducer amplifiers, DC gain blocks and general analogue signal conditioning.
This IC gives you two individual op-amps in a single 8-pin DIP package, making it a handy choice when you need dual amplifier stages from a single power supply.
With a 3-32VDC supply span and through-hole mounting, it is a practical standard op-amp for prototyping, repairs and educational builds. A datasheet is available for circuit design and pinout reference.
Specifications:
- Number of Circuits: 2
- Slew Rate: 0.3V/µs
- Gain Bandwidth Product: 700kHz
- Current - Input Bias: 20nA
- Voltage - Input Offset: 3mV
- Current - Supply: 500µA (x2 Channels)
- Current - Output / Channel: 40mA
- Voltage - Supply Span (Min): 3V
- Voltage - Supply Span (Max): 32V
- Operating Temperature: -25°C ~ 85°C (TA)
- Mounting Type: Through Hole
A solid choice for makers who need a standard dual op-amp in a DIP package for analogue amplifier and conditioning circuits.
