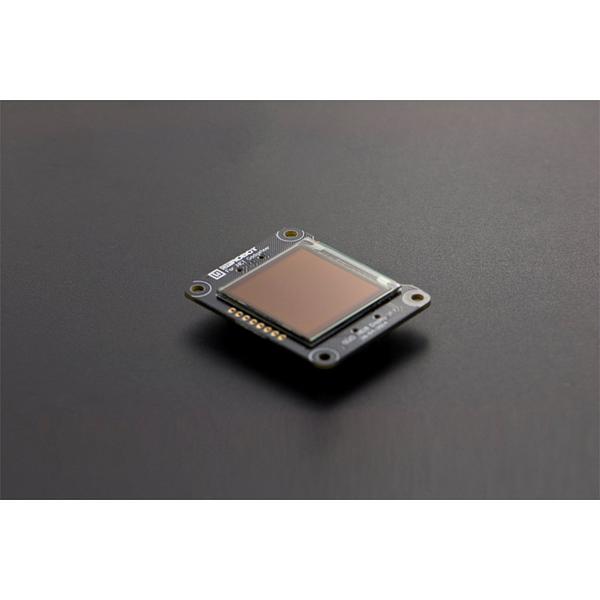

OLED 2828 Display Module (Arduino Compatible)

$42.97

Part Number:  DF-TOY0005
Brand:  DFRobot Australia

Introduction An OLED display works without a backlight. Thus, it can display deep black levels and can bethinner and lighter than a liquid crystal display (LCD). In low ambient light conditions such as a dark room an OLED screen can achieve a higher contrast ratio than an LCD. OLEDtechnology is used in commercial applications such as displays for mobile phones and portabledigital media players, car...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Introduction

An OLED display works without a backlight. Thus, it can display deep black levels and can bethinner and lighter than a liquid crystal display (LCD). In low ambient light conditions such as a dark room an OLED screen can achieve a higher contrast ratio than an LCD. OLEDtechnology is used in commercial applications such as displays for mobile phones and portabledigital media players, car radios and digital cameras among others.

Support arduino controller and other 3.3V microcontroller.

Specification

  • Operating Voltage:3.3V,5V
  • 262,144k Colors(max)
  • 128×128 RGB pixel resolution
  • Interface:SPI or Gadgeteer
  • Operating emperature:-30℃ ~ +70℃
  • OLED Size:26.855 × 26.864(mm)
  • Module Size:52.00 × 42.00(mm)
  • Weight:20 g
  • Size:1.5 inch
  • Driver IC:SSD1351
Pins Identification
Arduino port
  • 3.3:Logic power3.3V
  • 5V:OLED power 5V (through boost circuit to supply 13V to screen)
  • G:GND
  • RST:reset
  • SCK:SCK
  • SI:MOSI
  • CS:Chip Select
  • DC:D/C

Documents

Shipping List

  • OLED 2828 diaplay module x1
  • 1.27mm IDC10 cable x1
