nOOds Flexible LED Filament - Pink 24V 1.2m

Name: nOOds Flexible LED Filament - Pink 24V 1.2m
Brand: Adafruit
SKU: AF-6436
Price: 47.62 AUD
Availability: InStock

· MPN: ADA6436

Filament & Decorative LEDs

$47.62 |

In stock at supplier

No reviews yet

Add a soft pink neon-style glow to miniature scenes, props and lighting projects with this flexible LED filament. It is made from dozens of micro LED diodes ...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

Add a soft pink neon-style glow to miniature scenes, props and lighting projects with this flexible LED filament. It is made from dozens of micro LED diodes bonded onto an ultra-flexible metal backing, then coated in colourful silicone for protection.

These LED “noods” are often used for Edison-style bulb effects, hearts, stars, dioramas, dollhouses and other decorative builds. They look and feel a bit like EL wire, but behave like a long LED, so they can be PWM dimmed easily.

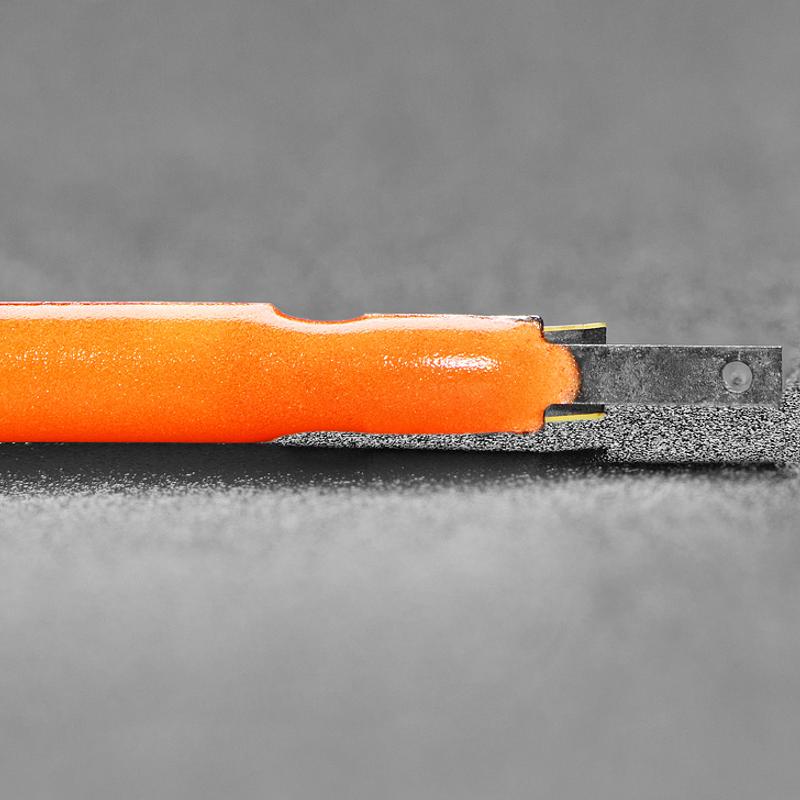

Power it from 24V by connecting to both ends. The anode should be the metal end with a little hole in it; if it does not light straight away, reverse the connection. Adafruit recommends current limiting with a resistor, with a maximum of 500mA.

Specifications:

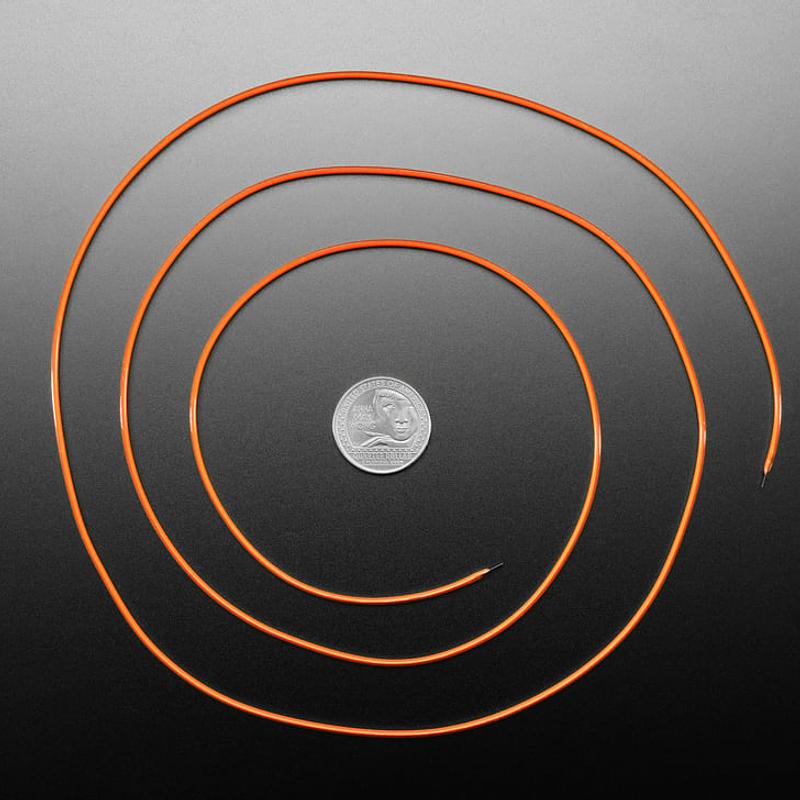

Length: 1200mm long, 1.2 meters or 47 inches
Supply voltage: 24V
Recommended current limiting: resistor to let max 500mA through
24V: 580mA
23V: 350mA
22V: 140mA
21V: 30mA
20.5V: 10mA
Pack quantity: Comes one per pack

Great for makers who want compact neon-like accent lighting without EL wire hardware.

Jargon buster

Plain-language definitions for the technical terms used above.

LED: A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
PWM: Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.
