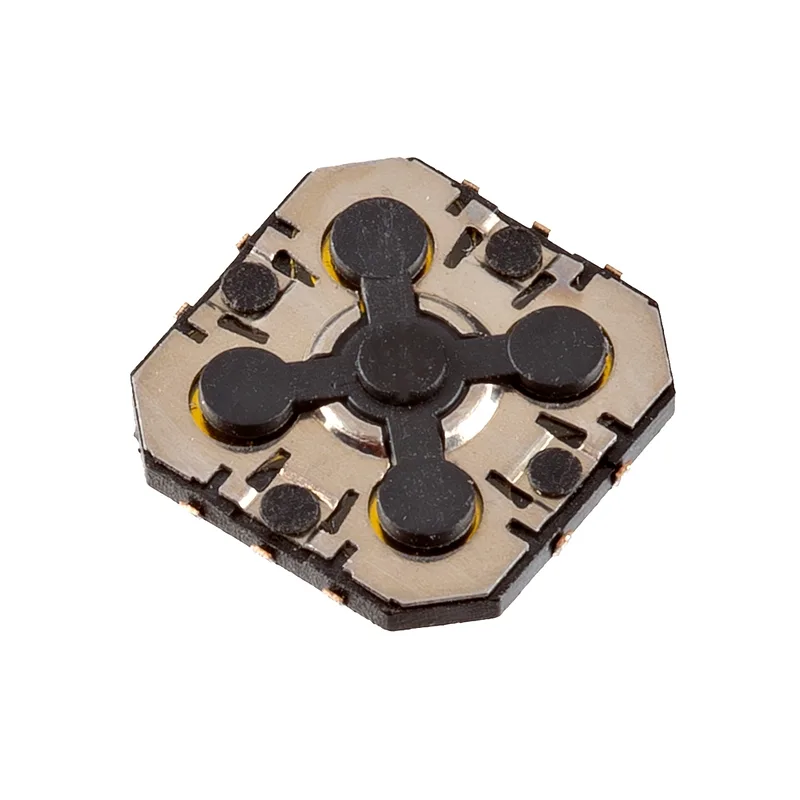

5-Position SMD D-Pad Directional Switch
· MPN: COM-26850
This compact 5-way directional pad gives your microcontroller project a familiar tactile input for up, down, left, right and centre presses.It is an SMD swit...
Get notified when back in stock
This compact 5-way directional pad gives your microcontroller project a familiar tactile input for up, down, left, right and centre presses.
It is an SMD switch, making it suitable for custom PCBs where you need a low-profile navigation control or menu input without using multiple separate buttons.
This is the same D-Pad switch used on the SparkFun Qwiic Directional Pad.
Specifications:
- Rating: 12VDC, 100mA
- Contact Resistance: 80mΩ Max
- Insulation Resistance: 100MΩ Min
- Mechanical Life: 50,000 cycles Min
- Mounting Style: SMD
- Dimensions: 10.5 x 10.5 x 1.7mm
A handy choice for handheld controllers, small user interfaces, menu navigation and maker projects that need directional input.
