P-Channel MOSFET 30V 3.8A - DMP3099L-7
· MPN: COM-30225
This P-channel MOSFET is designed for efficient power management and load switching in compact electronics projects. With a 30V drain-source rating and 3.8A ...
Get notified when back in stock
This P-channel MOSFET is designed for efficient power management and load switching in compact electronics projects. With a 30V drain-source rating and 3.8A continuous drain current rating, it is suited to controlling higher-power loads from a low-power control signal.
Its low gate threshold voltage makes it logic-level compatible, so it can be driven directly from 3V–5V microcontrollers such as Arduino or ESP32 boards, or from a mechanical switch. The low on-resistance helps reduce losses when switching loads.

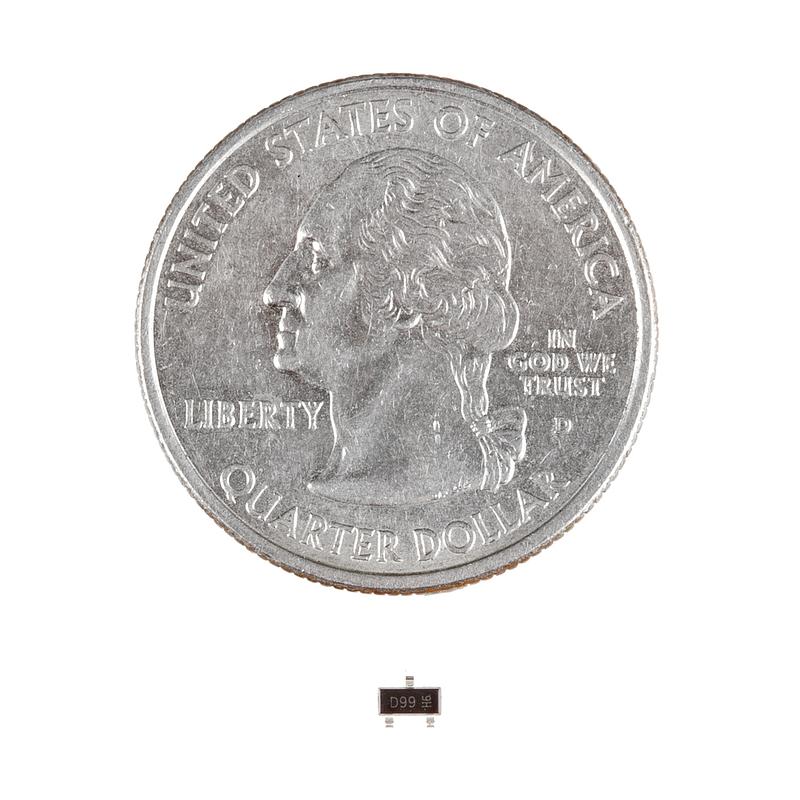

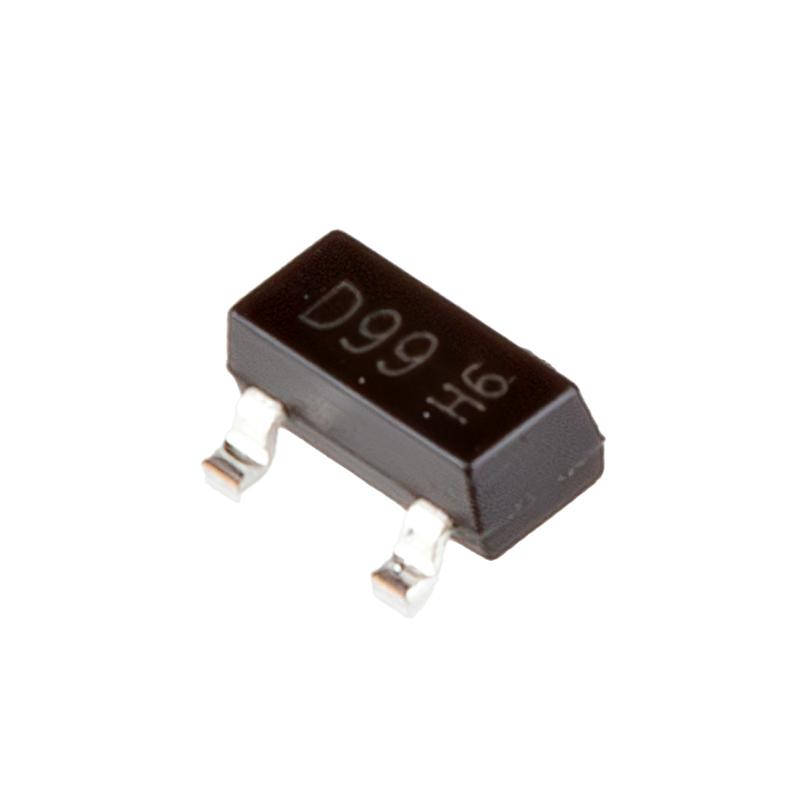

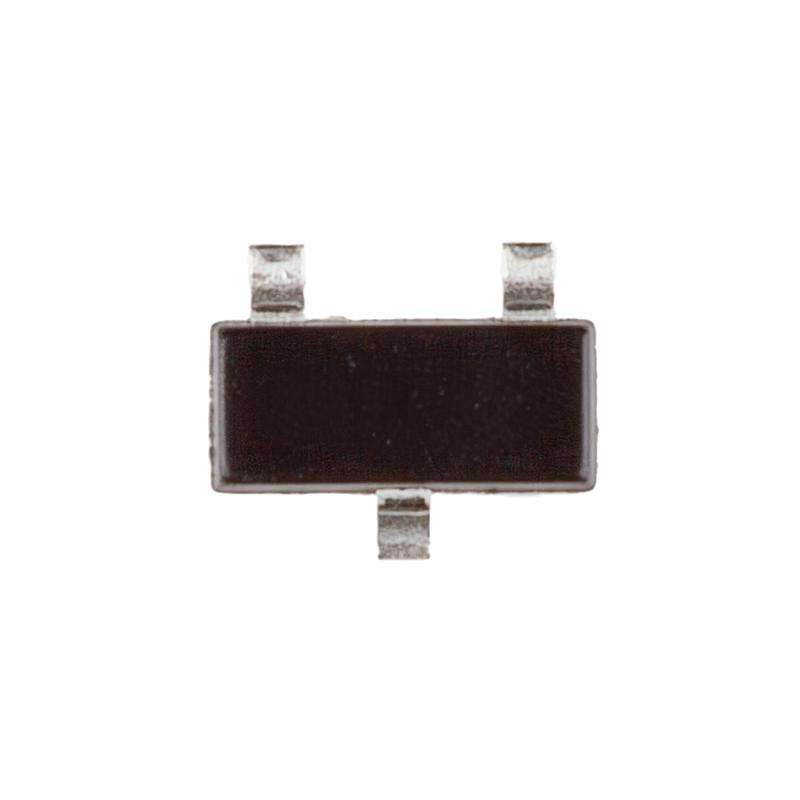

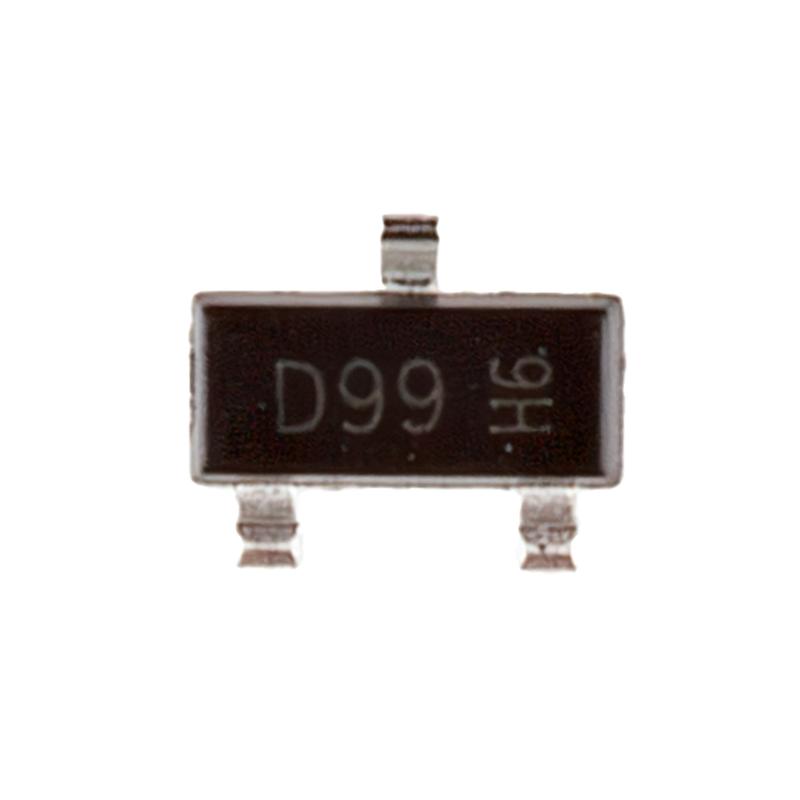

The DMP3099L-7 is a surface-mount component for PCB assembly and integration into custom designs.
Features:
- P-channel MOSFET: For power management and load-switching applications
- Logic-level compatible: Can be controlled from 3V–5V microcontrollers
- Low on-resistance: Helps minimise power loss while switching
- Low gate threshold voltage: Suitable for low-power control signals
- Control options: Can be driven by microcontrollers such as Arduino or ESP32, or by mechanical switches
- Surface-mount design: Intended for PCB assembly
Specifications:
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 3.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 65mOhm @ 3.8A, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.2 nC @ 4.5V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 563pF @ 25V
- Power Dissipation (Max): 1.08W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: DMP3099L-7
A handy part for custom PCB designs that need microcontroller-friendly P-channel switching.
Jargon buster
Plain-language definitions for the technical terms used above.
- capacitance
- Capacitance is the amount of electrical charge a capacitor can store, usually measured in farads such as uF. Choosing the right capacitance value matters because it affects how well a circuit filters power, handles timing, or stores short bursts of energy.
- ESP32
- ESP32 is a family of low-cost microcontroller chips and modules from Espressif with built-in WiFi and Bluetooth. They support programmable firmware and over-the-air updates, and are commonly programmed with toolchains such as the Arduino core and ESP-IDF.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- Power dissipation
- Power dissipation is electrical energy being turned into heat inside a component. It matters because too much heat can reduce efficiency, affect reliability, or require a larger component or better cooling.
