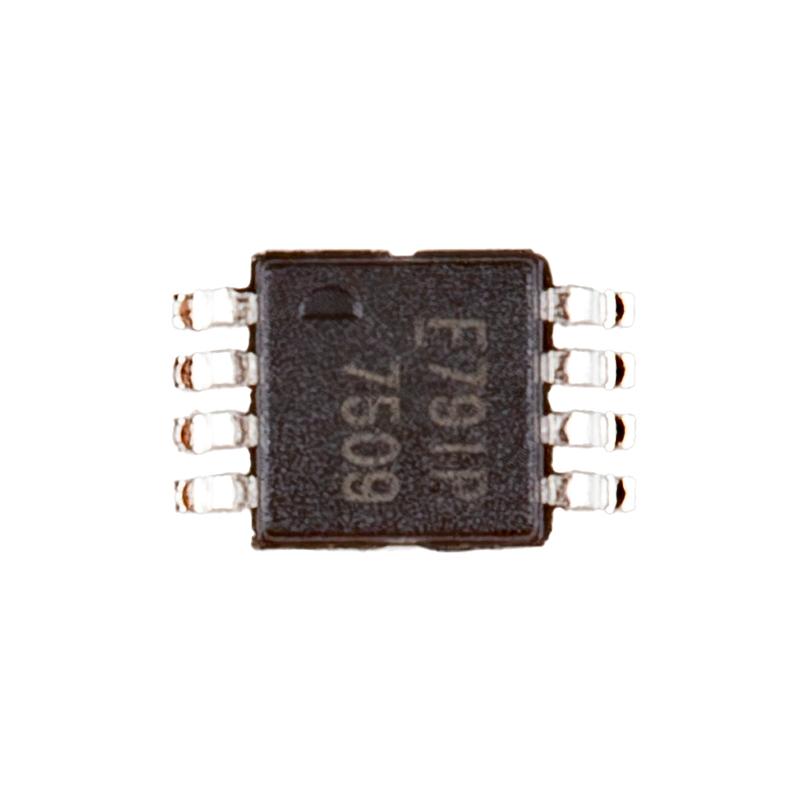

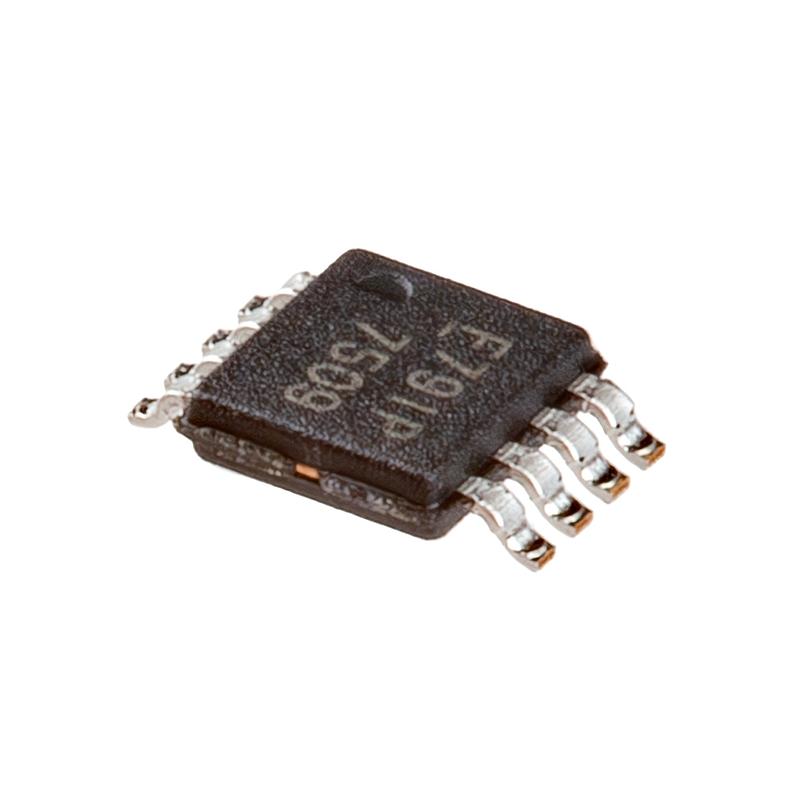

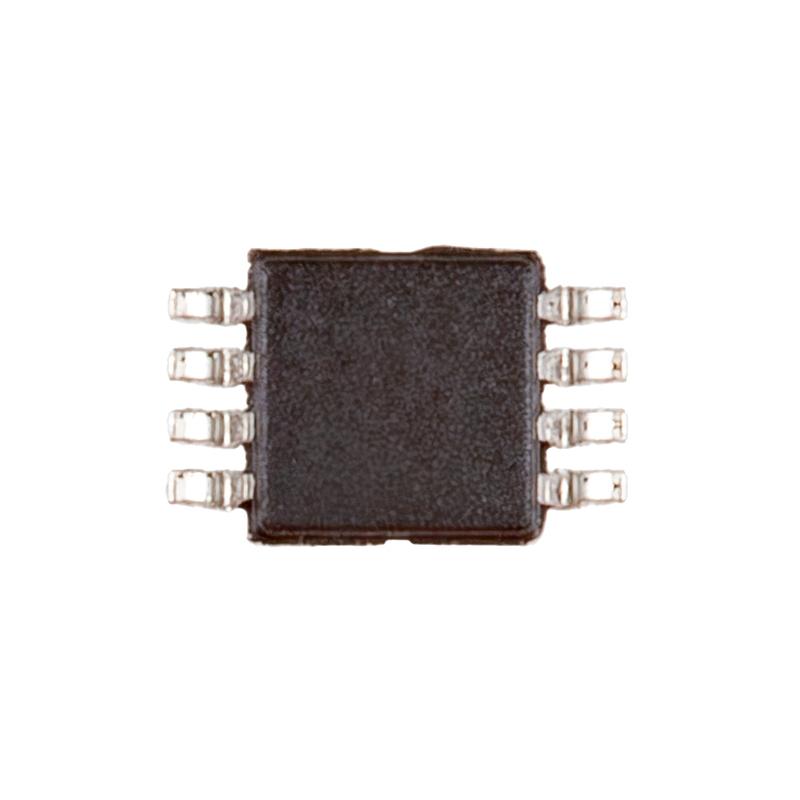

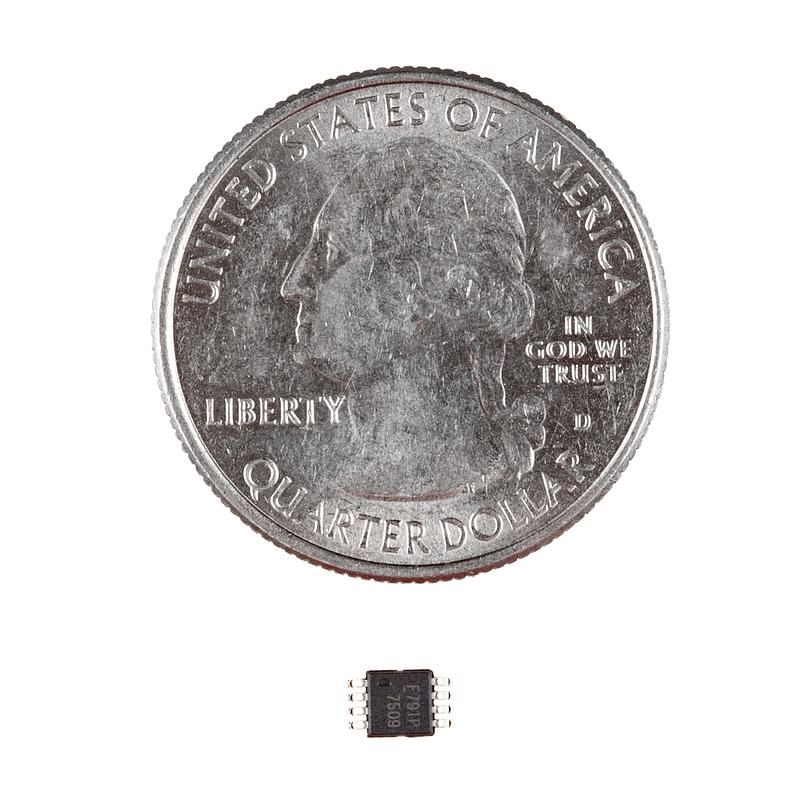

IRF7509 N/P-Channel MOSFET - 30V 2.7A/2.0A
· MPN: COM-29198
The IRF7509 is a common N- and P-channel MOSFET device for switching higher-power loads from low-power control signals. Its low on-resistance helps reduce lo...
Get notified when back in stock
The IRF7509 is a common N- and P-channel MOSFET device for switching higher-power loads from low-power control signals. Its low on-resistance helps reduce losses, while the logic-level gate is suited to control from many 5V microcontrollers or mechanical switches.
This surface-mount MOSFET is useful in compact electronics builds where you need electronic switching for motors, LEDs, relays or other loads within its ratings. Check the datasheet for layout, thermal and application details before designing it into a circuit.
Specifications:
- Configuration: N and P-Channel
- FET Feature: Logic Level Gate
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @25°C: 2.7A, 2A
- Rds On (Max) @ Id, Vgs: 110mOhm @ 1.4A, 10V
- Vgs(th) (Max) @ Id: 1V @250µA
- Gate Charge (Qg) (Max) @ Vgs: 12nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 210pF @ 25V
- Power - Max: 1.25W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg #: IRF7509
Jargon buster
Plain-language definitions for the technical terms used above.
- capacitance
- Capacitance is the amount of electrical charge a capacitor can store, usually measured in farads such as uF. Choosing the right capacitance value matters because it affects how well a circuit filters power, handles timing, or stores short bursts of energy.
