2N7002PW N-Channel MOSFET - 60V 0.3A
· MPN: COM-27912
This N-channel MOSFET is a handy switching component for controlling a higher-power load from a low-power control signal.Its gate drive is compatible with ty...
This N-channel MOSFET is a handy switching component for controlling a higher-power load from a low-power control signal.
Its gate drive is compatible with typical 3–5V microcontrollers or a mechanical switch, making it useful for simple digital load switching in compact electronics projects.

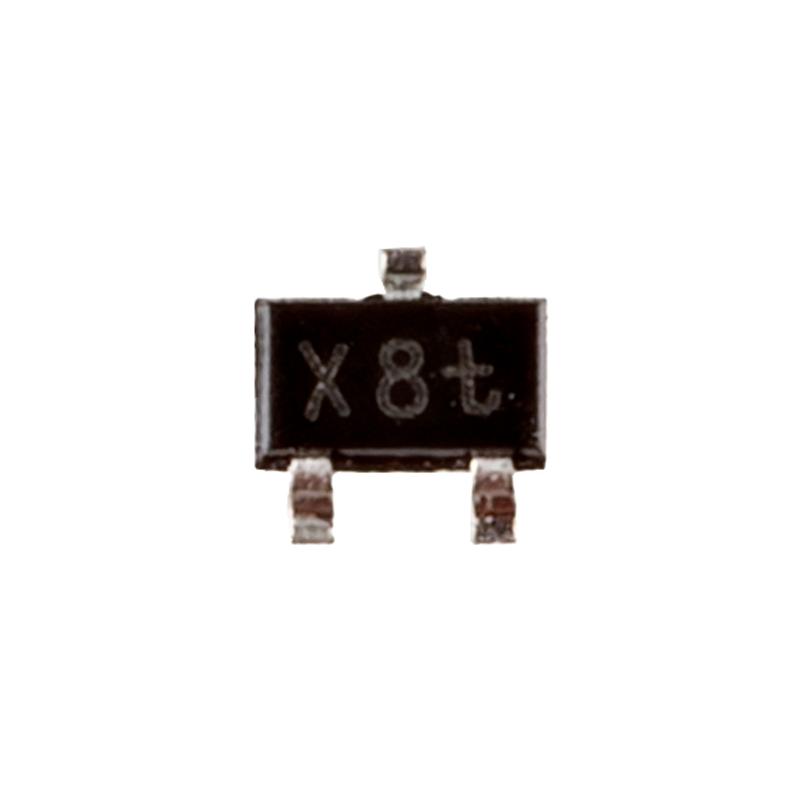

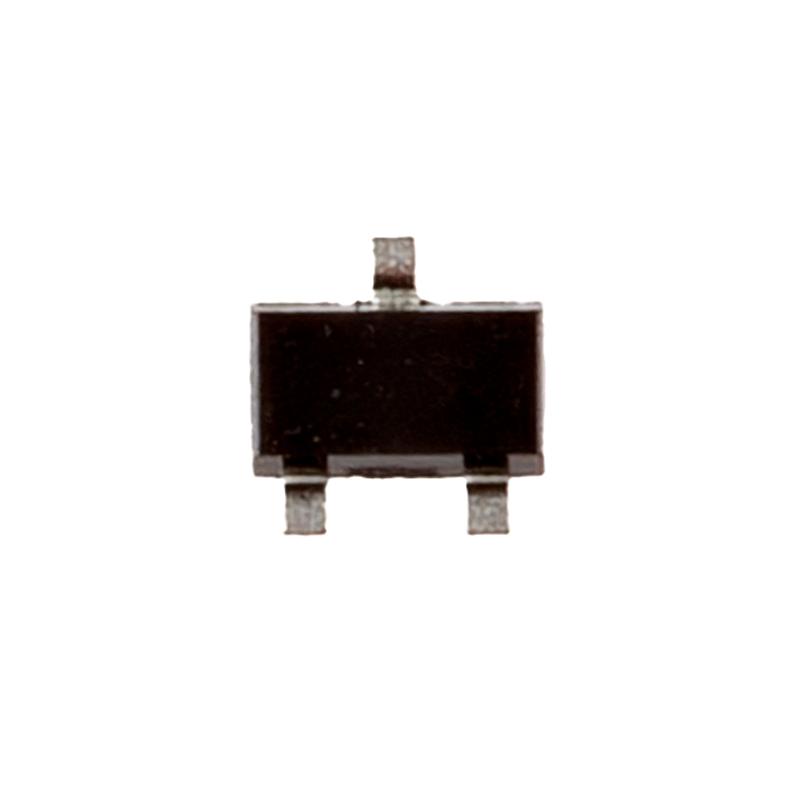

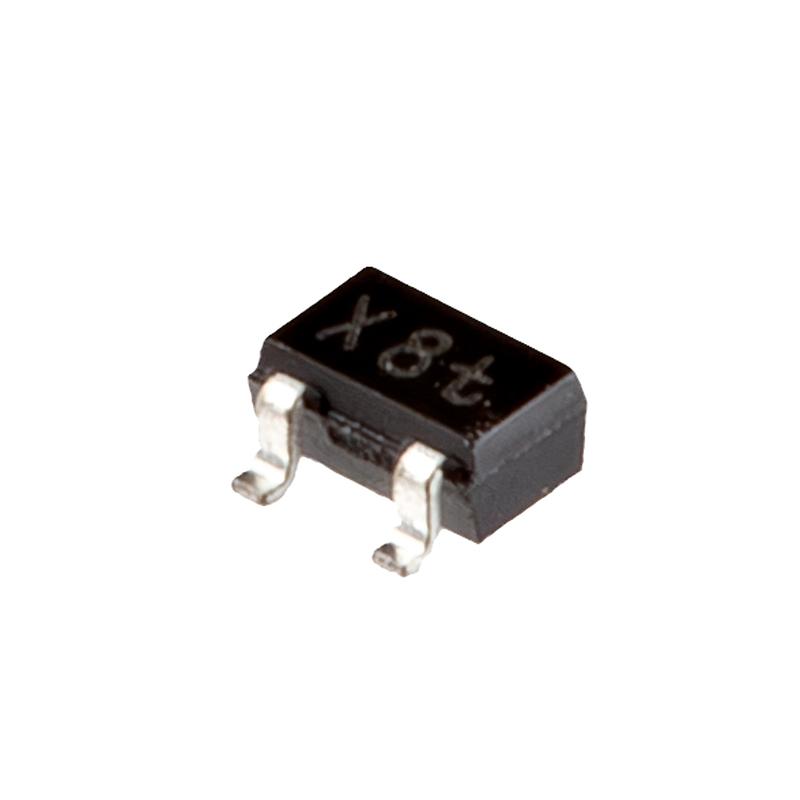

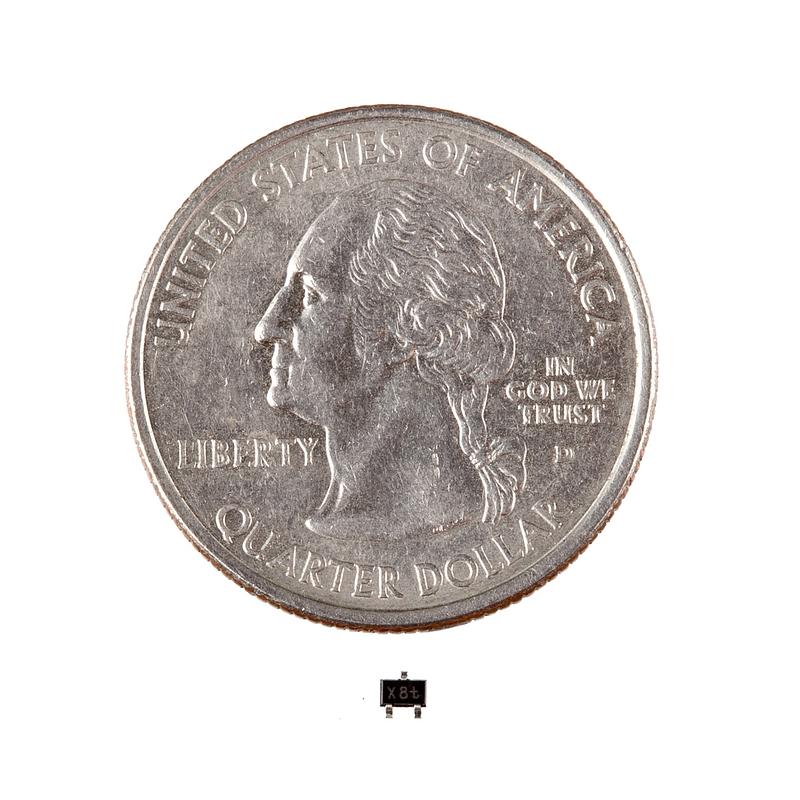

The device is a surface-mount MOSFET with low on-resistance, suited to designs where a small controller needs to switch current without directly driving the load.
Specifications:
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 310mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
- Rds On (Max) @ Id, Vgs: 1.6Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 2.1V @ 250µA
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 50 pF @ 25 V
- Power Dissipation (Max): 350mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Mfg Part #: 2N7002KW
Jargon buster
Plain-language definitions for the technical terms used above.
- Power dissipation
- Power dissipation is electrical energy being turned into heat inside a component. It matters because too much heat can reduce efficiency, affect reliability, or require a larger component or better cooling.
