5.25mm Square SMD Momentary Tactile Pushbutton Switch

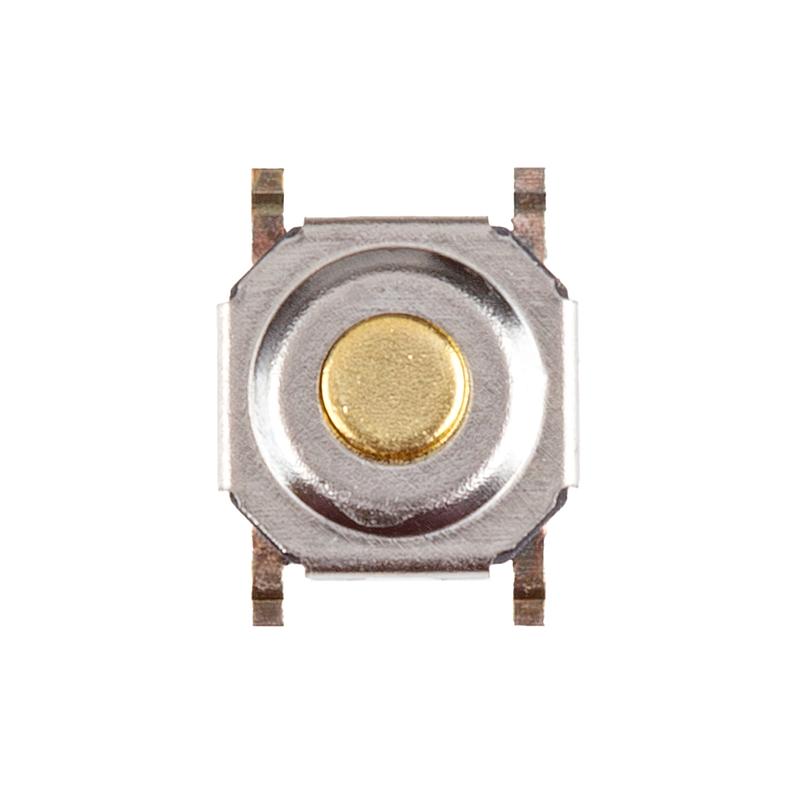

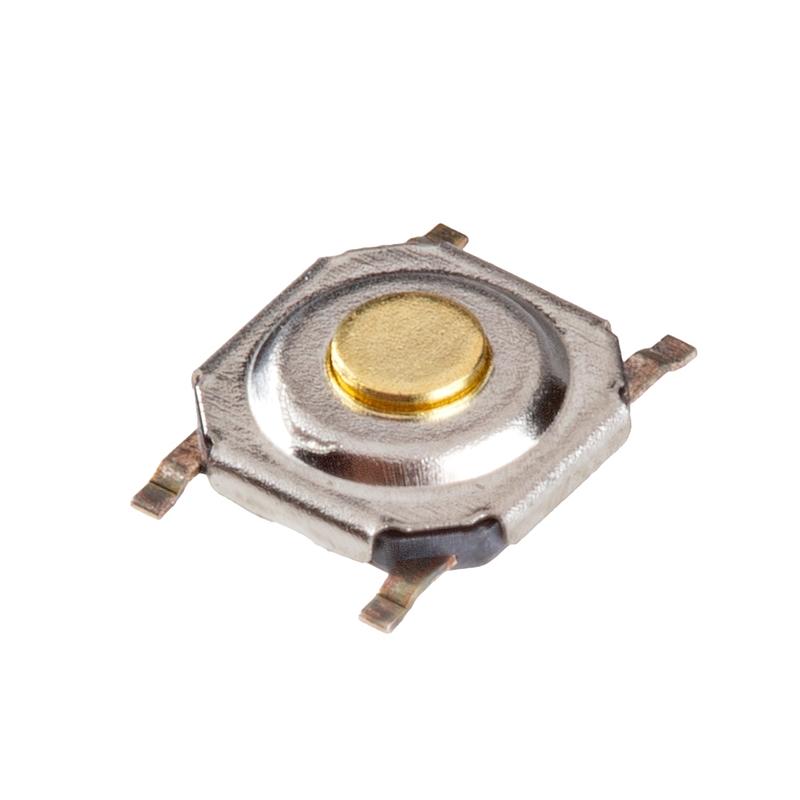

This compact tactile pushbutton is a high-reliability surface-mount switch for tight user interfaces. Its 5.25mm square outline and 1.5mm low-profile actuator height make it suitable for small enclosures such as remote controls, handheld instruments and wearable devices.

The switch uses a standard SPST-NO, normally open momentary action with a top-actuated button and gull wing terminations for SMD assembly. It provides a crisp tactile click with a 160gf operating force.

Designed for durability in compact electronics, it is rated for a mechanical life of 1,000,000 cycles.

Specifications:

• Circuit: SPST-NO
• Switch Function: Off-Mom
• Contact Rating @ Voltage: 0.02A @ 15VDC
• Actuator Type: Standard
• Mounting Type: Surface Mount
• Actuator Height off PCB, Vertical: 1.50mm
• Actuator Orientation: Top Actuated

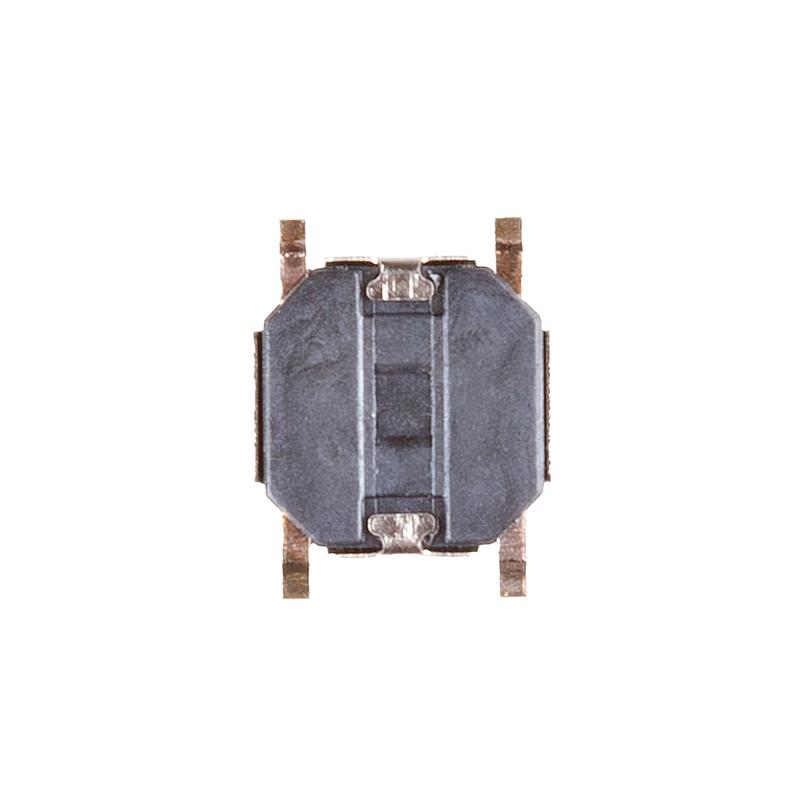

• Termination Style: Gull Wing

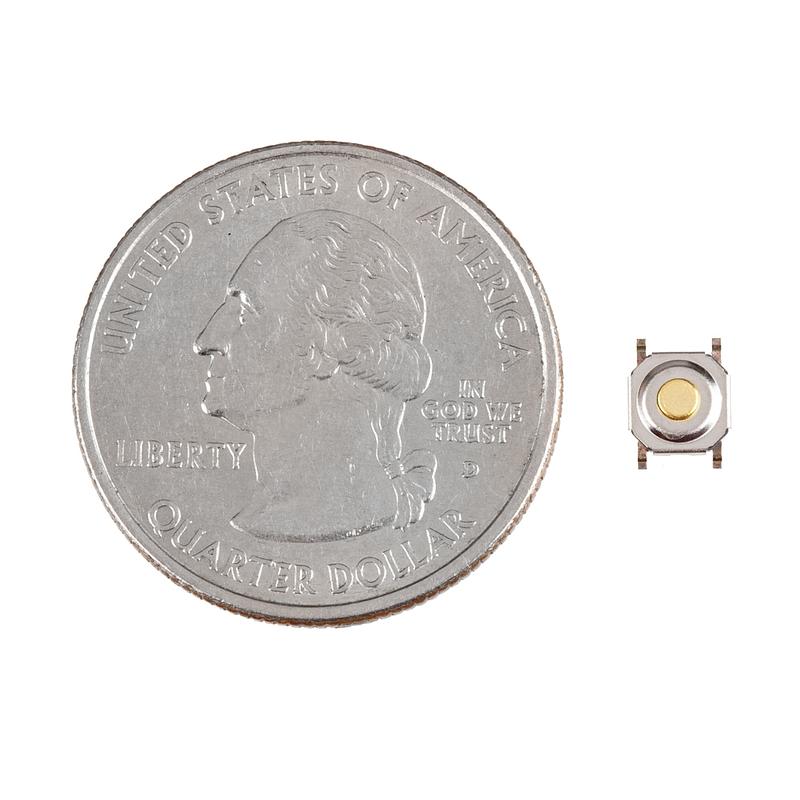

• Outline: 5.25mm x 5.25mm
• Operating Force: 160gf
• Operating Temperature: -20°C ~ 70°C
• Actuator Material: Polyamide (PA66), Nylon 6/6
• Switch Travel: 0.25mm
• Mechanical Life: 1,000,000 Cycles
• Base Product Number: PTS525

A handy choice for compact PCBs where you need a small, low-profile momentary user input.
