Miniware TS1C Cordless Smart Soldering Station

Name: Miniware TS1C Cordless Smart Soldering Station
Brand: DFRobot
SKU: DF-FIT0960
Price: 356.5 AUD
Availability: InStock

· MPN: FIT0960

Soldering Equipment

$356.50 |

In stock at supplier

No reviews yet

This cordless smart soldering setup uses a super-capacitor inside the soldering handle, giving you cable-free movement at the bench without relying on a conv...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

This cordless smart soldering setup uses a super-capacitor inside the soldering handle, giving you cable-free movement at the bench without relying on a conventional battery pack. The OLED display lets you keep an eye on power and temperature status while you work.

The soldering handle and control base communicate over Bluetooth, enabling remote control and setting of functions such as preheating and temperature adjustment. The handle supports MINIWARE 3.5mm audio interface soldering tips from the TS80/80P series, making it suitable for precision electronics work and SMD soldering.

The compact control base combines soldering control, charging, a soldering stand and expansion slots into one desktop unit, powered via USB Type-C PD input. The supplied set includes TS1C Soldering Iron Handle (Black) x1, TS1C Control Base x1, Soldering Tip (TS-B02) x1, Sponge Tray x1, Absorbent Sponge x1, USB-C Silicone Power Cable x1 and User Manual x1.

Features:

Super-capacitor storage: 750F super-capacitor energy storage system for cordless operation
Heating power: Maximum heating power up to 36W
Soldering capacity: More than 180 soldered dots based on 0805 SMD
Fast charging: Charging in approximately 7 minutes
Long lifetime: Long lifetime compared with a traditional battery power system
Bluetooth communication: BLE 4.2 communication between the station and soldering iron
Remote control: Remote control and settings from the station
Preheating: Supports soldering iron preheating
Temperature adjustment: Supports temperature adjustment
Information display: Displays operating information for convenient use

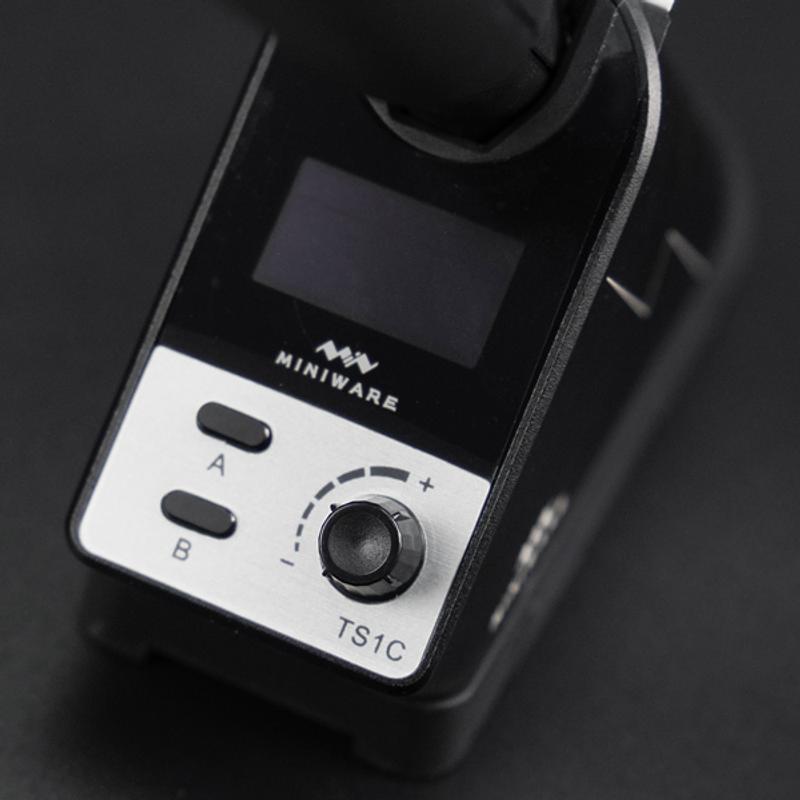

OLED display: 128×64 pixel OLED screen displays real-time status of the soldering handle
Multifunction station: Combines soldering control, soldering charging and soldering stand functions
Expansion slots: 3 expansion slots at the bottom of the station
USB-C PD input: USB Type-C PD2.0 input supporting up to 45W
Auto sleep: Supports auto-sleep
Auto cool down: Supports auto-cool down
Charging protection: Supports charging protection
Under-voltage protection: Supports under-voltage protection
Over-temperature protection: Supports over-temperature protection
Compact handle: Pen-shaped handle with only 23mm diameter and 133mm length
Tip compatibility: Compatible with MINIWARE 3.5mm audio interface soldering tips, including TS80/80P series soldering tips

Specifications:

TS1C Control Base Model: TS1C-S
TS1C Control Base Screen: 128*64 pixel monochrome OLED
TS1C Control Base Maximum Input Voltage: PD2 20V
TS1C Control Base Maximum Input Power: 45W
TS1C Control Base Safety Protection: Overcurrent protection
TS1C Control Base Dimensions: Base 44.5*122*73mm, Sponge Slot 42*43mm
TS1C Control Base Weight: 186g
TS1C Soldering Iron Handle Model: TS1C-P
TS1C Soldering Iron Handle Interface Type: USB Type-C
TS1C Soldering Iron Handle Capacitance: 750F
TS1C Soldering Iron Handle Charging Time: 7 minutes
TS1C Soldering Iron Handle Maximum Heating Power: 36W
TS1C Soldering Iron Handle Temperature Range: 100°C~400°C (212°F~752°F)
TS1C Soldering Iron Handle Temperature Stability: ±3%
TS1C Soldering Iron Handle Soldering Tip: MINWARE 3.5mm audio jack soldering tip
TS1C Soldering Iron Handle Safety Protection: Low voltage protection for the capacitor, capacitor charging protection, over-temperature protection
TS1C Soldering Iron Handle Dimensions: 23*133mm
TS1C Soldering Iron Handle Weight: 62g

A compact choice for electronics prototyping, PCB assembly, SMD work, portable repair and maker workbenches where flexible cordless soldering is useful.

Jargon buster

Plain-language definitions for the technical terms used above.

BLE: BLE stands for Bluetooth Low Energy, a Bluetooth mode designed for low power use and broad compatibility with modern phones and computers. It connects well to battery-powered and mobile devices, including Apple hardware, though it behaves differently from Bluetooth Classic and its serial-style profiles.
capacitance: Capacitance is the amount of electrical charge a capacitor can store, usually measured in farads such as uF. Choosing the right capacitance value matters because it affects how well a circuit filters power, handles timing, or stores short bursts of energy.
OLED: OLED stands for organic light-emitting diode, a display type where each pixel produces its own light. It matters because OLED screens are thin, high-contrast and easy to read for small status displays, but they can be more sensitive to image burn-in than some other display types.
PCB: A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
SMD: SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
Type-C: USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
under-voltage protection: Under-voltage protection turns off or limits operation when the supply voltage drops too low. This helps prevent unstable behaviour and can protect batteries or connected electronics from being used outside their safe range.
USB Type-C: USB Type-C is a small, reversible USB connector used for power, data and sometimes video on many modern devices. The connector itself does not guarantee a particular speed or voltage, so check the supported USB version, data rate and whether it carries more than 5V via USB Power Delivery.
USB-C: USB-C is a small, reversible USB connector that can carry power, data and, on some devices, video over a single cable. The same connector can range from charging only to high-speed data, so the functions a given port actually supports vary.
