micro:Maqueen Plus V2 (18650) with micro:Maqueen Mechanic

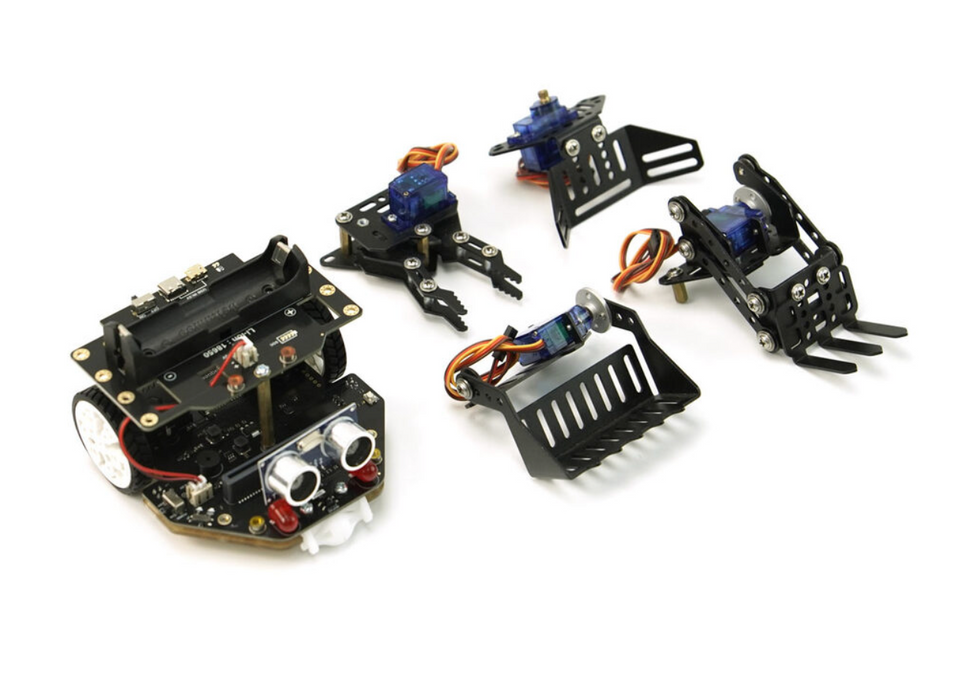

Designed for classroom robotics and STEAM projects, this kit combines the micro:Maqueen Plus V2 18650 robot base with the micro:Maqueen Mechanic add-on set for forklift, push, beetle and loader builds.

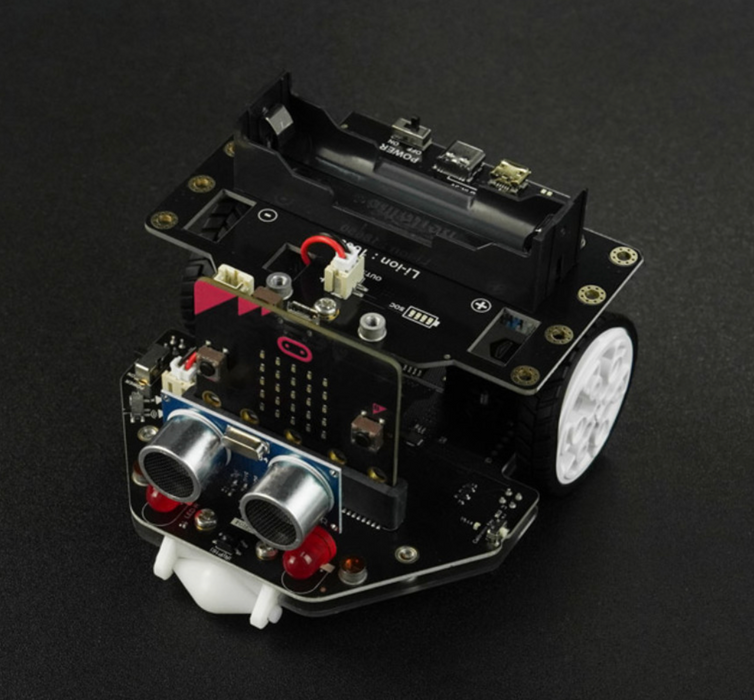

Maqueen Plus V2 builds on the Maqueen series with a larger body, more expansion ports, a higher-capacity 18650 power option, line-tracking sensors, RGB ambient lighting, car lights, a buzzer, IR receiver and ultrasonic sensing. It is compatible with peripherals such as the HuskyLens AI camera, making it suitable for lessons, after-school activities and robot competitions.

The bundle includes the Maqueen Plus V2 18650 vehicle body, H-SR04 ultrasonic sensor, line-tracking map, Mechanic plates, brackets, fasteners, two 9g servos and an installation manual. The micro:bit board and batteries are not included.

Programming is supported through Mind+ and MakeCode, with a MakeCode library available for the Maqueen Plus V2 platform.

Features:

• No complex assembly, get started in minutes
• More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3
• 5 line-tracking sensors, reliable and flexible
• Larger body, more flexible expansion methods
• Two versions to choose from: AA battery and 18650 battery
• AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
• Works well with HuskyLens AI camera
• Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
• Frosted acrylic protective plate at the bottom

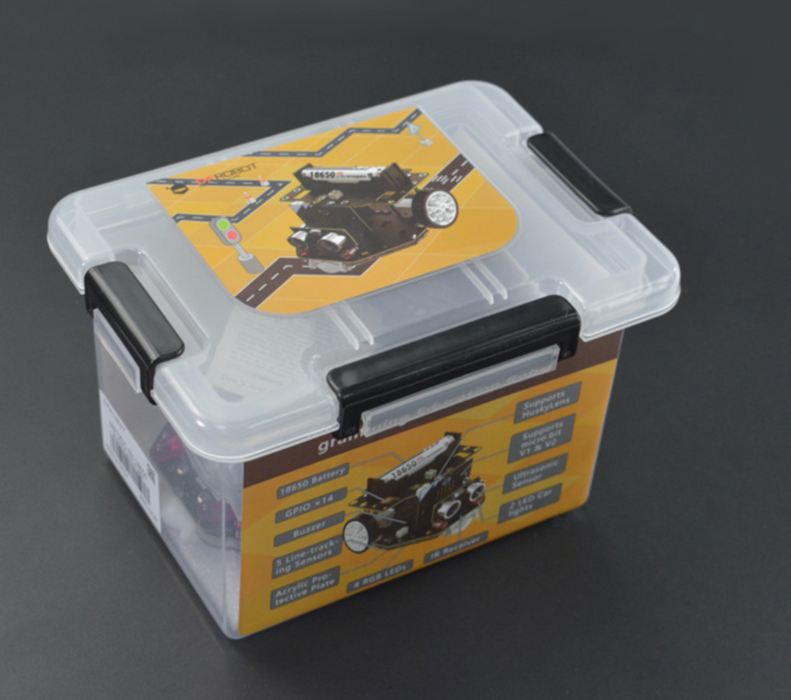

• Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car

Specifications:

• Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
• Support: micro:bit V1 and V2
• N20 All-metal Gear Motor: x 2
• Buzzer: x 1
• 5V IO: (P0 P1 P2) x 3
• 3.3V IO: (P0 P1 P2 P8 P12 P13 P14 P15)
• 3.3V I2C: x 2
• 5V I2C: x 1
• Large Size LED Car Lights: x 2
• RGB Ambient Lights: x 4
• Line-tracking Sensor: x 5
• Line-tracking Sensor: with One-key Calibration
• IR Receiver: x 1
• SRO4 Ultrasonic Module: x 1
• Dimension: 136mm×65mm/5.35×2.56"
• Programming Platform: Mind+, MakeCode
• Wiki Address:
• MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20

A solid choice for STEM education, robotics clubs and competition practice where students need a flexible micro:bit robot platform with mechanical expansion options.
