micro:Maqueen Plus V2 (18650) with HUSKYLENS
·
This compact programmable robot platform is designed for classroom robotics, AI experiments and hands-on engineering projects. Built around the micro:bit eco...
Get notified when back in stock
This compact programmable robot platform is designed for classroom robotics, AI experiments and hands-on engineering projects. Built around the micro:bit ecosystem, it brings together a mobile rover chassis, onboard sensors, lighting effects and expansion ports for building intelligent vehicle projects.
The included Gravity: HUSKYLENS AI vision sensor adds onboard machine-vision functions such as object tracking, face recognition, line following and colour detection. This lets students prototype vision-guided behaviours without needing to build complex neural-network code from scratch.

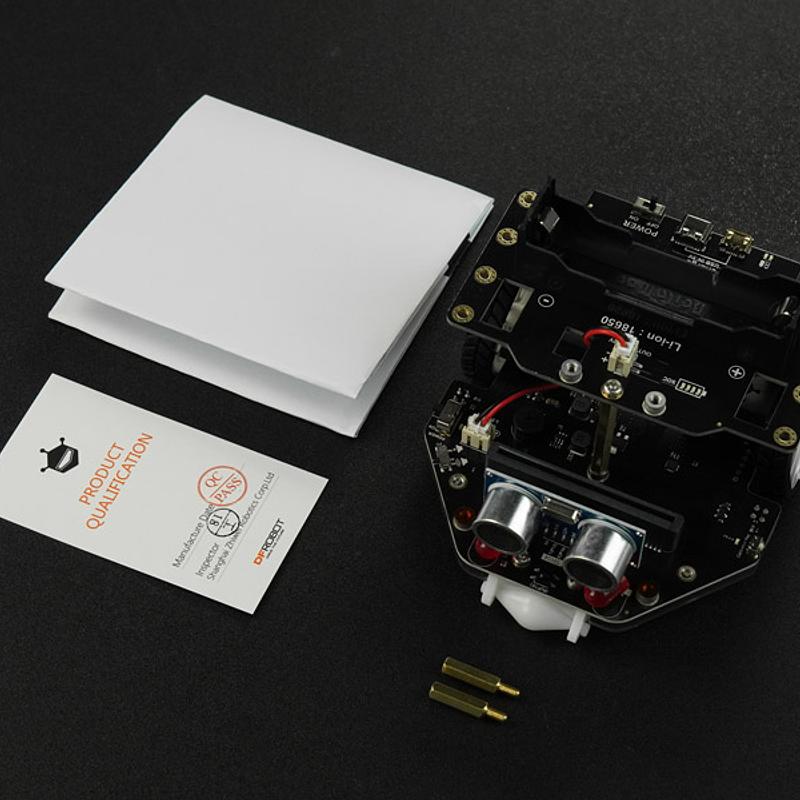

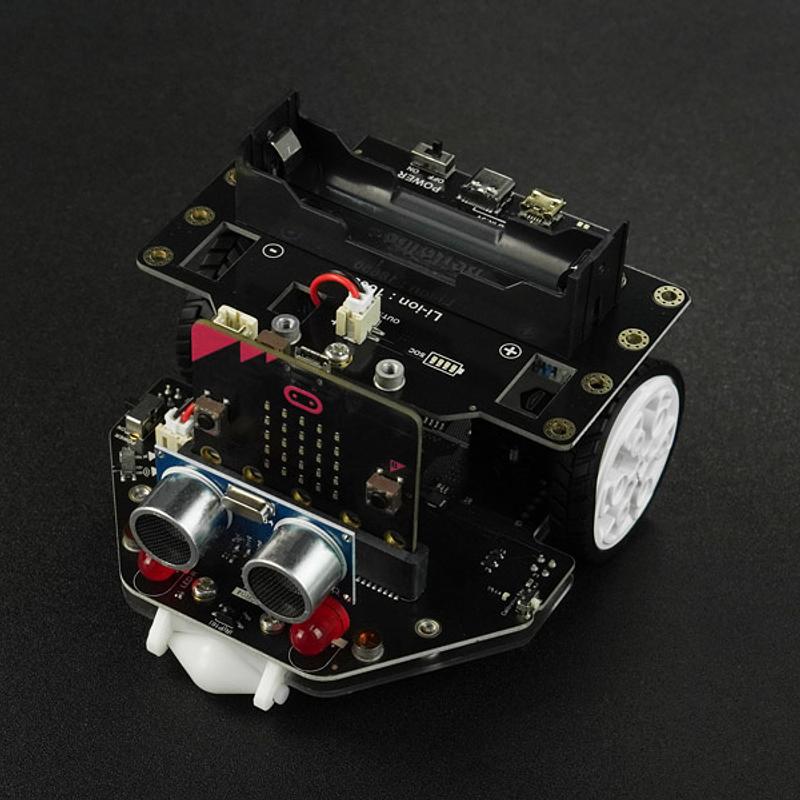

The upgraded Maqueen Plus V2 chassis provides extra IO for sensors and actuators, five line-tracking sensors, dual N20 all-metal gear motors, RGB ambient lights, headlights, a buzzer, IR receiver and an ultrasonic module interface. The package includes the Maqueen Plus V2 (18650 battery) vehicle body, H-SR04 ultrasonic sensor, line-tracking map and Gravity: HUSKYLENS; the motor, vehicle wheel, support wheel and battery panel are installed before delivery. A micro:bit board and batteries are not included.
Programming is supported through Mind+ and MakeCode, with a MakeCode library provided for the Maqueen Plus V2 platform.
Features:
- No complex assembly, get started in minutes
- More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3
- 5 line-tracking sensors, reliable and flexible
- Larger body, more flexible expansion methods
- Two versions to choose from: AA battery and 18650 battery
- AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
- Works well with HuskyLens AI camera
- Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.

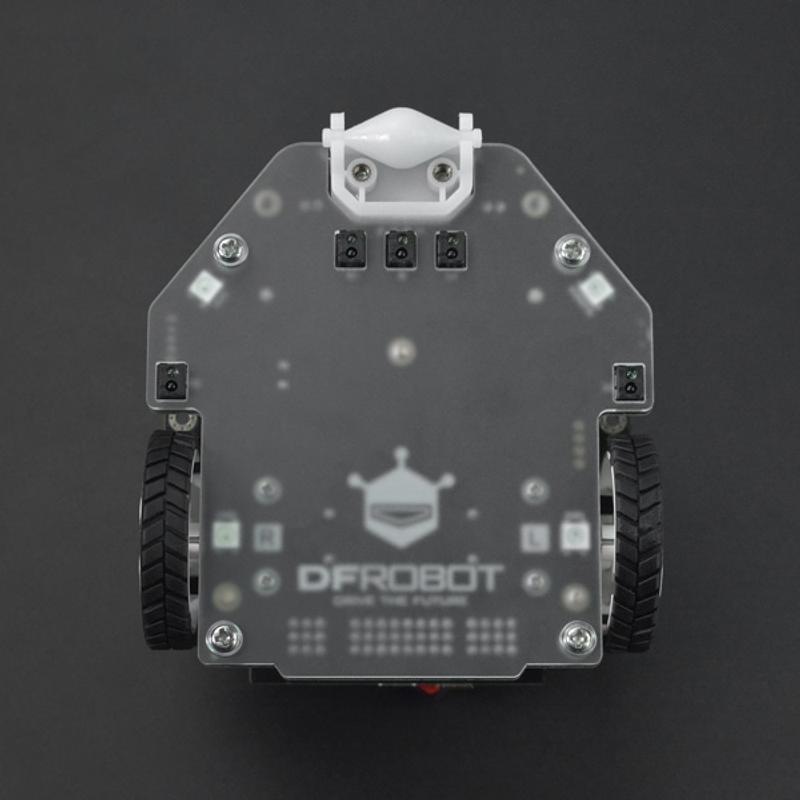

- Frosted acrylic protective plate at the bottom

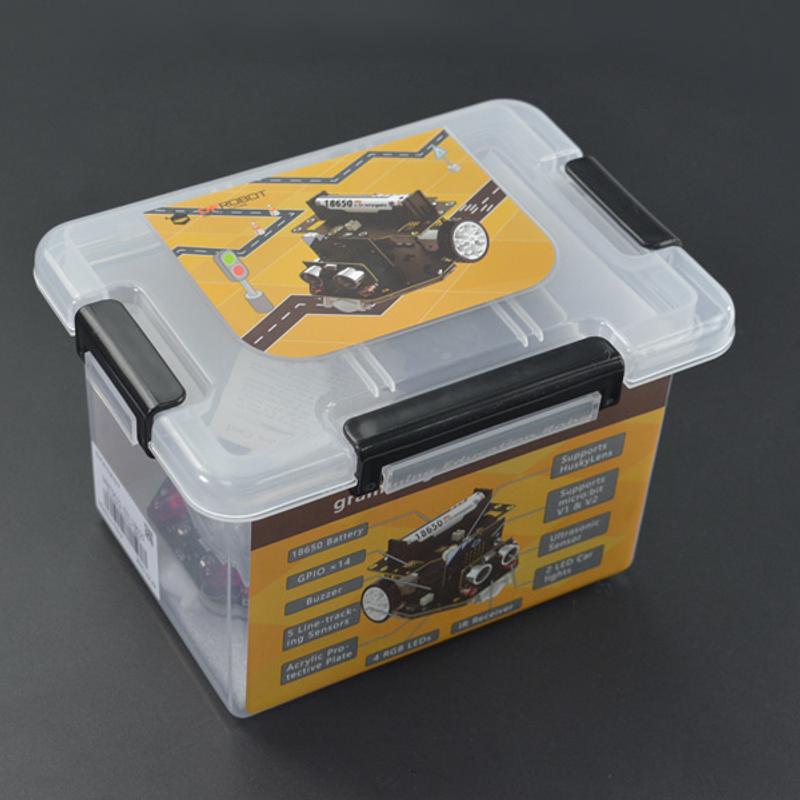

- Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car
Specifications:

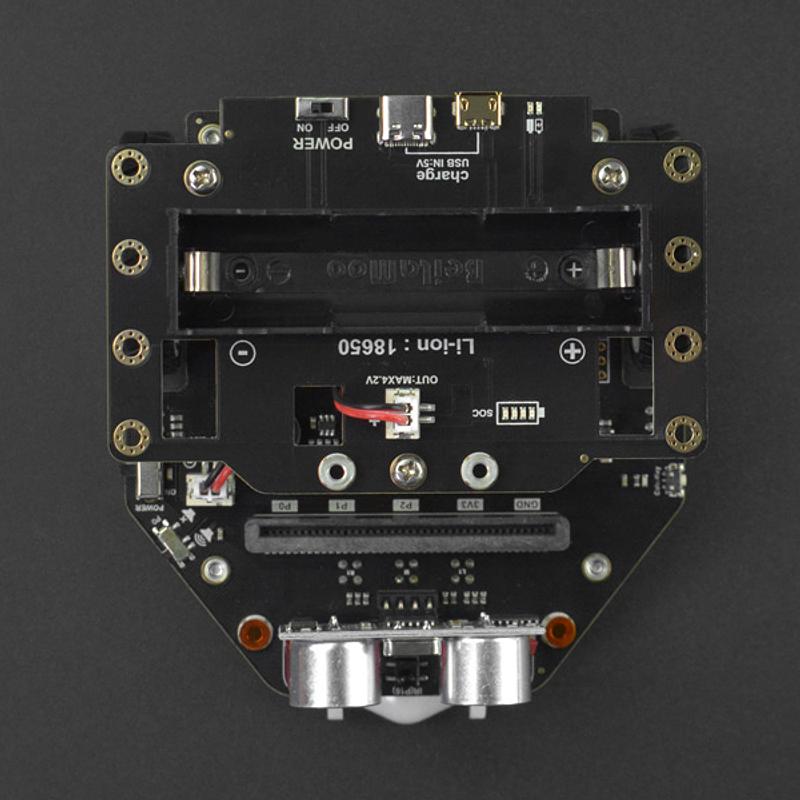

- Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
- Support: micro:bit V1 and V2
- N20 All-metal Gear Motor: x 2
- Buzzer: x 1
- 5V IO: (P0 P1 P2) x 3
- 3.3V IO: (P0 P1 P2 P8 P12 P13 P14 P15)
- 3.3V I2C: x 2
- 5V I2C: x 1
- Large Size LED Car Lights: x 2
- RGB Ambient Lights: x 4

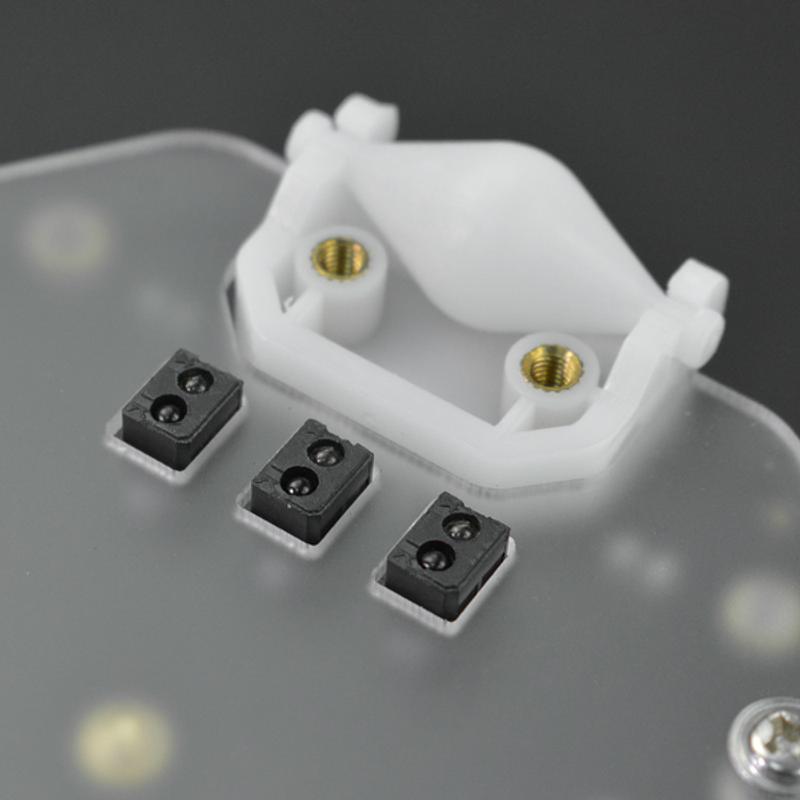

- Line-tracking Sensor: x 5
- Line-tracking Sensor: with One-key Calibration
- IR Receiver: x 1

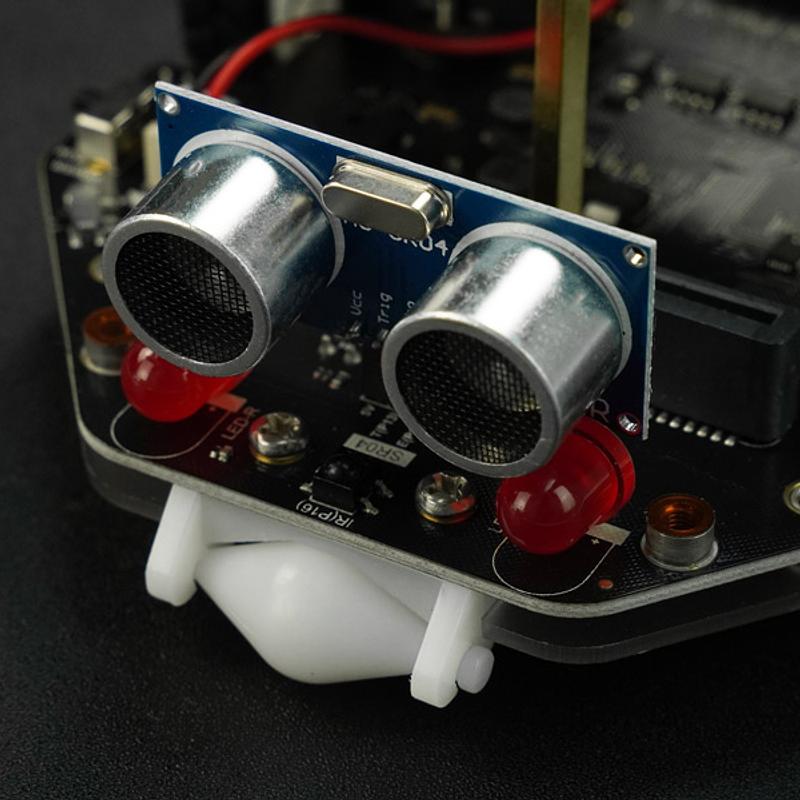

- SRO4 Ultrasonic Module: x 1
- Dimension: 136mm×65mm/5.35×2.56"
- Programming Platform: Mind+, MakeCode
- MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20
Ideal for STEM Education, AI Vision Robotics Projects, Autonomous Vehicle Experiments, Robotics Competitions and Classroom Programming Training.
Jargon buster
Plain-language definitions for the technical terms used above.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- line-tracking sensor
- A line-tracking sensor detects contrast between a dark line and a lighter surface, usually using infrared light. It matters for robot activities where the robot follows a track, such as classroom challenges or competitions.
- RGB
- Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.
- Type-C
- USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
- Ultrasonic module
- An ultrasonic module measures distance by sending out high-frequency sound pulses and timing their echo. It is commonly used for obstacle detection and simple range-finding projects, but it needs a clear path to the target.
