DFRobot

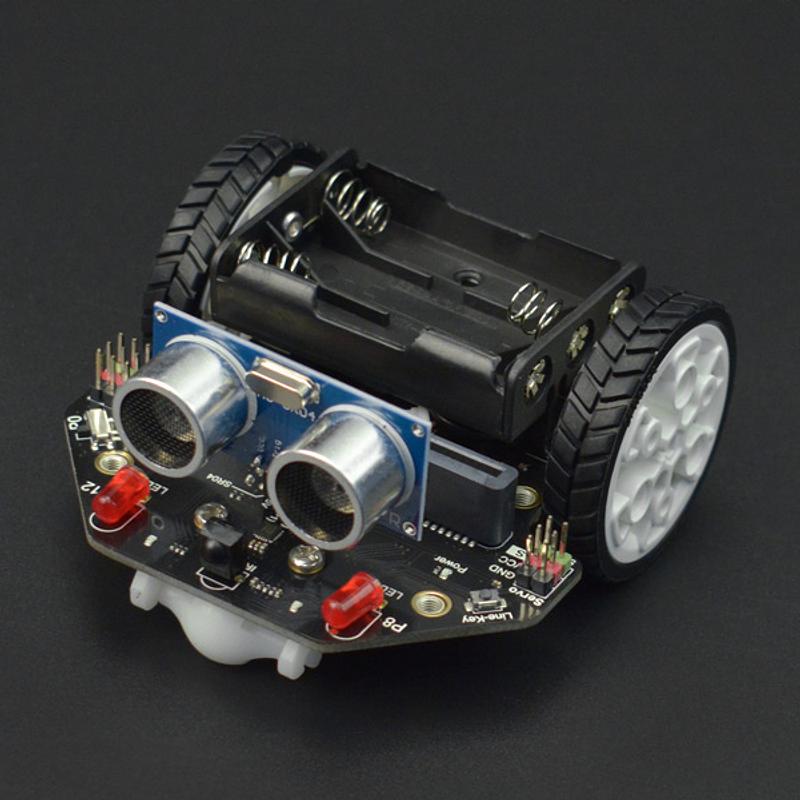

Maqueen Lite micro:bit V2 Robot Kit with Enclosure & Track Map
· MPN: ROB0148-EN-5
Bring micro:bit robotics into the classroom or makerspace with Maqueen, a compact educational programming robot platform designed for STEAM learning. It keep...
Get notified when back in stock
Bring micro:bit robotics into the classroom or makerspace with Maqueen, a compact educational programming robot platform designed for STEAM learning. It keeps the simple, playful style of micro:bit while adding motors, sensors, lights and expansion interfaces for hands-on coding activities.

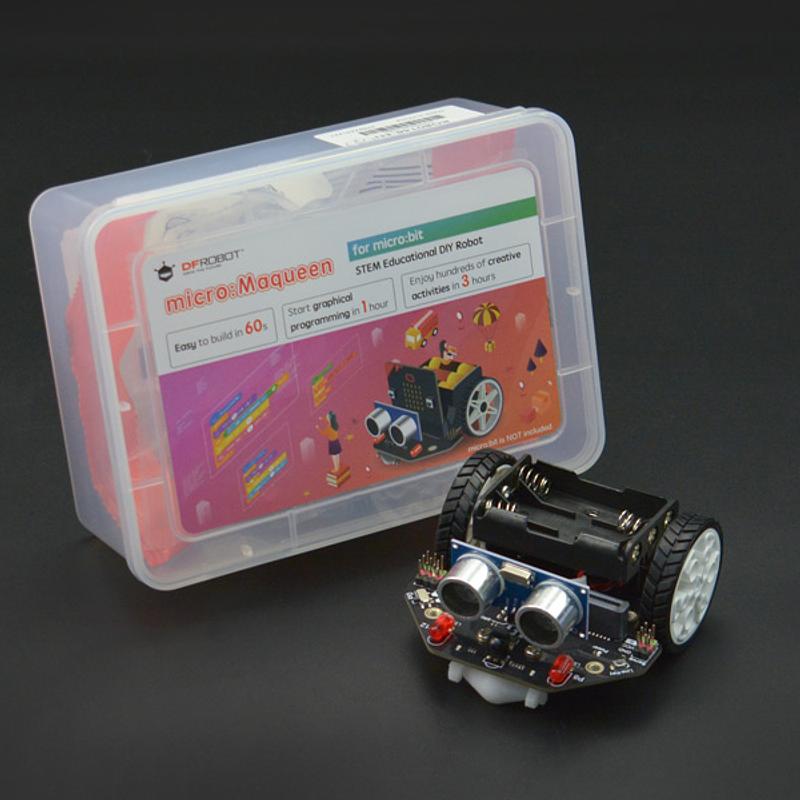

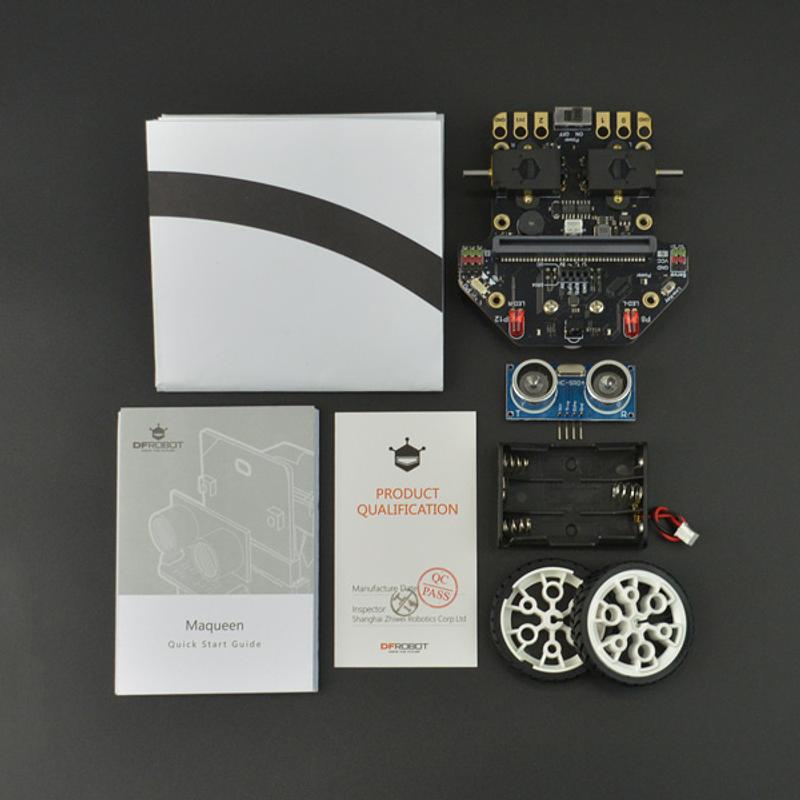

This bundle includes micro: Maqueen Lite, micro:bit V2, Type-C & Micro 2-in-1 USB Cable, micro:bit Enclosure and Track Map. Batteries are not included, and the products in this set are packaged and supplied independently.
Maqueen supports MakeCode and works with DFRobot’s Mind+ graphical programming platform, making it suitable for students getting started with block-based coding and robotics. The suggested age is 8+.
Features:
- Support for Makecode, will support Scratch and python later.
- Small size, flexible movement.
- All-metal miniature gear motor, good quality, strong driving force.

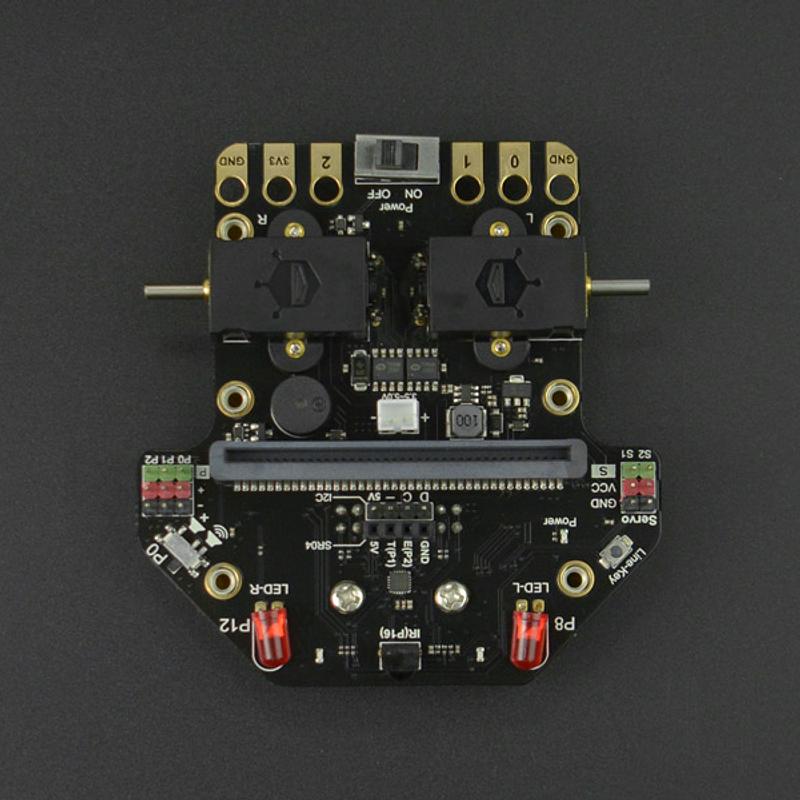

- Line patrol, ambient light, LED lights, ultrasonic interface, buzzer, I2C interface, mechanical expansion screw hole, etc. ... full-featured, highly expandable.
- Exclusive customized POM bearing wheel, flexible and reliable, strong obstacle crossing ability.
- Easy to install, easy to use.
Specifications:
- Supply Voltage: 3.5V~5V DC ( Three AAA batteries or 3.6V~3.7V lithium battery )
- Infrared Grayscale Sensor(High-low level): x 2
- Buzzer: x 1

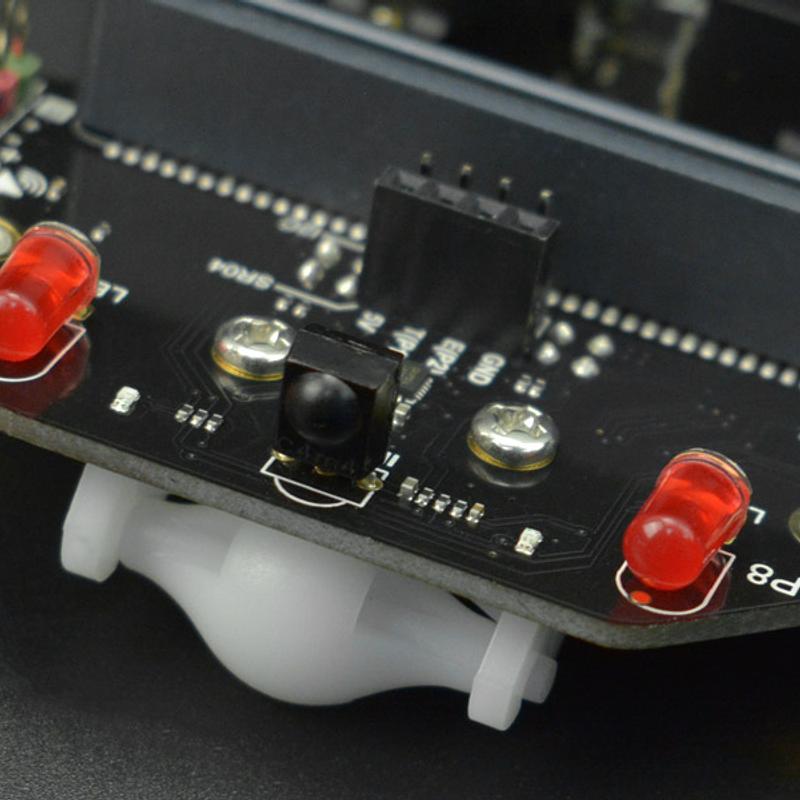

- Infrared Receiver (NEC decoder): x 1
- LED Lights (High-low level control): x 2

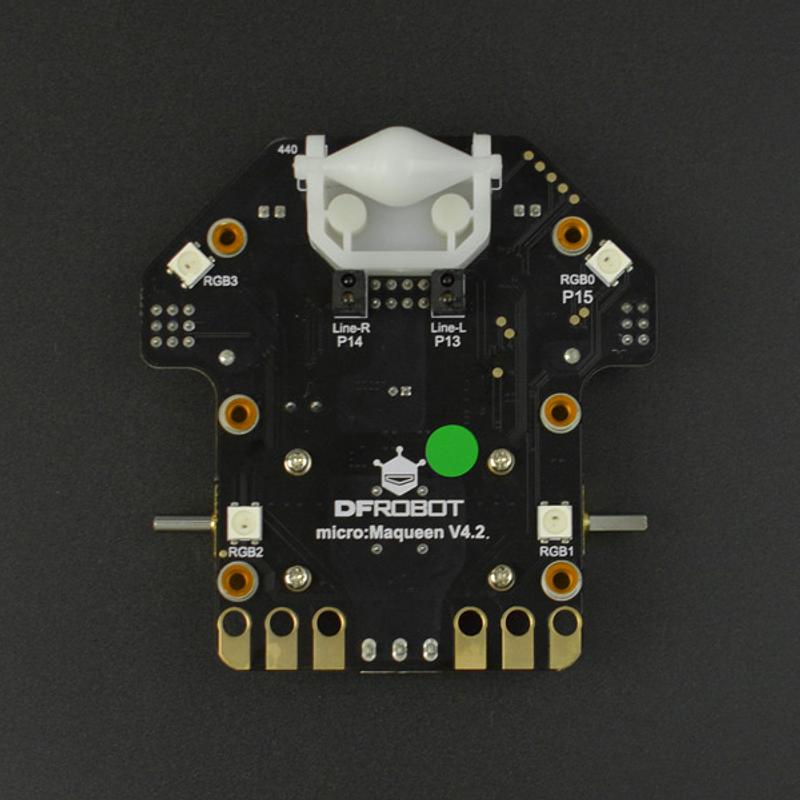

- RGB Ambient Light (16 million colors): x 4
- SR04, SR04P Ultrasonic Interface(5V): x 1
- I2C Interface (5V): x 1
- Gravity Extension Interfaces (P0, P1, P2): x 3

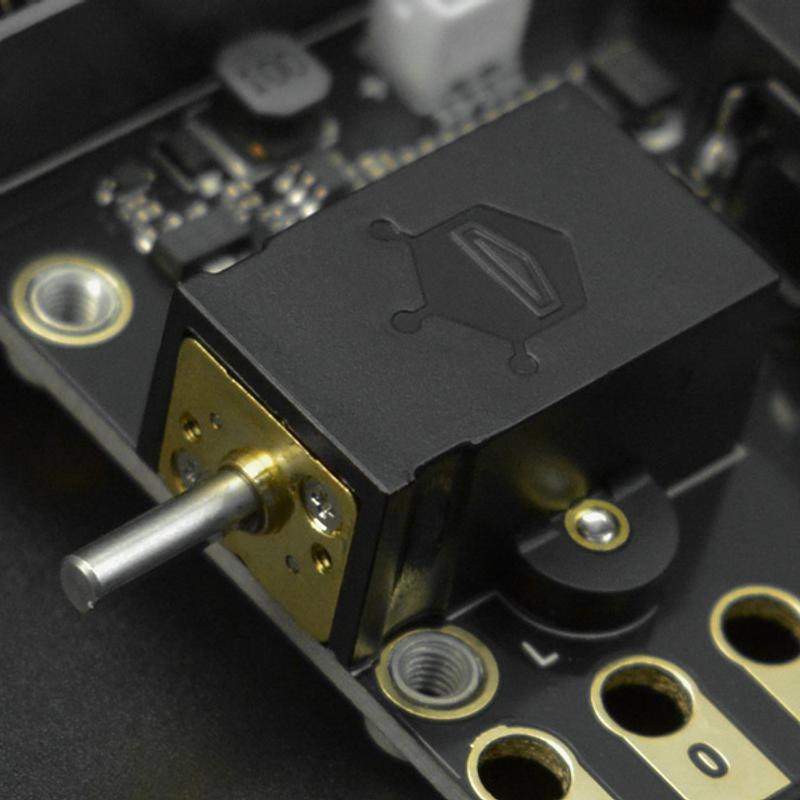

- N20 All-metal Gear Motor: x 2
- Motor Drive Mode: PWM motor drive
- Bracket and Protective Cover Extension M3 Screw Hole: x 6
- Programming Method: Makecode graphical programming, Mind+ graphical programming
- Dimension: 81mm x 85 mm x 44mm/3.19 x 3.35 x 1.73in
- Weight: 75.55g
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- I2C
- I2C is a two-wire communication bus used by many sensors and small modules. It matters because several I2C devices can share the same two wires, but each device needs a compatible address and your controller must support I2C.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- PWM
- Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.
- RGB
- Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.
- Type-C
- USB Type-C (USB-C) is a small, reversible USB connector used for charging, power, and data transfer on many modern devices. A Type-C port or plug indicates the cable and charger connection needed to power, charge, or communicate with a device.
