This board can be a cool clock, a timer, a Lucky Turntable Game, a wearable ornament, and an interactive colored pendant. With a mi...
Estimated Delivery
Arrives
Disclaimer
Secure checkout
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

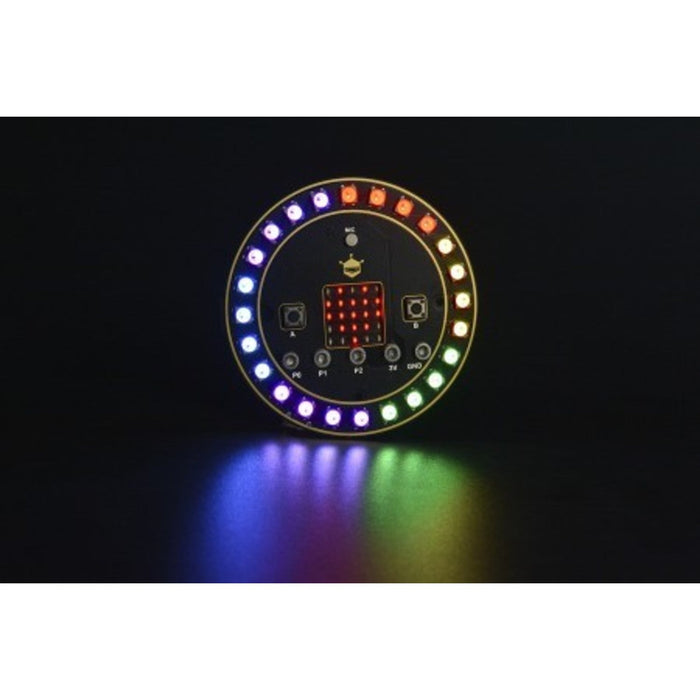

This board can be a cool clock, a timer, a Lucky Turntable Game, a wearable ornament, and an interactive colored pendant. With a micro:bit main board, this 24 RGB LEDs circular expansion board changes to an exquisite creator's piece. You can turn it into a tomato timer via the onboard buzzer, and turn it into a colorful music spectrometer through the onboard microphone; There are two external ports P0, P1 in reserve, so you can get more ways to play by connecting a large number of boson and gravity sensors. With different paper-cuts and acrylics, you can put on a variety of new clothes for the expansion board. For example, put on red Chinese knot for it in Chinese New Year, put on the cartoon face for it at Children's Day, put on the snow or Christmas tree for it at Christmas.
FEATURES
- Support USB interface power supply and direct use of power-bank power supply or USB computer power supply.
- Support PH2.0 interface power supply and the battery box or lithium battery power supply are both OK.
- 24 RGB single-line lights, 16 million colors free mixing
- Makecode graphical programming
- Onboard microphone and buzzer
- Leaded out P0 and P1 interfaces, and distribute with the connection line, support the boson expansion modules.
- Ultra-thin volume,more suitable for wearable and strap applications.
SPECIFICATION
- Supply Voltage:3.5~5V
- WS2812 Single-line RGB LEDs x 24
- Onboard buzzer x 1
- Onboard microphone x 1
- Number of interfaces: IO expansion board(P0,P1)x2, PH2.0 Power Interface x1, USB power Interface x1
DOCUMENTS
Jargon buster
Plain-language definitions for the technical terms used above.
- Boson
- Boson is a modular electronics system that uses plug-in cables and modules to connect sensors, buttons, displays, and controllers without much wiring. If a cable is marked for Boson, it is intended to fit that connector style and pin arrangement.
- Gravity
- Gravity is DFRobot’s plug-in connector system for sensors, motors and modules, using standard cables to reduce loose jumper wiring. It matters because Gravity-compatible parts can connect directly to these ports, while non-Gravity parts may need adapters or manual wiring.
- RGB
- Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.
- spectrometer
- A spectrometer measures light across different wavelength bands instead of giving only one brightness value. This matters when you need to compare colours, identify light sources, or measure reflected light more precisely than with a basic colour sensor.
