micro:bit Wonder Building Kit(Without micro:bit board)
Build robots and interactive models around a micro:bit using this brick-compatible kit from ElecFreaks. It pairs a Wukong expansion board with a large set of...
Get notified when back in stock

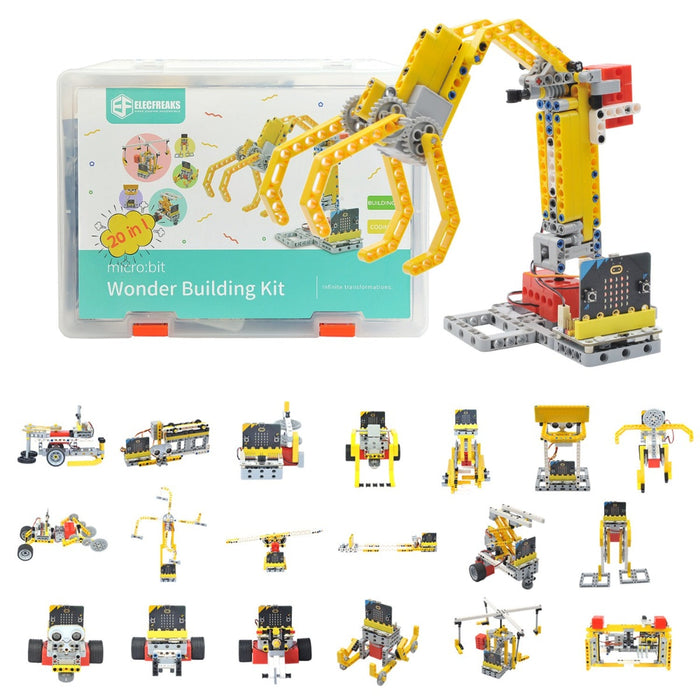

Build robots and interactive models around a micro:bit using this brick-compatible kit from ElecFreaks. It pairs a Wukong expansion board with a large set of bricks, motors and sensors for hands-on STEM projects.
The kit is designed for graphical programming, making it approachable for beginners while still leaving plenty of room for custom builds. It includes fun sensors such as a water level sensor, line-following sensor and Sonar:bit.
Twenty projects are provided to help you get started, and ElecFreaks also provides online learning material for the Wonder Building Kit. Please note that the micro:bit board is not included.
Features:
- Graphical program: Easy to start even for beginners
- Bountiful projects: The 20 projects are not all possibilities; you may create more projects with your imagination
- Expandable project ideas: More projects could be explored
- Fun sensors included: Line-tracking sensor, Sonar:bit and water level sensor
- Wukong expansion board: Small volume with sufficient energy
- Compatible with Lego: Similar size to micro:bit, with four fixed holes for Lego 7 x 5 bricks on the back side
Specifications:
- Sensors: Water level sensor, Line-following sensor, Sonar:bit
- Bricks: Over 400pcs
- Controlment: micro:bit & Wukong expansion board
- Communication: USB port
- Kit size: 250 x 190 x 100mm
- Kit weight: 1150g
- Motor drive: 2 ways(M1,M2)
- Servo drive: 8 ways(S0~S7)
- Projects: 20 projects are provided
- Power System: Click once to start,double-click to close
- Battery: 400mAh polymer lithium
- Working Voltage: 3.7v~5v
- Working Temp: -20°C~60°C
- Wukong expansion board size: 40 x 58mm
- Wukong expansion board weight: 41.6g
- Motor drive: 2 ways(M1,M2)
- Servo drive: 8 ways(S0~S7)
- IO Ports Lead-out: P0/P1/P2/P8/P12/P13/P14/P15/IIC
- Rainbow LED: LED0/LED1/LED2/LED3
- Atmosphere LEDs: 4 programmable LEDs
- Lego baseboard: Standard 7 x 5 baseboard
A great fit for classroom activities, beginner robotics, line-following builds, water level experiments and ultrasonic distance projects using the micro:bit ecosystem.
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- line-tracking sensor
- A line-tracking sensor detects contrast between a dark line and a lighter surface, usually using infrared light. It matters for robot activities where the robot follows a track, such as classroom challenges or competitions.
- servo
- A servo is a motor with built-in position control, usually told to move to a specific angle by a control signal. It matters when you need repeatable movement, such as steering, arms, flaps, or linkages, rather than continuous spinning.
