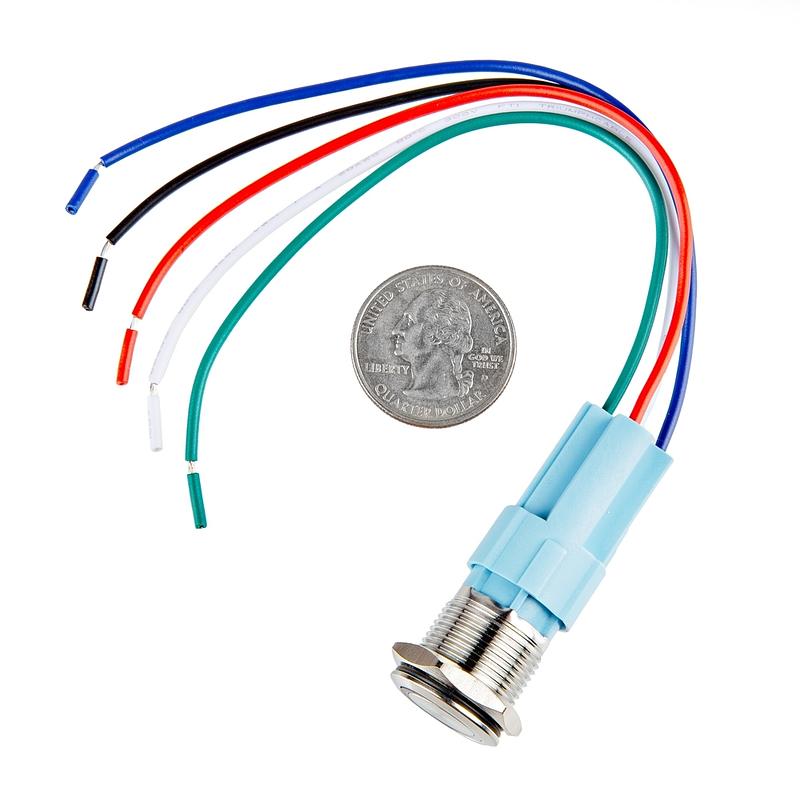

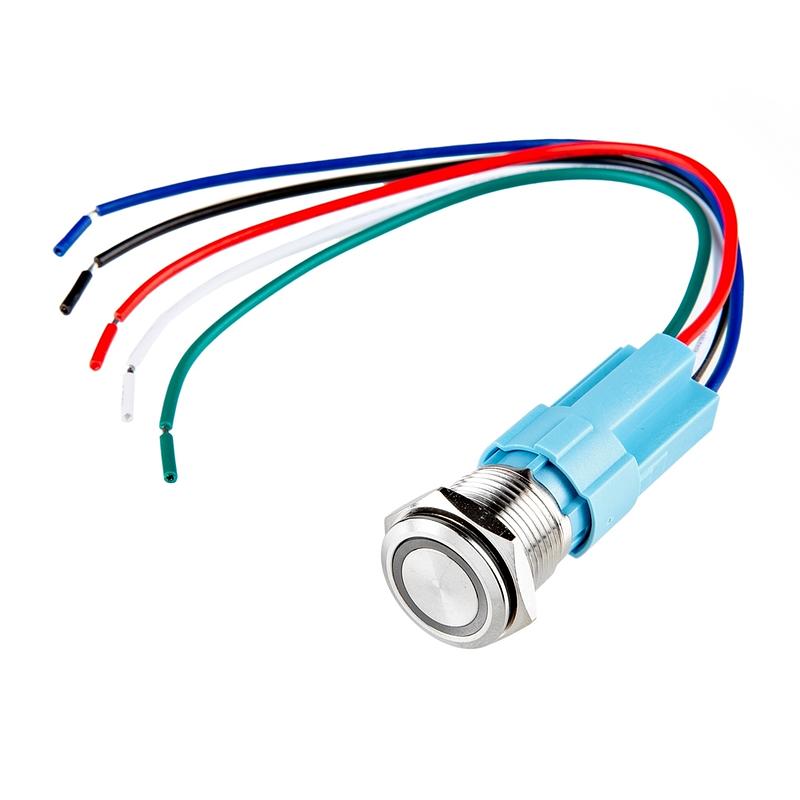

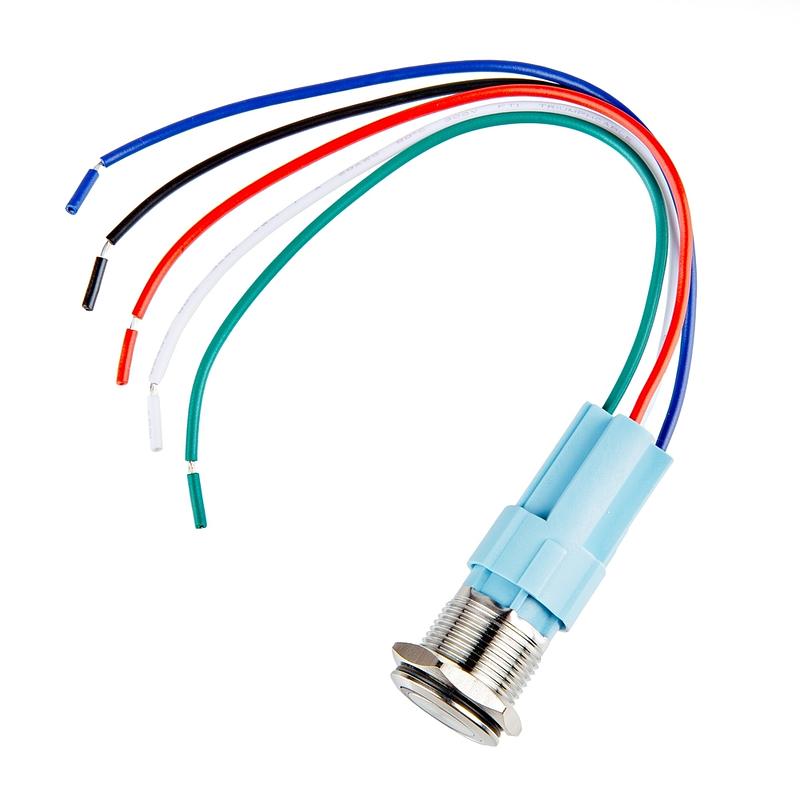

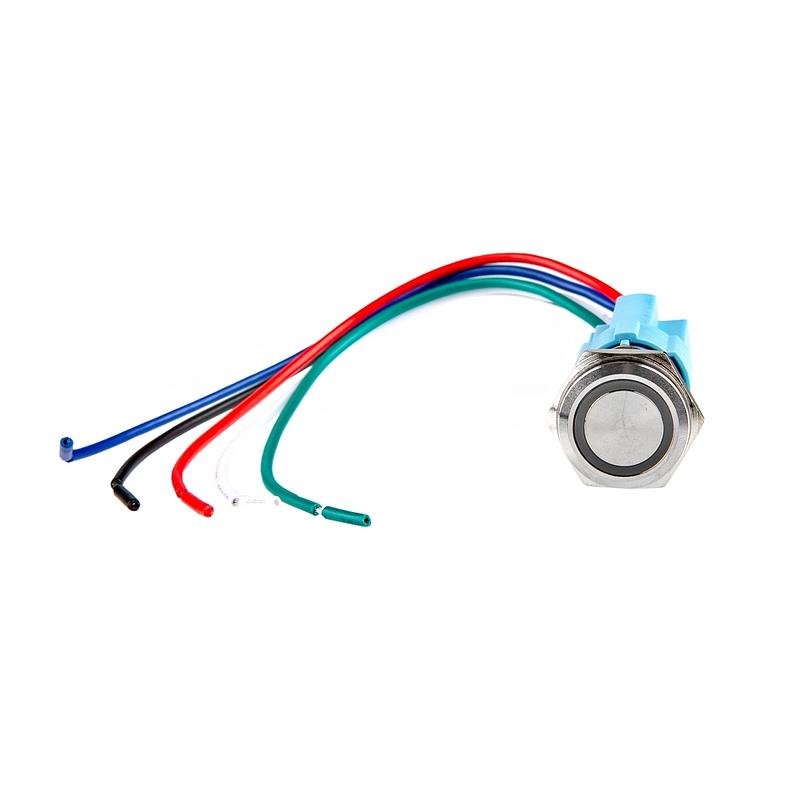

16mm Metal Latching Pushbutton with Yellow LED Ring & Wires
· MPN: COM-27246
Add a rugged, tidy control to your project with this small panel-mount metal pushbutton. It is a latching SPDT switch suited to basic on/off functions, with ...
Add a rugged, tidy control to your project with this small panel-mount metal pushbutton. It is a latching SPDT switch suited to basic on/off functions, with a stainless steel body and an illuminated yellow LED ring for a clean, professional-looking interface.
The 16mm threaded body with 1mm pitch is designed for compact panel mounting, while the tamper-resistant metal construction gives it a heavy-duty feel. The front face has an IP65 weatherproof rating for protection against dust and water splashing, such as rain.
Connection is via small solder lugs that are terminated with hookup wire, helping keep installation neat inside an enclosure. Supplier documentation includes a datasheet, a button sound MP3 and a button/switch basics guide.
Features:
- Stainless steel body: Rugged metal housing for a clean, heavy-duty interface.
- IP65 weatherproof rating: Front face is highly protected against dust and water splashing, such as rain.
- Tamper resistant: Designed for rugged panel interfaces.
- Latching operation type: Suitable for basic on/off functions.
- Yellow LED ring: Illuminated ring for visibility and status indication.
- Terminated with hookup wire: Supplied with hookup wire attached for installation.
- Visual indicator: The illuminated yellow LED ring operates on 5V, providing a clear status indicator or making the button easy to find in the dark.
- Weather resistance: An IP65 rating means the front face of the button is highly protected against dust and water splashing, such as rain.
- Compact mounting: The 16mm threaded body with 1mm pitch drops easily into standard panel cutouts without eating up valuable internal enclosure space.
Specifications:
- Switch type: SPDT
- Operation type: Latching
- Threading: 16mm
- Thread pitch: 1mm pitch
- Switch rating: Up to 3A and 250VAC
- LED rating: 5-12V
- LED ring operating voltage: 5V
- LED colour: Yellow
- Body material: Stainless Steel
- Weatherproof rating: IP65
- Mounting: Panel-mount
- Overall length (including leads): 1.5"
- Wire connector length: 5.5-inch
- Overall length: 7 inches
- Connection: Small solder lugs
- Termination: Hookup Wire
A solid choice for custom control panels, enclosures, dashboards and interactive projects needing a durable illuminated on/off control.
