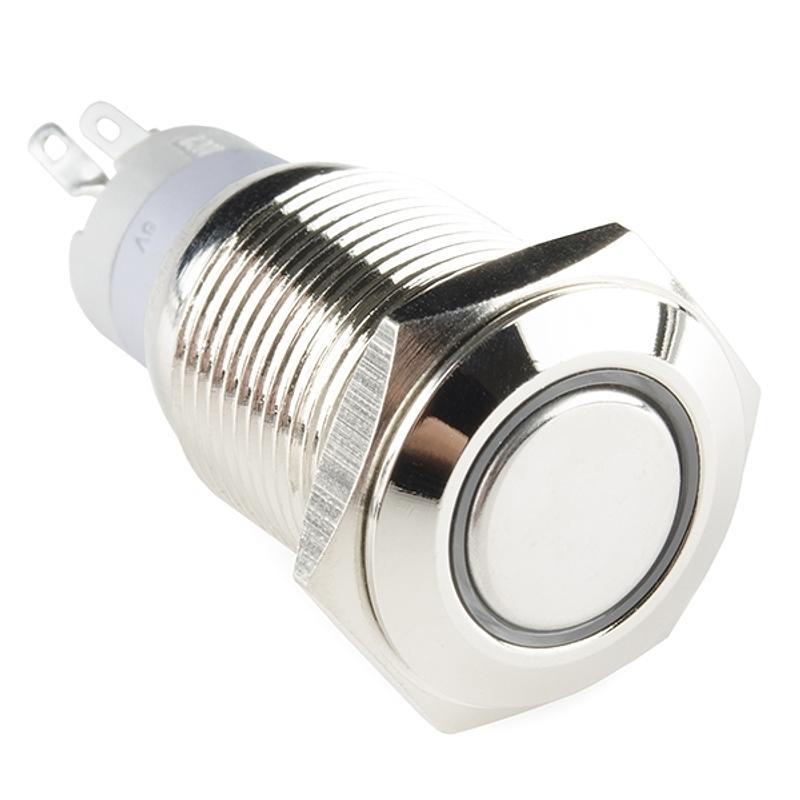

Metal Momentary Pushbutton with White LED Ring - 16mm
·
This 16mm momentary metal pushbutton gives custom panels, enclosures and interactive projects a clean, rugged interface with a polished stainless steel finis...
Get notified when back in stock
This 16mm momentary metal pushbutton gives custom panels, enclosures and interactive projects a clean, rugged interface with a polished stainless steel finish.
The switch is SPDT momentary, so it changes circuit state only while it is being pressed. A white illuminated LED ring provides a clear visual indicator and helps make the button easy to find in low light.
The threaded body suits standard 16mm panel cut-outs, while small solder lugs on the rear make it ready for secure wiring into your project.
Features:
- Visual indicator: Illuminated white LED ring operates at 5V
- Weather resistance: IP65 rating protects the front face against dust and water splashing, such as rain
- Compact mounting: 16mm threaded body with 1mm pitch
- Body: Stainless Steel Body
- Switch type: SPDT Momentary
- Contact rating: 3A @ 250V AC
- LED rating: 5V DC (White Ring)
- Waterproof rating: IP65 Waterproof Rating
Specifications:
- Body: Stainless Steel Body
- Switch Type: SPDT Momentary
- Contact Rating: 3A @ 250V AC
- LED Rating: 5V DC (White Ring)
- Waterproof Rating: IP65 Waterproof Rating
- Mounting Hole: 16mm
- Pitch Threading: 1mm
- Bezel Diameter: 18mm
- Overall Length: 31mm (not including leads)
A solid choice for dashboards, control panels, workshop gear and outdoor-facing projects where a durable momentary input and visible status ring are useful.
Jargon buster
Plain-language definitions for the technical terms used above.
- DC
- DC means direct current, where electricity flows in one constant direction, as supplied by batteries, USB ports and many plug-pack power supplies. When a product specifies DC, it runs from a DC supply rather than mains AC, so you need to provide the correct voltage and polarity.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
