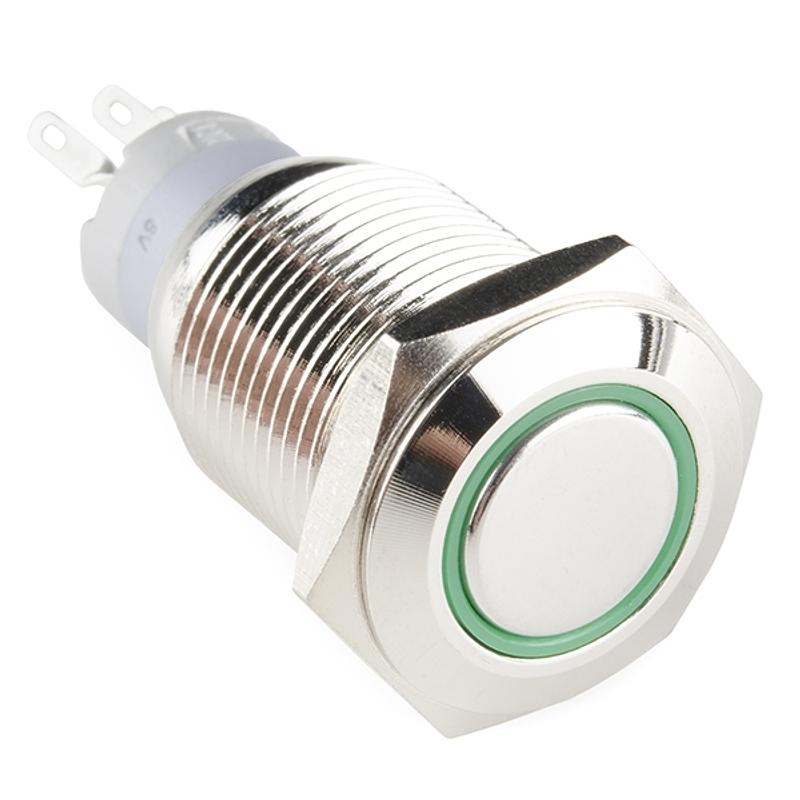

Metal Momentary Pushbutton with Green LED Ring - 16mm

Add a sturdy, polished control to your project with this 16mm metal momentary pushbutton. The stainless steel body gives custom panels, enclosures and interactive builds a more rugged feel than a basic plastic switch.

The switch is SPDT and momentary, so it changes circuit state only while it is being pressed. A green illuminated ring runs from 5V DC, making it useful as a status indicator or simply helping the button stand out in low light.

The front face is rated IP65 for protection against dust and splashing water, and the threaded 16mm body is designed for compact panel mounting. Small solder lugs on the back make it ready to wire into your circuit.

Features:

• Stainless steel body: Heavy-duty metal construction for a professional panel finish.
• Switch type: SPDT momentary action for input functions that are active only while pressed.
• Visual indicator: Illuminated green LED ring operates at 5V.
• Weather resistance: IP65 rating protects the front face against dust and water splashing, such as rain.
• Compact mounting: 16mm threaded body with 1mm pitch drops into standard panel cutouts.
• Wiring: Small solder lugs on the back for secure wiring.

Specifications:

• Body: Stainless Steel Body
• Switch Type: SPDT Momentary
• Contact Rating: 3A @ 250V AC
• LED Rating: 5V DC (Green Ring)
• Waterproof Rating: IP65 Waterproof Rating
• Mounting Hole: 16mm
• Pitch Threading: 1mm
• Bezel Diameter: 18mm
• Overall Length: 31mm (not including leads)

A good fit for control panels, dashboards, workshop equipment, interactive exhibits and other projects that need a durable, illuminated momentary input.
