JST-SH Horizontal 4-Pin SMD Connector - 1.0mm Pitch

Name: JST-SH Horizontal 4-Pin SMD Connector - 1.0mm Pitch
Brand: SparkFun
SKU: SF-PRT-10208
Price: 1.1 AUD
Availability: InStock

· MPN: PRT-10208

Headers & Connectors

$1.10 |

In stock at supplier

No reviews yet

This tiny four-pin connector is a compact option when you need a very small board-to-cable connection. It uses the smaller JST-SH style rather than the large...

Add to Wishlist

Compare

Estimated Delivery

Arrives

Disclaimer

View Markdown

Secure checkout

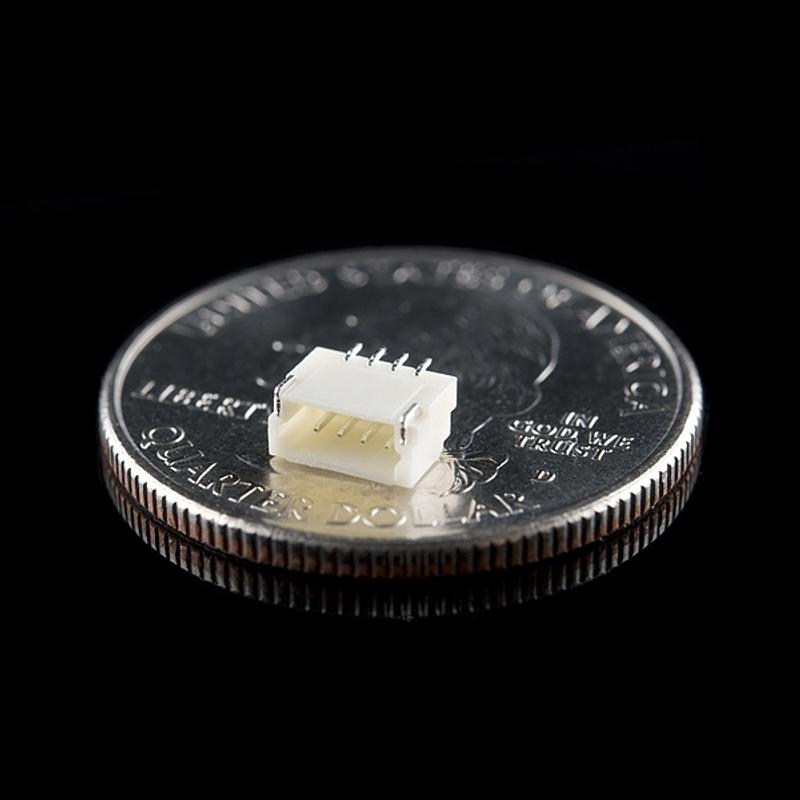

This tiny four-pin connector is a compact option when you need a very small board-to-cable connection. It uses the smaller JST-SH style rather than the larger JST connectors commonly found on many breakout boards.

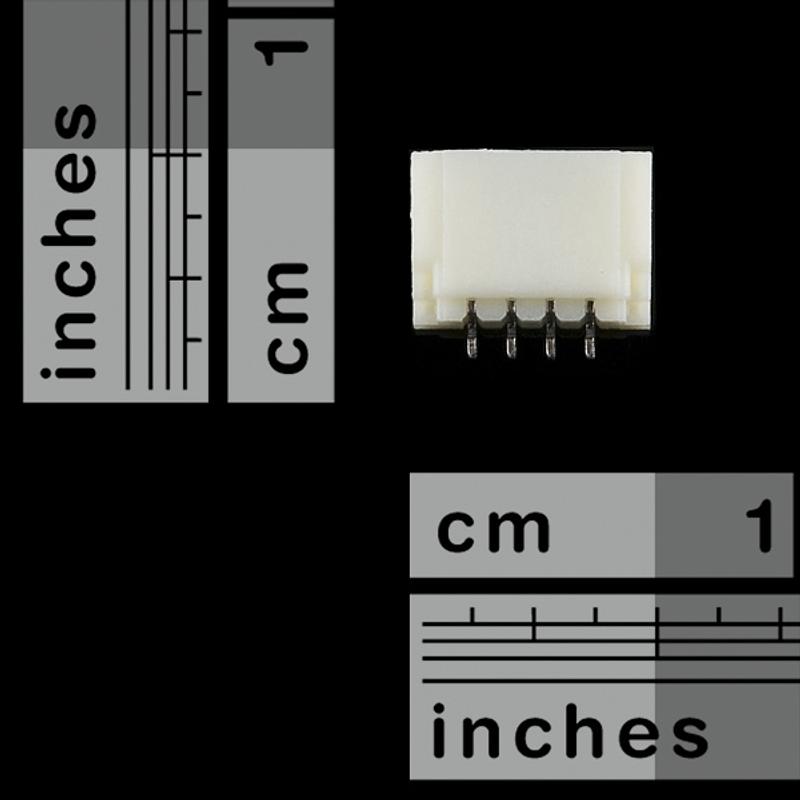

The connector has a horizontal orientation and is intended for surface-mount installation, making it suitable for low-profile PCB designs where space is tight. A drawing is available from the supplier documentation for PCB footprint and mechanical reference.

Specifications:

Connector type: JST-SH
Number of pins: 4-Pin
Pitch: 1.0mm
Orientation: Horizontal
Mounting type: SMD

Useful for compact sensor leads, miniature peripherals, and custom boards that need a small JST-SH style connection.

Jargon buster

Plain-language definitions for the technical terms used above.

breakout: A breakout board carries a small or fine-pitched component and brings its connections out to standard, breadboard- and header-friendly pins. Describing a part as a breakout means it can be wired into a project without soldering directly to the component's tiny contacts.
PCB: A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
SMD: SMD means surface-mount device, a component style designed to be soldered directly onto the surface of a circuit board rather than through holes. SMD parts are compact and mounted flat on the board, which suits smaller and mass-produced designs.
