JST SH Compatible 1mm Pitch 3-pin Plug-Plug Cable
· MPN: ADA6404
All Products
Headers & Connectors
New Arrivals
Adafruit
Brands and Manufacturers
Jumpers & Wires
Prototyping
Components
Prototyping & Wiring
$2.90
|
Out of stock
If you fancy connecting to anything else with a JST SH compatible 3-pin connector, this cable will do the trick. For example, our NeoPixel JST Breakout board...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

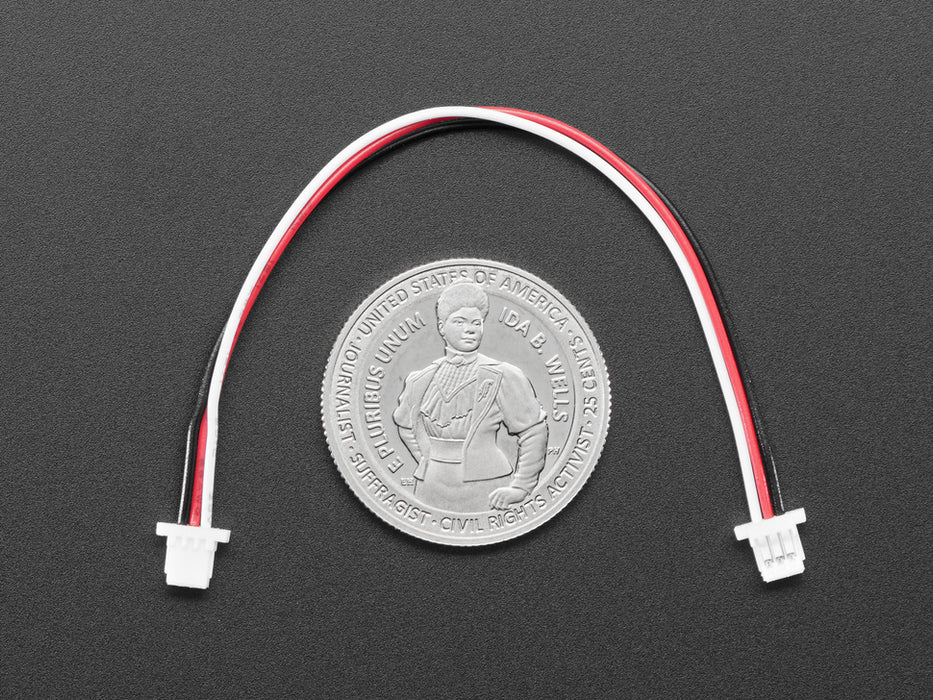

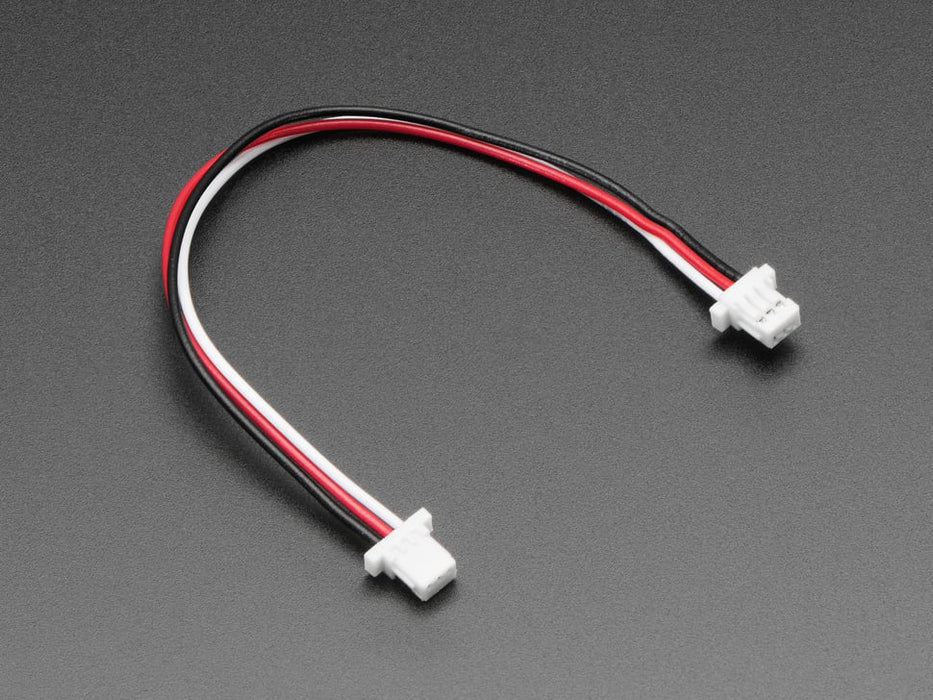

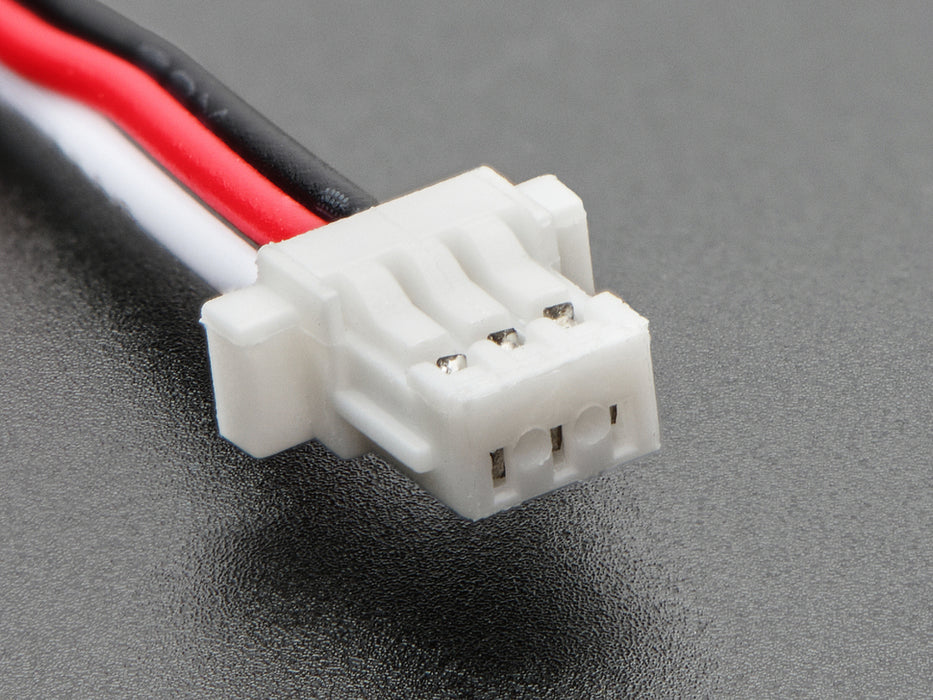

If you fancy connecting to anything else with a JST SH compatible 3-pin connector, this cable will do the trick. For example, our NeoPixel JST Breakout boards, or UPDI Friend, or Sparkle Motion, or other boards we have with JST SH connectors on them for simple digital/analog IO. It has a 1mm pitch JST SH connector on both ends - perfect for 'chaining' boards together.
You can also use these on the debug port on a Pico WH, or the two ports on a Pico Debug Probe. Note that the colors we got are somewhat matchy with our '2mm PH' sized STEMMA cables, so if you are using them for the Debug Probe port, the colors will be as follows:
- White - SWCLK or UART TX
- Red - Ground (yeah, we know this isn't ideal)
- Black - SWDIO or UART RX
